Fresnelfactory Fresnel Lens, Ls18-03 Downlight Beam Angle Led Light Lenses

US $22.00

Suwon, Gyeonggi-do, Korea, South
Jan 29th

Open on mobile:
QR code

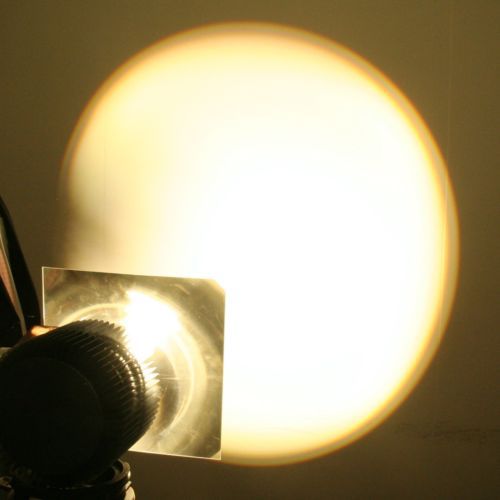

Technical information Focal Length (mm) = 18 Size (mm) : ?38 Groove Pitch (mm) :0.3 Thickness (mm) : 2 Material : PMMA Type : LED LED type Fresnel lens such as magnifiers, lighting equipment, 3D display is being used in a variety of areas. Groove(Prism) on the opposite side condensing (A flat surface condensing) Also we design to use more 3mm Optical PMMA for loner life time and to have 0.5 ~ 1.0mm groove pitch for higher solar concentration. (If groove pitch is density, then quality of image that is maginifed is clearer.If groove pitch is width, then efficince of concentration of light is higher.) ? Refraction of light with Conve and Concave lens ? Cone lux diagram (50, 90, 120?) The basic functions of the lens to refract light, can spreading or condensing the light emitted from the light source. Fresnel lens a lighter and thin than convex(concave) lens. So, when the Fresnel lens used in lighting equipment to make a lighter, smaller apparatus. ? Light distribution changes video ? Fresnel lens concentration rate Concentration rate is ratio between area of solar cell and area of Fresnel lens. Ex) Fresnel lens size 120*120mm -> area of lens is 14400mm2 Solar cell size 5*5mm -> area of solar cell is 25mm2 Concentration rate is 14400/25 = 576 times However because of transmittance rate and other obstructs, multiple 80% is reasonable. Adjusted concentration rate is (14400*0.8)/25 = 460 times ? Using a Fresnel lens solar concentrator ? Efficiency and F number F=focal legnth/Diameter From F1.2, the efficency is dramatically droped. It shows there is a certain ratio between focal length of fresnel and diameter of lens. Bigger size Lens is not always the answer. ? Comparing transmittance of SOG(Silicone On Glass) and PMMA Our Optical PMMA has higher transmitive than glass, which is 92~95%, and absorption in visual ray is almost 0% We are happy to work with individual inventor and developing company. Custom Design is available. ? Maximun capacity Max size : ?1600mm Groove Pitch : 0.07~2mm Thickness : 0.4~10mm According to our customer’s needs, we recommend ideal solution from our 106 existing products, which are increasing in diversity. We are prepared to take from design to prototype to volume production. Contact Tel : +82 70-7605-1652 English webpage : www.FresnelFatory.com Please visit our Developed Case List and see our achievements. http://fresnelfactory.blogspot.kr/

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	FresnelFactory
Country of Manufacture	Korea, Republic of
Model	LS18-03
