Fresnelfactory Fresnel Lens,pd12-12010 Pir Alarm Sensor Fresnel Lens Motion Pir

US $8.00

  • Suwon, Gyeonggi-do, Korea, South
  • Jan 29th

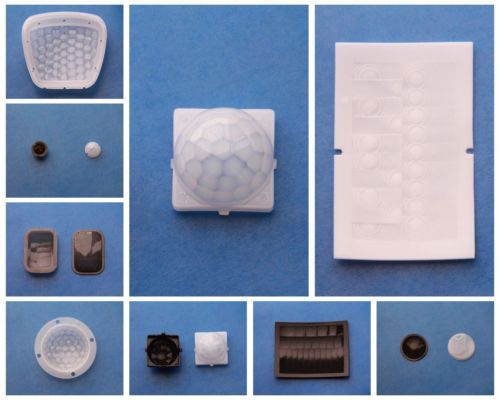

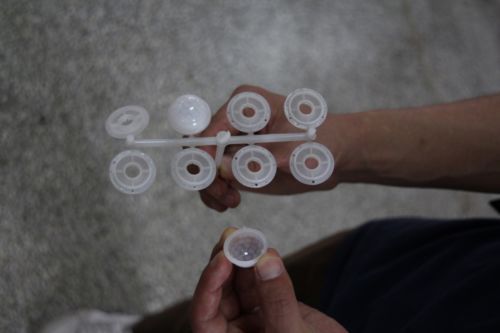

Infrared Fresnel lens is primarily used to transmit infrared light for motion detector use. Passive Infrared PIR Fresnel lenses are molded in a flexible, 0.457mm thick, High Density PE.   Advantages of this product are: least absorption loss in the 8-14 micron region, extremely thin with consistent thickness across the lens, large apertures and minimal thermal expansion. The design of an infrared-transmitting Fresnel lens involves many complex considerations. Unlike other custom design of our products, we can not afford design service for PIR Fresnel items.       PD12-12010 Overall size: 24x24mm Focal length: 7.5mm Detectable distance: 5m Viewing angle: 120°     PD05-9005 Overall size: 17mm Detectable distance: 5m Viewing angle: 90°   PD05-12005_B&W Overall size: 11.8mm Detectable distance: 5m Viewing angle: 120°   PD06-6005 Overall size: 6mm Detectable distance: 5m Viewing angle: 60°   PD06-12002B Overall size: 13.34mm Detectable distance: 5m Viewing angle: 120°   PD06-12005 Overall size: 16mm Detectable distance: 5m Viewing angle: 120°   PD06-12008 Overall size: 14mm Detectable distance: 8m Viewing angle: 120°   PD09-12008_B&W Overall size: 17.8mm Detectable distance: 8m Viewing angle: 120°   PD11-12010 Overall size: 23mm Detectable distance: 10m Viewing angle: 120°   PD12-11607 Overall size: 23.9mm Detectable distance: 7m Viewing angle: 116°   PD12-11612 Overall size: 23.5mm Detectable distance: 12m Viewing angle: 116°   PD12-12010 Overall size: 24x24mm Detectable distance: 5m Viewing angle: 120°   PD15-12010 Overall size: 35.7mm Detectable distance: 10m Viewing angle: 120°   PD15-14006 Overall size: 28mm Detectable distance: 6m Viewing angle: 140°   PD15-36005A Overall size: 44.5mm Detectable distance: 5m Viewing angle: 360°   PD15-36005B Overall size: 44.5mm Detectable distance: 5m Viewing angle: 360°   PD15-36007 Overall size: 49mm Detectable distance: 7m Viewing angle: 360°   PD15-36010 Overall size: 43mm Detectable distance: 10m Viewing angle: 360°   PD15-36010P Overall size: 45.7mm Detectable distance: 10m Viewing angle: 360°   PD23-6020 Overall size: 35x25mm Detectable distance: 20m Viewing angle: 60°   PD30 Overall size: 62.2x52mm Detectable distance: m Viewing angle: °   PD30-0000 Overall size: 64x53.6mm Detectable distance: m Viewing angle: °   PD30-36010 Overall size: 76.58mm Detectable distance: 10m Viewing angle: 360°   PD50-12008 Overall size: 100mm Detectable distance: 8m Viewing angle: 120°   PD55-14006 Overall size: 13.6mm Detectable distance: 6m Viewing angle: 140°   PD60-12008 Overall size: 12.7mm Detectable distance: 8m Viewing angle: 120°   PD75-12005A Overall size: 21.71mm Detectable distance: 5m Viewing angle: 120°   PD75-12005B Overall size: 19.77mm Detectable distance: 5m Viewing angle: 120°   PD75-12005C Overall size: 19mm Detectable distance: 5m Viewing angle: 120°   PD076-9005 Overall size: 20.7mm Detectable distance: 5m Viewing angle: 90°   PD105-10005 Overall size: 22.7mm Detectable distance: 5m Viewing angle: 100°   PD105-10010 Overall size: 23.4mm Detectable distance: 10m Viewing angle: 360°   PD105-10010F Overall size: 23.3x23.3mm Detectable distance: 10m Viewing angle: 100°   PD105-10010S Overall size: 23.4x23.4mm Detectable distance: 10m Viewing angle: 100°   PD115-12010 Overall size: 26mm Detectable distance: 10m Viewing angle: 120°   PD115-12010_hat Overall size: 26mm Detectable distance: 10m Viewing angle: 120°   PD116-12010 Overall size: 23.3mm Detectable distance: 5m Viewing angle: 120°   PD175-36005 Overall size: 45mm Detectable distance: 5m Viewing angle: 360°   PF08-10B Overall size: 12mm Detectable distance: 10m Viewing angle: °   PF16-12012 Overall size: 62x25mm Detectable distance: 12m Viewing angle: 120°   PF20-10 Overall size: 22mm Detectable distance: 10m Viewing angle: °   PF20-10B Overall size: 20mm Detectable distance: 10m Viewing angle: °   PF20-10W Overall size: 22.3mm Detectable distance: 10m Viewing angle: °   PF20-10WS Overall size: 20mm Detectable distance: 10m Viewing angle: 120°   PF20-3027 Overall size: *38.1x*32.5mm Detectable distance: 27m Viewing angle: 30°   PF20-06015 Overall size: 35mm Detectable distance: 15m Viewing angle: 60°   PF20-8907 Overall size: 39x25mm Detectable distance: 7m Viewing angle: 89°   PF21-12015 Overall size: 78x38mm Detectable distance: 15m Viewing angle: 120°   PF22-10010 Overall size: 57x36mm Detectable distance: 10m Viewing angle: 100°   PF23-6020 Overall size: 39x25mm Detectable distance: 20m Viewing angle: 60°   PF23-11012 Overall size: 56.7x35.7mm Detectable distance: 12m Viewing angle: 110°   PF25-9010 Overall size: 53.5x34mm Detectable distance: 10m Viewing angle: 90°   PF25-12012 Overall size: 92.3x40mm Detectable distance: 12m Viewing angle: 120°   PF28 Overall size:19mm Detectable distance: m Viewing angle: °   PF28-10W Overall size: 20mm Detectable distance: 10m Viewing angle: °   PF30-12012 Overall size: 59.5x39mm Detectable distance: 12m Viewing angle: 120°   PF30-12012C Overall size: 43.2x19.7mm Detectable distance: 12m Viewing angle: 120°   PF30-12012P Overall size: 59.5x39mm Detectable distance: 12m Viewing angle: 120°   PF30-12012S Overall size: 46x20mm Detectable distance: 12m Viewing angle: 120°   PF31-12012 Overall size: 60x52mm Detectable distance: 12m Viewing angle: 120°   PF36-10W Overall size: 20mm Detectable distance: 10m Viewing angle: °   PF297-79810 Overall size: 58x45mm Detectable distance: 10m Viewing angle: 79.8°   PF297-79810R Overall size: 56.8x44.6mm Detectable distance: 10m Viewing angle: 79.8°   PF305-8324 Overall size: 61x42.7mm Detectable distance: 24m Viewing angle: 83°   PF03-3025 Overall size: 17mm Detectable distance: 25m Viewing angle: 30°   PD17-36005 Overall size: 35.6mm Detectable distance: 5m Viewing angle: 360°   PD_1 Overall size: 64.8x59.7mm Detectable distance: m Viewing angle: °             According to our customer’s needs, we recommend ideal solution from our 106 existing products, which are increasing in diversity.  We are prepared to take from design to prototype to volume production. Contact  Tel : +82 70-7605-1652 English webpage : www.FresnelFatory.com Please visit our Developed Case List and see our achievements. http://fresnelfactory.blogspot.kr/
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand FresnelFactory
Country of Manufacture Korea, Republic of
Model PD12-12010
