Fujikura 80s Fusion Splicer “kit-a” Plus

US $8,449.00

HK, Hong Kong
Mar 2nd

Open on mobile:
QR code

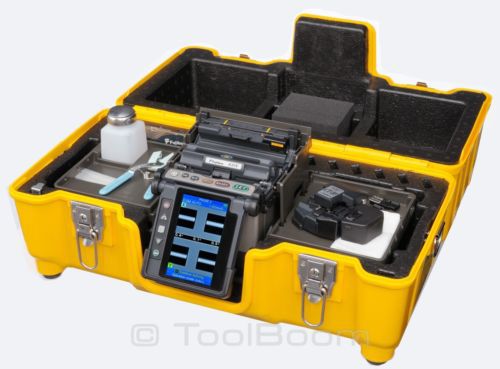

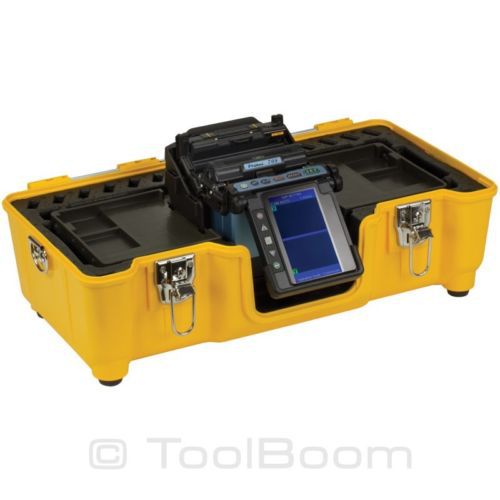

Fujikura 80S Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc. Fujikura 80S model is successor of the famous series of splicers: Fujikura FSM-60S and FSM-50S. The new design streamlines the steps required to complete splices, resulting in greater productivity. "Configurable automation" features allow you to customize the operation of the machine to best suit your particular splicing technique and process. Splicing takes only 7 seconds, and heating takes only 14 seconds. The device is optimized for splicing under severe weather conditions, it is protected from stress and shock. It may be powered from 200 V AC, or using a battery (included). For user comfort the package contains a convenient working table, where you may place the needed tools: a cleaver, a stripper, sleeves, etc. Features Splices all known types of fibers. Fiber core alignment. Typical average splice loss for single mode cable with G.652D fiber is only 0.02 dB. Reduced splicing time – 7 seconds only. Heating time – 14 seconds only. Increased electrode lifetime – up to 3000 splicing cucles with one set, without splicing quality loss. Battery life increased up to 200 full splicing/heating cycles. Rotary color anti-glare LCD 4.73", high contrast and vividness. Simultaneous display of X and Y axes. May splice SC, LC, MPO connectors. Automatic: wind-protective lid, heater, fiber holders. Increased water, dust and shock resistance, may be used under severe environment conditions. Automatic arc calibration. Battery BTR-09 is included. New comfortable carrying case, optimized for quick operation start. The case may be used as a working table. Operation manual is installed into the splicer. Software update option. 2 years of full warranty with the device replacement. Technical Specifications Splicing / Heating Typical Splicing Time 7 sec (for SM) Typical Heating Time 14 sec (for 60 mm sleeves) Applicable Fibers SMF (ITU-T G.652) MMF (ITU-T G.651) DSF (ITU-T G.653) NZDSF (ITU-TG.655) CSF (ITU-T G.654) Fiber with low sensitivity to bends (ITU-T G.657) Erbium-doped fiber Cladding Diameter 80 ?m – 150 ?m Coating Diameter 100 ?m – 1,000 ?m Fiber Cleave Length 5 – 16 mm Typical Average Splice Loss 0,02 dB (SMF) 0,01 dB (mmF) 0,04 dB (DSF) 0,04 dB (NZDSF) Splice Loss Estimate core angular offset fiber deformation Return Loss

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Fujikura
Country/Region of Manufacture	Japan
Model	80S Kit-A Plus
Warranty	24 month
UPC	2100000206858
