Fullset Cnc3020 800w Spindle Cnc Machine Router Engraver W/ Mpg +4axes Tailstock

US $1,899.00

default, default, Hong Kong
Jan 30th

Open on mobile:
QR code

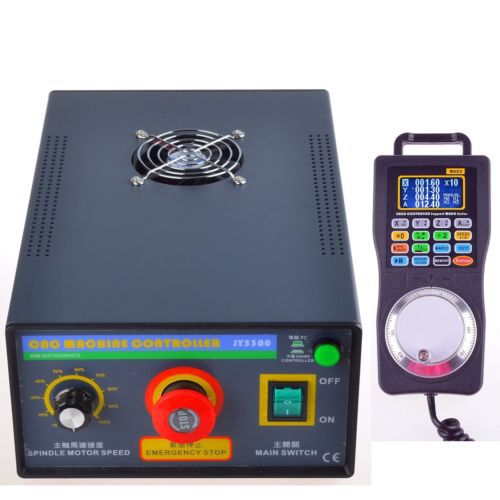

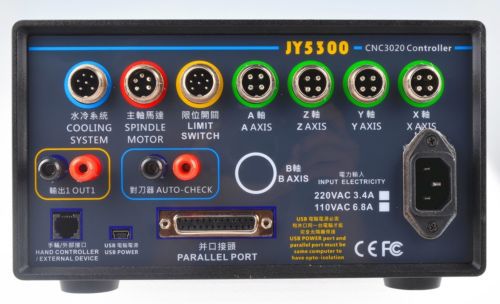

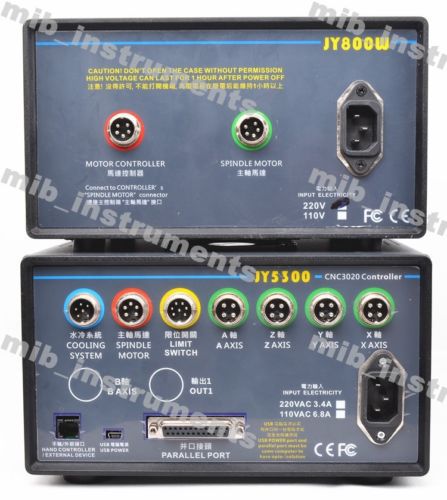

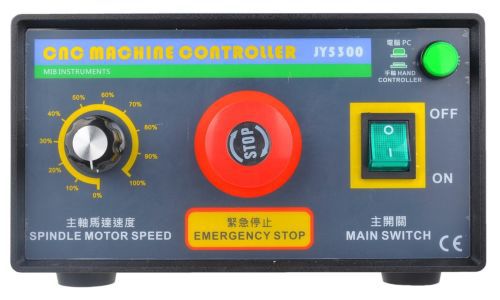

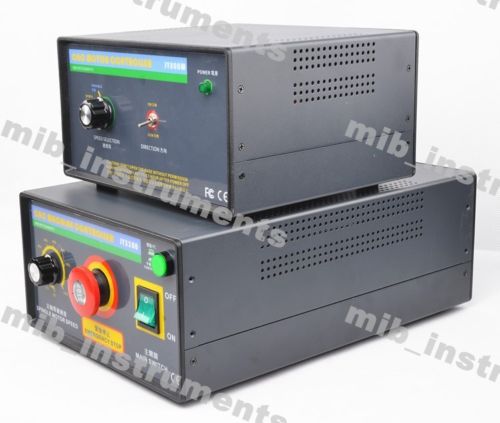

CNC 3020-800W CNC Machine Router Engraver with 800W, 24KRPM Spindle Motor MIB-INSTRUMENTS *** NEED 5 to 8 Business Day To Prepare and Testing***** Please contact us before purchase: cnc@mib-instruments.com We will calculate the DHL ship fee to your address. Download Manual: Manual for CNC3020 V2 Machine Manual for JY5300-2 Controller Box and MHC2 Pendant NEW RELEASED FUNCTION AT SEP 2013: 1) USE Z shape arm (16mm Aluminium), can use the whole 300mm table and more reasonable on mechanical of the gravity weight of the motor. 2) BACK AL Panel enhance the strength 3) Front black plastic panel prevent dust and particle inside the screw part 4) Handwheel can connect with MACH3 by modbus 5) Can upgrade to 3D printer by just add a 3d extruder 6) Handwheel can command to set microstepping and current for each axis "Can Buy It Now in my ebay store" MIB MINI CNC 3020 is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. MINI CNC 3020 is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models,RC Model parts,etc. Small size CNC can let you work in home or office.+ 1 Year Warranty for Mechanical Parts Specification Effective Traveling Range 200(X) X 300(Y) X100(Z) mm Machine Dimension 410(X)*540(Y)*440(Z) mm Working Table 240(X)*440(Y)*20(Z) mm Frame Material Aluminum Alloy 6061/ 6063 Driving Core X: 1605 ball screws Y: 1605 ball screws Z: 1605 ball screws Sliding Core X: Dia. 16mm Y: Dia. 16mm Z: Dia. 12mm Limit Switch X, Y, Z (2 switch per axis) Stepping Motor 57 2 phase 3A 1.8 Degree (Brand New) Spindle Motor 800W High Speed motor (Brand New) Principal Axis Collet ER11 / 3.175mm Spindle Speed PWM up to 24000RPM Repeatability 0.05mm Max No Loading speed (X, Y, Z) 2500mm / min Spindle Precision (Beat error) 0.01 - 0.04mm Carving Code G code/TAB files/nc file/NCC files PC connection Parallel Port OS Win2000 XP (Support Mach2 Mach3) Carving Speed Depend on material Weight 30KG CNC Controller Input 110V to 220V (Switch interchange, we will changed in factory according to your country) Front Panel Switch Emergency Stop Limit Switch Enable/Disable Power ON/ OFF Spindle Speed control Limit Switch Connector Yes, support up to 6 limit switch Motor Connector Paraellel Port Motor Connector X, Y, Z, Spindle Motor Support Control Software Mach3,EMC2 (Setting on Mach3 will be provided after purchase) The software is not include, it is a shareware that you can download / purchase from their official website. http://www.machsupport.com/ Thermal Control 24V Fan for cooling Regulated Power Supply Spindle Motor: 800W water cooling spindle, drive by JY800 (Variable frequency Driver) Stepper Controller: 24V 10A 240W Weight: 18Kg JY5300 Controller Specification Item Description Parameter Remark Socket Number of Slot Stepper Driver Board 5 *Standard package with 4 Stepper Driver Board DC Spindle Motor Driver Board 1 External Controller 1 PC Parallel Port 1 Stepper Motor Driver Board Operating Voltage 24DCV Maximum Current 3DCA Micro-Stepping divider 1:8 Hand Wheel Control Maximum Acceleration 200mm/s2 320 Steps per mm Maximum Deceleration 200mm/s2 Maximum Speed 3500mm/min MACH3 Computer Control Maximum Acceleration 300 mm/s2 Maximum Deceleration 300 mm/s2 Maximum Speed 3500mm/min Stepper Motion Memory Number of Memory Region 4 One Region Max Record Time 30minutes Maximum Memory Speed 3500mm/min DC Spindle Motor Driver Board Operating Voltage 48DCV Maximum Current 7DCA PWM Speed Control 0 to 100% 1KHz Constant Speed Tolerance 5 to 15% Tested in 300W 12000RPM DC Motor Maximum Acceleration ~3000RPM/s Maximum Deceleration ~3000RPM/s Input Electricity 110/220VAC 50/60Hz Hand Wheel LCD Display Dot Matrix 128X64 with backlight Hand Wheel Encoder 100 PPR Number of Axis 4 Axis Size Controller Box (LXWXH)mm 330X220X120 Weight net weight (kg) 4.3 First Installation in 30 minutes: 1. Locating the CNC machine on stable desk.2.Make sure that your computer has a on-board parallel port output. 3. Install control software and Drive such as the MACH 3 or EMC2 (You can search easy in Google) 4.Connect the X, Y, Z and Limit Switch socket from machine to CNC controller, connect power cord (We have already set the right voltage according your country). Connect parallel port from 5. Follow our instruction on the MACH3 setting. Package Include: 1) CNC and Controller Handwheel is not included, you can check below optional purchase Item Description Qty Tool Kit Pack 0.2mm V cut graver 1 0.3mm V cut graver 1 1mm drill 1 2mm flat milling graver 1 3.175mm flat milling graver 1 Mounting Clips 2 Spindle Motor opening tools 2 Carbon brush (Spindle Motor) 1 CNC Router Router Frame (Sliver) with Motors 1 Control Box JY5300-2 CNC controller box 1 Power Cord According to your country 1 Parallel Cable 1 Optional Purchase: 1) Desktop Clamp additional cost is USD80 / pcs. YOU CAN UPGRADE TO 3D PRINTING You may be interested in converting your cnc to 3d printer too, we can provide the kits: Manual For CNC 3D printer kit: Manual for CNC To 3D Printer Manual for MC3D 3D Extruder Manual for M3D-H2 Heater Controller Manual for Heatbed First Installation in 45 minutes: 1.Assembling CNC (Separated to 2 part for shipping, just screw up 4 screws then can be OK) and locating the CNC machine on stable desk. 2.Make sure that your computer has a on-board parallel port output. 3. Install control software and Drive such as the MACH 3 or EMC2 (You can search easy in Google) 4.Connect the X, Y, Z and Limit Switch socket from machine to CNC controller, connect power cord (We have already set the right voltage according your country). Connect parallel port from 5. Install the water cooling system and fill with coolant water. 6. Follow our instruction on the MACH3 setting. PACKAGE INCLUDED: 1) CNC 3020 - 800W 4-axes machine, (the table clamp on the photo is not included) 2) 4-axis contol box JY5300, (the PC and the LCD on the photo are not included) 3) Variable frequency Drive Box JY800W. 4) Tail stock as shown in photo 5) remote controller MPG MHC2 x 1pc 6) Std accessory - 5pcs drill bits and wrench Payment Shipping We accept Paypal, credit card through Paypal. Buyer may need to pay for import tax depend on your country's custom. You can ask us for more detail. We ship to international and item will be shipped by airmail from HongKong. Items are shipped within 2-3 business day after receive cleared payment. An additional USD8 for insurance Most item will arrive within 8-14 business days. It depend on your location. In some case, ship to some countries will take over 3 weeks, especially brazil, Italy and France . eBay Cross Border Trade powered by Channel Effect On Aug-12-14 at 02:43:57 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	MIB INSTRUMENTS
Country of Manufacture	HONG KONG
Model	CNC3020-800
