Fw Bell Model 5080 Gauss/teslameter With Zero Gauss Chamber & Case

US $650

New Ipswich, New Hampshire, United States
Jun 9th

Open on mobile:
QR code

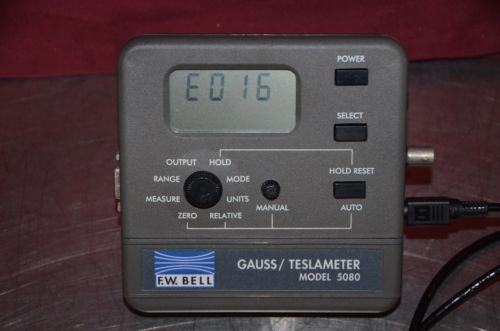

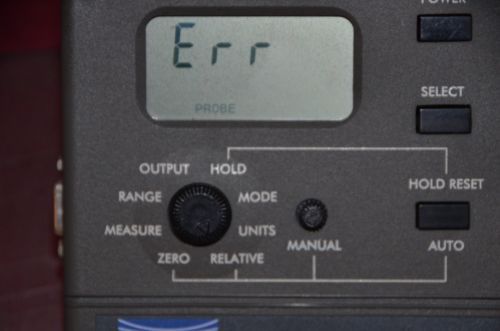

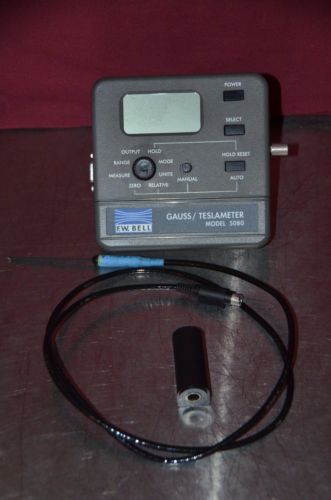

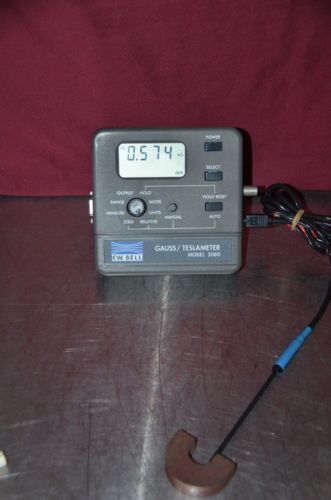

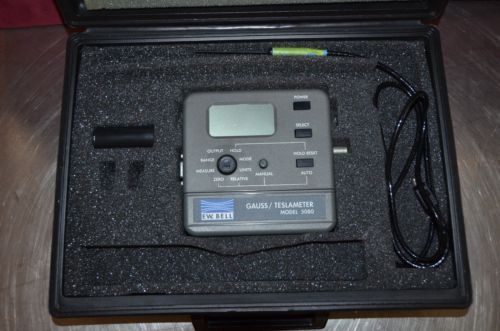

This Sypris Test & Measurement FW Bell 5080 Gauss/Teslameter is in excellent condition and is guaranteed to function 100%. This item came from a local lab that was upgrading equipment. We can accept pay pal or your credit card. Please feel free to contact us with any questions. PLEASE NOTE: As seen in photos the probe that comes with this meter is broken and as a result an error message is present when connected. The meter was tested with a working probe that came with another 5080 Gauss/Teslameter and the meter proved to be in complete working order (please see last two photos). The broken probe will need to be replaced which is reflected in the price. Features: Zero Gauss Chamber Case The MODEL 5080 GAUSS / TESLAMETER is a portable instrument that utilizes a Hall probe to measure magnetic flux density in terms of gauss, tesla or ampere-meter. The measurement range is from 0.01 mT (0.1 G or 0.01 kAm) to 2.999T (29.99 kG or 2387 kAm). The instrument is capable of measuring static (dc) magnetic fields and alternating (ac) fields. The MODEL 5080 consists of a palm-sized meter and various detachable Hall probes. The meter operates on standard 9 volt alkaline batteries or can be operated with an external ac-to-dc power supply. A retractable bail allows the meter to stand upright on a flat surface. A notch in the bail allows the meter to be wall mounted when bench space is at a premium. The large display is visible at considerable distances. The instrument is easily configured using a single rotary selector and two pushbuttons. Three measurement ranges can be selected or the meter can automatically select the best range based on the present flux density being measured. A “zero” function allows the user to remove undesirable readings from nearby magnetic fields (including earth’ s) or false readings caused by initial electrical offsets in the probe and meter. Included is a “zero flux chamber” which allows the probe to be shielded from external magnetic fields during this operation. Another feature called “relative mode” allows large flux readings to be suppressed so that small variations within the larger field can be observed directly. Both the “zero” and “relative” adjustments can be made manually or automatically. APPLICATIONS • Sorting or performing incoming inspection on permanent magnets, particularly multi-pole magnets. • Testing audio speaker magnet assemblies, electric motor armatures and stators, transformer lamination stacks, cut toroidal cores, coils and solenoids. • Determining the location of stray fields around medical diagnostic equipment. • Determining sources of electromagnetic interference. • Locating flaws in welded joints. • Inspection of ferrous materials. • 3-dimensional field mapping. • Inspection of magnetic recording heads Specifications INSTRUMENT RANGE RESOLUTION GAUSS TESLA Am GAUSS TESLA Am 300 G 30 mT 23 kAm 0.1 G 0.01 mT 0.01 kAm 3 kG 300 mT 238 kAm 1 G 0.1 mT 0.1 kAm 30 kG 3 T 2388 kAm 10 G 1 mT 1 kAm ACCURACY (reading on display and from RS-232 port, including probe) dc mode: ±1 % of reading, ±3 counts ac mode: 20 - 10,000 Hz: ±2.5 % of reading, ±5 counts 10,000 - 20,000 Hz: ±5 % of reading, ±5 counts ACCURACY (analog output, including probe) dc mode: ±1 % of reading, ±5 mV. ac mode, low range: 20 - 2000 Hz: ±3 % of reading, ±5 mV 7,000 Hz: - 3 dB (typical) ac mode, mid and high range: 20 - 3500 Hz: ±3 % of reading, ±5 mV 13,000 Hz: - 3 dB (typical) WARMUP TIME TO RATED ACCURACY: 15 minutes SPECIFICATIONS 2-2 MIN / MAX HOLD ACQUISITION TIME: dc mode: 180 ms typical ac mode: 300 ms typical PEAK HOLD ACQUISITION TIME: dc mode: 1 ms typical ac mode: 1 ms typical ANALOG OUTPUT SCALING: dc mode: ±3 Vdc ac mode: 3 Vrms ANALOG OUTPUT NOISE: 4 mV rms typical ANALOG OUTPUT LOAD: 10 kohm min., 100 pF max. ACCURACY CHANGE WITH TEMPERATURE (not including probe): ±0.02 % / ?C typical BATTERY TYPE: 9 Vdc alkaline (NEDA 1640A) BATTERY LIFE: 8 hours typical (two batteries, analog output and RS-232 port not used) AUXILIARY POWER: 9 Vdc, 300 mA, AUXILIARY POWER CONNECTOR: Standard 2.5 mm I.D. / 5.5 mm O.D. connector. Center post is positive (+) polarity. ANALOG OUTPUT CONNECTOR: BNC OPERATING TEMPERATURE: 0 to +50?C (+32 to +122?F) STORAGE TEMPERATURE: -25 to +70?C (-13 to +158?F) FOR ADDITIONAL INFORMATION PLEASE VISIT SITE BELOW: datasheet.octopart.com/5080-F.W.-Bell-datasheet-43726.pdf
