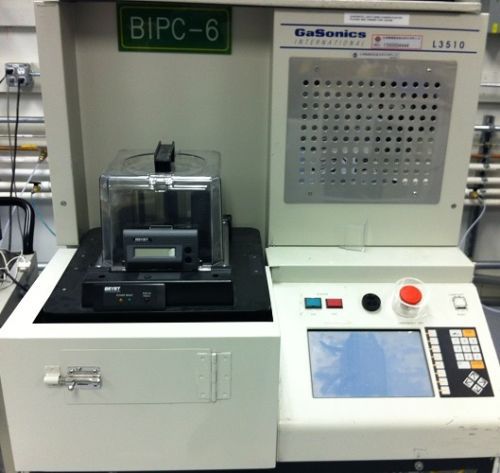

Gasonics L3510 Plasma Asher Semiconductor Process Equipment

US $45,000.00

Santa Clara, California, United States
Jan 30th

Open on mobile:
QR code

Condition: We sell it at AS IS Where IS( Refurbished by seller with installation and warranty is optional) Wafer Size: 8 inch configuration. Process Gasses: O2 and N2 Valid Time: Subject to prior sale without notice. Lead Time: Ready to go (8 weeks for refurbished condition) Location: Silicon Valley, CA, U.S.A. Warranty and Refund: No (Optional for refurbished condition) Gasonics L3510 plasma Asher semiconductor equipment General Description for reference only The Gasonics L3510 plasma system is designed for ashing and cleaning semiconductor wafers. Gasonics L3510 does this by creating monatomic oxygen, the active specie, which chemically reacts with the photoresist on the surface of the wafer. The Gasonics L3510 system is composed of two main components: (1)The process sub-system The process sub-system includes the controller, the microwave generator, the gas flow control, the cassette platform, and the robot assembly. (2)he vacuum pump The vacuum pump is normally located in an adjacent equipment room separate from the main system. The pump should be kept running continuously. Gasonics L3510 Sequence of Steps in Plasma Ashing The following is a typical process sequence in the Run (automatic) mode: · The robot arm takes a wafer from the cassette and places it on the quartz pins in the plasma chamber. · The door closes to seal the chamber, the vacuum valve opens, and the chamber is pumped down to a preset pressure. · The quartz pins can lower the wafer onto the platen for heating, or raise it above the platen. In addition, the wafer can be heated by a variable-intensity halogen lamp located above the process chamber. · Process gases are introduced into the evacuated chamber while operating pressure is achieved and maintained by a closed-loop pressure control system. · The wafer can be heated by the platen during processing. If additional wafer heating is required, the heat lamp can be turned on for a programmable time. · Microwave power turns on and ignites a plasma in the plasma reactor chamber. This ignition is aided by a UV lamp in the plasma generation cavity. · The plasma generates atomic oxygen molecules, which flow from the plasma reactor chamber to the process chamber, then across the surface of the wafer, where they react with the photoresist molecules. Processing is ended by turning off the microwave power and the gas flows. This can be triggered either by an end of process (EOP) sensor or when a pre-programmed amount of time has passed. · If low-particulate processing is desired, the system purges slowly to 10 Torr, then purges quickly to atmospheric pressure before the door opens. · When processing is complete, the quartz pins raise the ashed wafer, allowing the robot arm to retrieve it and return it to the cassette. · If a cooling time has been requested, the wafer is placed on the cooling station. · While the wafer is cooling, the robot arm takes the next wafer and moves it to the process chamber, repeating the cycle. When the first wafer has cooled, it is returned to its original cassette slot. Please Note: We do not arrange the shipment overseas. For international shipping, please send us your account (FEDEX) or ask your forwarder to pick up the items after you complete the transaction on our eBay store and payment is clear. Note : We are not responsible for any shipping cost, Customs Duties, import Taxes and fees for Orders shipped to countries outside of the United States. These fees can vary widely from country to country. Please contact your local customs office for further information. The buyer is responsible for assuring that the product can be lawfully imported to the destination country.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“We did not test the equipment. We sell the system at AS IS condition without warranty and refund.Inspection is available against appointment by sales@quicksemi.com”
