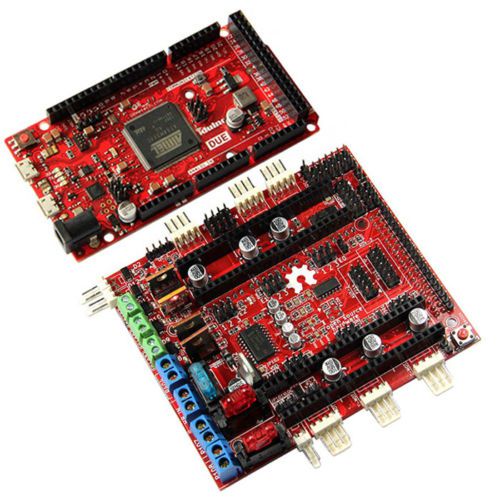

Geeetech RAMPS-FD shield,32bit CortexM3 with ARMArduino compatible ARM-based DUE, US $100 – Picture 0

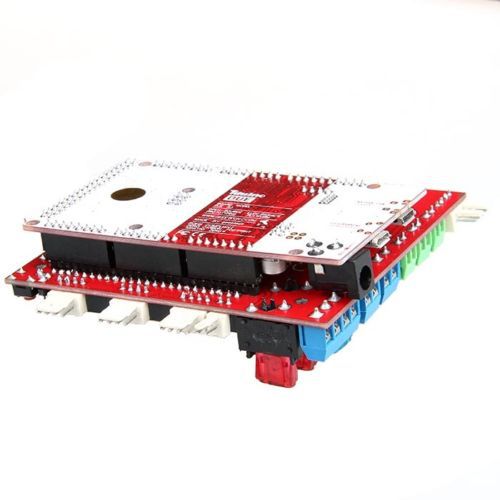

Geeetech RAMPS-FD shield,32bit CortexM3 with ARMArduino compatible ARM-based DUE, US $100 – Picture 1

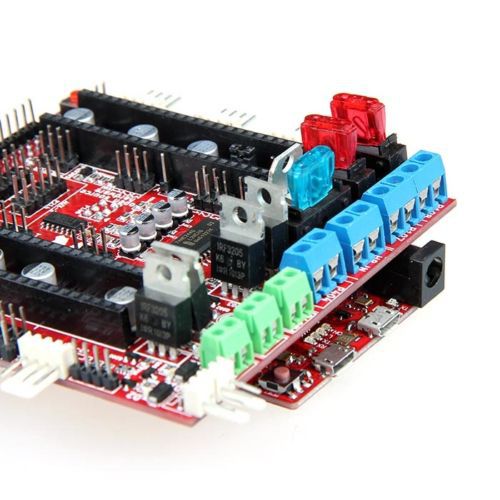

Geeetech RAMPS-FD shield,32bit CortexM3 with ARMArduino compatible ARM-based DUE, US $100 – Picture 2

Geeetech RAMPS-FD shield,32bit CortexM3 with ARMArduino compatible ARM-based DUE, US $100 – Picture 3

Geeetech Ramps-fd Shield,32bit Cortexm3 With Armarduino Compatible Arm-based Due

US $100

HK, China
Jan 29th

Open on mobile:
QR code

Welcome to my store efind0813 Description 1.Arduino compatibe Iduino DUE The Due is Arduino's first ARM-based Arduino development board. This board is based on a powerful 32bit CortexM3 ARM microcontroller made programmable through the familiar Arduino IDE. It increases the computing power available to Arduino users keeping the language as compatible as possible so that many programs will be migrated in a matter of minutes! The Iduino Due has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB-OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. There are also some cool features like DACs, Audio, DMA , an experimental multi tasking library and more. To compile code for the ARM processor, you'll need the latest version of the Arduino IDE: v1.5 (After a period of testing and debugging this will replace the 1.0.1 IDE altogether) Warning: Unlike other Iduino boards, the Iduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board. 2.RAMPS-FD It is a RAMPS shield for Arduino DUE. 3.Why should I use RAMPS-FD instead od RAMPS1.4 Campare Ramps-FD with Ramps1.4,the Improvements of Ramps-FD are below -The RAMPS-FD has other hardware protection, through the jumper cap control motor drive IC -The RAMPS-FD Much more than Ramps1.4 2-way PWM -The RAMPS-FD has Larger driving power than Ramps1.4 - The RAMPS-FD 'POWER has two choices:12v and 24v 4.Why should I select Arduino DUE instead of Arduino Mega -DUE has lower power ,computing faster and flash,sram bigger than mega2560 - CPU operates at 3.3V - High-current IO pins are capable of 15 mA source, 9 mA sink -Low-current IO pins capable of 3 mA source, 6 mA sink - CPU package has an absolute max of 130mA -The Due has 1 dedicated SPI port, and 4 multipurpose USART/SPI ports.The SPI port is only routed to the 6 pin header used for ICSP on Mega, but this is not used for ICSP on Due. -The Due does not have any EEPROM Package list 1 x Arduino compatible Iduino DUE 1 x RAMPS-FD shield 1 x USB cable for DUE Payment 1.We accept PayPal only. 2.Payment must be received within 7 business days of auction closing.,or a unpaid case will be opened. Delivery details 1.Standard shipping carrier is ePacket with tracking code for United States address,delivery within 7-14 busienss days. 2.For outside US address,standard shipping carrier is Hong Kong Post without tracking code,delivery within 25-30 business days.We provide a free tracking for order above 45USD.Please contact us if you want to add a tracking code for small orders. 3.Express shipping like DHL,Fedex,UPS,TNT is also avaiable if you are willing to pay extra.DHL is our standard shipping carrier for Expedited shipping,please contact us if you want a different carrier. Return policy 1.All returns are accepted. 2.You should contact us within 14 days after you received the item. 3.Return shipping will be paid by you. Contact us 1.We are always here for you,offering friendly, comprehensive customer service every step of the way. Please follow the good eBay practice to contact us if any doubts and problems.We sincerely hope our item and customer service can give you the BEST BUYING EXPERIENCE on eBay. 2.We believe nothing can solve problems but communication.Please contact our team via ebay message first before leaving any non-positive feedbacks if you feel unhappy here. Terms of sales 1.Customs duties or taxes are buyer's resposibility for all of the listings.Please check with your local customs office if you have any doubts. 2.Please confirm you are putting a correct and complete shipping address here.You are resposible for extra charge if your package been returned because of wrong address.If packages return because of wrong address,you will have to bear extra cost of shipping. Engineered for professional eBay sellers!
