Gh12 Gear Motor 30:1 Us Digital Optical Encoder 400cpr 12v Dc 200rpm 6mm Shaft

US $29.95

  • Gurnee, Illinois, United States
  • Jan 29th
Open on mobile:
QR code

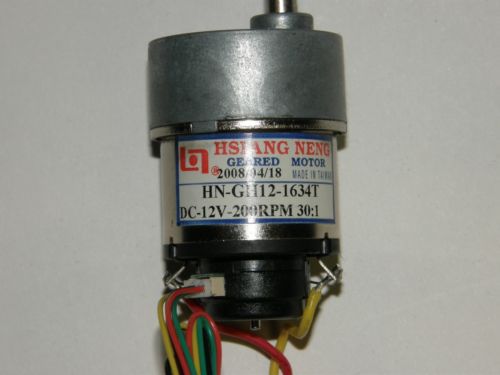

You are bidding for as new (assembled and tested for 15 minutes) Hsiang Neng HN-GH12-1634T gear motor with US Digital E4P-100-091-D-H-T-B 100CPR optical encoder, filter capacitor and cables. Guaranteed fully functional. GH35GM Series Features: Rated voltage: 12VDC Operating range: 4.5 to 12VDC Current @ maximum efficiency: 0.293A Speed @ maximum efficiency: 145 RPM Torque @ maximum efficiency: 850 g-cm Gear ratio: 30:1 Gear case size: 1.3" diameter x 0.9" length Motor size: 1.4" diameter x 0.7" length Shaft size: 0.23" diameter x 0.9" length Solder-type terminals Dielectric strength: 300VDC Insulation resistance: 10M? Oil bearing design for long service life  The E4P miniature reflective encoder is designed to provide digital quadrature encoder feedback for high volume applications with limited space constraints. The E4P version utilizes an innovative, patented push-on codewheel which accepts shaft diameters of 2mm to .250".   The E4P reflective encoder is the leader for high quantity OEM applications, but the E4 is the ideal choice when a set-screw codewheel encoder is required (see the E4page).  The E4P miniature encoder base provides mounting holes for two #3-48, length 1/4" or two M2.5x.45mm, length 6mm screws on a .586" bolt circle. When  mounting holes are not available, a pre-applied transfer adhesive (with peel-off backing) is available for "stick-on" mounting. The encoder cover is easily snapped onto the base and is embossed with the connector pin-out. Overview Miniature size Push-on hub - spring loaded collet design Minimum shaft length of .375" Fits shaft diameters of .079" to .250" Accepts +/-.020" Axial shaft play Off-axis mounting tolerance of .010" 100 cycles per revolution (CPR) 400 pulses per revolution (PPR) Single +5V supply
