Guzik Dc Power Supply Filter Pcb Board With Ferrite Toroids And Terminals

US $15.00

  • Littleton, Colorado, United States
  • Jan 29th
Open on mobile:
QR code

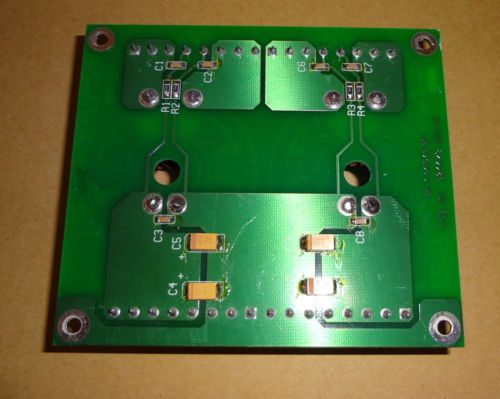

 GUZIK DC Power Supply Filter Board with Ferrite Toroids Up for auction is a Guzik GUZIK DC Power Supply Filter Board.  The board was removed from used operation hard drive/platter testing system. The board was designed for +5VDC and -5VDC supply filtering, but by changing the Tantalum capacitors on the back of the board, the board could be used at any DC voltage up to 50V.  The Toroids measure 1-1/2" across and have an Inductance across each coil of 600uH.  There are two parallel 47uF 16V Tantalum capacitor on each filter along with a .1uF ceramic capacitor.  The board measures 4-1/4" long by 3-3/4" wide and from the top of the toroid to bottom of the board is around 1" deep.  The board has a set of input and output screw terminals to make all connections.  There are voltage feedback terminals for both filters sides on the output of the Toroid inductors. Please see picture! Thanks you for looking at my auction item!
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “Removed from operational equipment. Some scratches, dents and signs of use. 100% functional.”
