Handheld Oscilloscope 150mhz 2ch 1gsa/s 2m Memory Depth Dmm Usb Ip51 Dso1152e

US $700.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

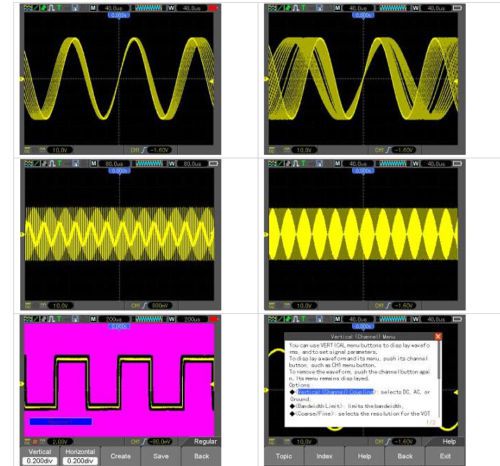

Note: we'll ship this item via express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Sweden, Swiss, Spain, Italy, UK, Japan, Korea,Thailand, Malaysia, Indonesia, Philippine, Singapore. Clients from other countries pls contact with us in advance to confirm the different shipping charges before you order. DSO1152E Features: High Bandwidth 70MHz-200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph. 2M Memory Depth. Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform. Easy-to-use pop-up menu with built-in multi-language help system. 32 Automatic Measurements. Waveform Math: Add, Subtract, Multiply, and Divide. Store and recall over. Automatic cursor tracking measurements. XY Mode. Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems. Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames. Pass/Fail function compares a stored waveform to an unknown input. Average Mode for smoothing waveforms. Square Wave Output (2V, 1kHz) for probe adjustment. USB Host/Device 2.0 full-speed interface; support removeable disk; LAN Option, easy to control by PC or long-distance. Dimensions (mm): 260(L)x220(W)x75(H), be carried easily. Specifications: Model DSO1072E DSO1102E DSO1152E DSO1202E Acquisition Sample Modes Real-Time Sample Acquisition Modes Normal Normal data only Peak Detect High-frequency and randon glith capture Average Wavefom Average, selectable 4,8,16,32,64,128 Inputs Inputs Coupling AC, DC, GND Inputs Impendance 1M?±2% ?20pF±3pF Probe Attenuation 1X, 10X Supported Probe Attenuation Factor 1X, 10X, 100X, 1000X Maximum Input Voltage CAT I and CAT II: 300VRMS (10x), Installation Category; CAT III: 150VRMS (1x) Horizontal System Sample Rate Range 1GS/s Waveform Interpolation (sin x)/x Record Length 2M SEC/DIV Range 4ns/div~2000s/div, in a 2, 4, 8 sequence 2ns/div~2000s/div, in a 2, 4, 8 sequence Sample Rate and Delay Time Accuracy ±50ppm over any >=1ms time interval Scanning Speed Range 4ns/div to 8ns/div; (-8div x s/div) to 40ms; 20ns/div to 80?s/div;(-8divxs/div) to 40ms 200?s/div to 40s/div; (-8divxs/div) to 400s 2ns/div to10ns/div; (-4divxs/div) to 20ms; Delta Time Measurement Accuracy (Full Bandwidth) Single-shot, Normal mode:± (1 sample interval +100ppm x reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm x reading + 0.4ns); Sample interval = s/div ? 200 Vertical System Vertical Resolution 8-bit resolution, all channel sampled simultaneously Volts Range 2mV/div to 100V/div at input BNC Bandwidth 70MHz 100MHz 150MHz 200MHz Rise Time at BNC( typical) 5ns 3.5ns 2.3ns 1.8ns Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled ±400V(100V/div-20V/div); ±50V(10V/div-5V/div) ±40V(2V/div-500mV/div); ±2V(200mV/div-50mV/div) ±400mV(20mV/div-2mV/div) Math +, -, *, /, FFT FFT Windows:Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point Bandwidth Limit 20MHz Low Frequency Response (-3db) =16 waveforms with vertical position at zero Accuracy: ± (3% x reading + 0.1div + 1mV) when 10mV/div or greater is selected. Measurement Type: Average of >=16 waveforms with vertical position not at zero Accuracy: ± [3% x (reading + vertical position) + 1% of vertical position + 0.2div]. Volts Measurement Repeatability, Average Acquisition Mode Delta volts between any two averages of >=16 waveforms acquired under same setup and ambient conditions Trigger System Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source CH1, CH2, AC Line Trigger Modes Auto, Normal, Single Coupling Type DC, AC, HF Reject, LF Reject, Noise Reject Trigger Sensitivity (Edge Trigger Type) DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; AC: Attenuates signals below 10Hz ; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz. Trigger Level Range CH1/CH2: ±8 divisions from center of screen; Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times >=20ns CH1/CH2: 0.2div x volts/div within ±4 divisions from center of screen; Set Level to 50%(typical) Operates with input signals >=50Hz Video Trigger Video Trigger Type CH1, CH2: Peak-to-peak amplitude of 2 divisions; Signal Formats and Field Rates Supports NTSC, PAL and SECAM broadcast systems for any field or any line Holdoff Range 100ns ~ 10s Pulse Width Trigger Pulse Width Trigger Mode Trigger when (< , >, = , or ?); Positive pulse or Negative pulse Pulse Width Trigger Point Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width Pulse Width Range 20ns ~ 10s Slope Trigger Slope Trigger Mode Trigger when (< , > , = , or ? ); Positive slope or Negative slope Slope Trigger Point Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. Time Range 20ns ~ 10s Overtime Trigger Over Time Modee Rising edge or Falling edge Time Range 20ns ~ 10s Alternative Trigger Trigger on CH1 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger on CH2 Internal Trigger: Edge, Pulse Width, Video, Slope Trigger Frequency Counter Readout Resolution 6 digits Accuracy (typical) ±30ppm (including all frequency reference errors and ±1 count errors) Frequency Range AC coupled, from 4Hz minimum to rated bandwidth Signal Source Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work. Measure Cursor Measurement Manual: Voltage difference between cursors: ?V Time difference between cursors: ?T Reciprocal of ?T in Hertz (1/?T); Tracing: The valtage and time at a waveform point; Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, General Specifications Display Resolution 640 horizontal by 480 vertical pixels Display Contrast Adjustable (16 gears) with the progress bar Probe Compensator Output Output Voltage( typical) About 2Vpp into >=1M? load Frequency(typical) 1kHz Power Supply Supply Voltage AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A Power Consumption <30W Environmental Temperature Operating: 32°F to 122°F (0°C to 50°C); Nonoperating: -40°F to 159.8°F (-40°C to +71°C) Cooling Method Convection Humidity +104°F or below (+40°C or below):

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Hantek
Bandwidth	150MHz
Model	DSO1152E
Channels	2
MPN	DSO1152E
Sample Rate	1GSa/s
Type	Digital
Country/Region of Manufacture	China
