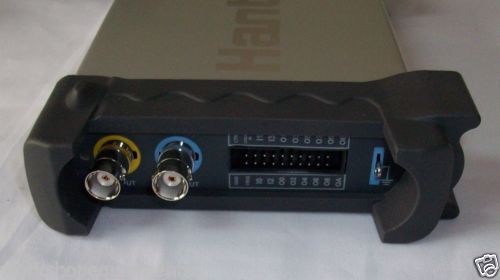

HANTEK 1025G USB 25M Function/Arbitrary Waveform Generator 50M Frequency Counter, US $178.90 – Picture 1

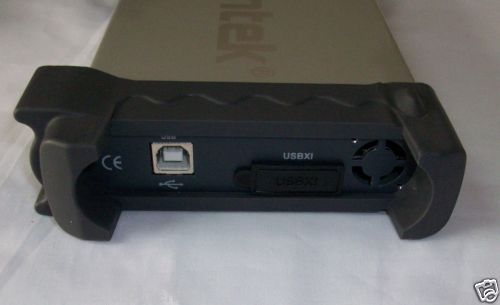

HANTEK 1025G USB 25M Function/Arbitrary Waveform Generator 50M Frequency Counter, US $178.90 – Picture 2

Hantek 1025g Usb 25m Function/arbitrary Waveform Generator 50m Frequency Counter

US $178.90

ShenZhen, China
Jan 29th

Open on mobile:
QR code

Feature: • Cost-effectiveness; PC USB Function/Arbitrary Waveform Generator. • Excellent industrial design-the same anodized aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wear ability. • Plug & Play USB interface, no external power source required; Similar operation interface to bench top waveform generators, easy to use. • It can be used disengaging the computer. Simulation of sensors and Real Word Signals. It will produce the needed arbitrary waveform signals when power on. • 200MSa/s sample rate, 12 bits of vertical resolution; 25Mz arbitrary waveform output. (Sine wave up to 75 MHz). • One computer can be linked with several HANTEK1025G to expand Multi-channels. • 50 MHz Frequency Counter. • Programmable Pattern Generator. • Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument. • Second Design: Supply DEMO code (VC, VB, LABVIEW) and technical support. • Support System: Win 7, Windows NT, Windows 2000, Windows XP Specification: Arbitrary Waveform Output Wave frequency DC~25MHz DAC clock 2K~200MHz adjustable Channels 1CH waveform output Waveform Length 4KSa Vertical Resolution 12 bit Frequency stabilization <30ppm Amplitude ±3.5V Max. Output impedance 50 ? Output current 50mA Ipeak=50mA System Bandwidth 25M Wave distortion -50dBc(1KHz), -40dBc(10KHz) Frequency Counter Frequency area DC~50MHz Input Amplitude 400mVpp~18Vpp Coupling DC Frequency precision ±Time Base Error ±1 Count Input impedance > 100K? Pattern Generator Digit 12 Bits Pattern Generator and 6Bit digital In Type LVCMOS Use condition Temperature 0~70 centigrade Humidity 0~95% Weight 0.3Kg (1). Note: (1.1). This item is Shipped by Registered Airmail with trace no.; (2). Shipping time: (2.1). Registered Airmail: About 3-4weeks USA, UK, Australia, Canada; 4-6weeks to West Europe, East Asia; 6-8weeks to other countries ****If you don't receive the goods in the list time, please don't hesitate to contact us**** (3). How to trace: (3.1). HongKong Post: www.hongkongpost.com; China Post: http://intmail.183.com.cn/item/itemStatusQuery.do?lan=0; when the goods reach your country, you can trace it on your local website in some countries;(3.2). EMS: www.ems.com.cn, when the goods reach your local country, you can trace it on your local post website;(3.3). DHL: www.dhl.com or http://www.dhl.com/en/express/tracking/shippers_reference.html track by shipper's reference; (4). Problem solve, leave Feedback and DSR: Our no.1 goal is customer stasfaction. If there is any problem, please contact us before leave feedback and DSR. (1). Note: (1.1). This item is ATF20B, include original package. Shipped by Express(N.America/W.Europe/E.Asia) or China Post(Other area, need about 4-6weeks); (1.2). The manual in Chinese, we can email the english manual to you;Analytics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer	HANTEK
Frequency	25Mz arbitrary waveform output.
