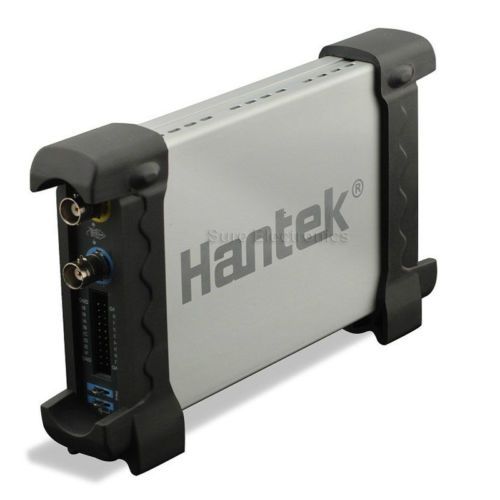

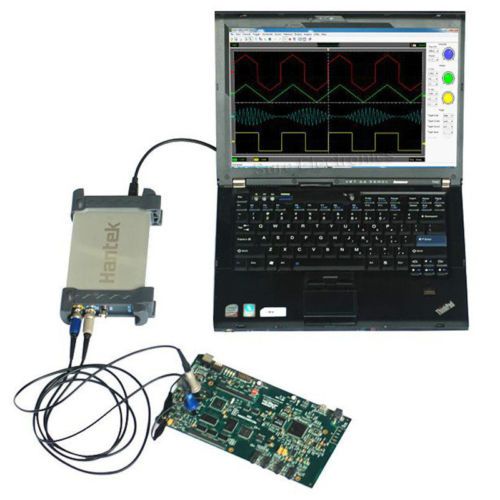

Hantek 6022bl Pc Based Usb Digital Portable Oscilloscope Logical Analyzer 16ch

US $2100

nanjing, China
Mar 4th

Open on mobile:
QR code

[zipedit] Our-Store Home Page About Us Contact Us Add to Favourate Payment Shipping Return Categories Payment Why Us Subscribe NewsLetter Add our store in to your favourites and recieve our exclusive emails about new items and special promotions Subscribe Product Overview Description Hantek 6022BL PC Based USB Digital Portable Oscilloscope Logical Analyzer 16CH (DC-OT11334) The item will be sent via TNT or DHL. Brife Introduction: 20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument. Features: Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument. USB2.0 interface, no external power source required, easy to use. Be suitable for notebook computer, product line maintenance, be used easily on business. Dimensions (mm):205(L) x120(W) x35(H), be carried easily. High performance, 48MS/s real-time sampling, 20MHz bandwidth. 16Channels Logic Analyzer, 20MHz Bandwidth; Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA. 23 measurement functions, PASS/FAIL Check, be suitable for technical application. Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. FFT One computer can connect many DSO, extend channel easily. PID/VID Second Design instance. Specifications: Model Hantek6022BL Oscilloscope Features Bandwidth 20MHz Channel 2(Digital)+16(Logic) Sample Rate 48MSa/s Memory Depth 1M Rise Time 17.5ns Time Base Precision ±50ppm Time Base Range 4ns/div-1h/div (Step by1-2-4) Input Impendence 1M? 25pF Input Sensitivity 10mV/div~5V/div Vertical Resolution 8Bit Vertical PositionRange 10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe; 1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe DC Accuracy ±3% Bandwidth Limited 20MHz Trigger Type Edge, Alternative Trigger Source CH1, CH2, EXT, EXT/10 Math +,-,x,?,FFT, Invert Cursor Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Logic Analyzer Features Channel 16 Max. Impendance 1M?(C=7.5pF) Max. Voltage 0V~5.5V Max. Sample 48M Bandwidth 10MHz Compatible Input TTL, LVTTL, CMOS Memory Depth 1M/CH General Features Power USB Port Demensions 200mm x100mm x 35mm Weight 0.3KG Standard Probe 2 x PP80 Function Pictures: Package Includes: 1 x 6022BL oscilloscope 2 x oscilloscope probe 1 x USB cable 1 x jumper clip set (color is random) 2 x jumper cable 1 x CD (manual etc.) Payment Shipping 100% Success Refund & Return Home Page About Us Contact Us Add to Favourate Payment Shipping Return Designed By XDiom Graphics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Hantek
Bandwidth	20MHz
Model	6022BL
Channels	16
Type	Digital
Sample Rate	48MSa/s
