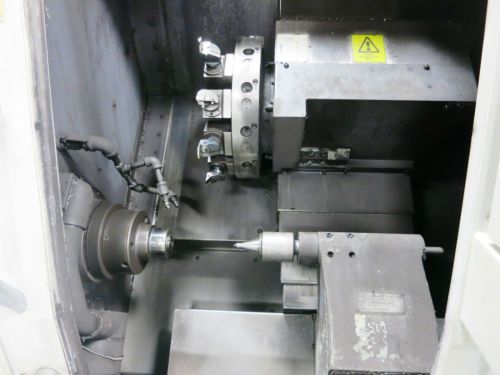

Hardinge Talent 6/45 2-axis Cnc Turning Center Lathe

US $39,500.00

Prospect Heights, Illinois, United States
Jan 30th

Open on mobile:
QR code

HARDINGE TALENT 6/45 2-AXIS CNC TURNING CENTER LATHE General Specifications Spindle: Chuck-Ready Spindle Configuration (ANSI) A2-5 Draw tube type Hydraulic Through Draw Tube Capacity 1.77" Jaw Chuck Size (Max) 6.65" Jaw Chuck Size (Gripping Capacity) 5.31" Machining Diam. (Max.) 11.10" Turning length (Max.) 15.00" Hang weight with Device and part 75 Lb. Spindle centerline height 39.40" Operators reach to Spindle 11" AC Digital Spindle Drive System (Fanuc Control) Peak Horsepower rating 15 HP Torque Rating 84.5 ft-lb Base speed 750 RPM Max. Speed (1-rpm Steps) 6,000 RPM Siemens Control Option: Peak Horsepower Rating 17.4 HP Torque rating 64.6 ft-lb Base Speed 1,200 RPM Max. Speed (1-rpm Steps) 6,000 RPM Carriage and Cross Slide: Swing Dia. Over Way Cover (Max.) 18.00" Travel (Max.) X-Axis 9.00" Z-Axis 16.00" Traverse Rates (Max.) X and Z Axes 1,181 IPM Thrust (Max) X-Axis (Fanuc) 1,500 Lb Z-Axis (Fanuc) 1,500 Lb X and Z Axes (w/Siemens Option) 1,340 Lb Ball Screw Diameter X and Z Axes 1,102" Accuracy-All Machines Laser Inspected: Evaluation Standard ANSI/ASME B5.57 Positioning X and Z Axes +/- 0002" Repeatability X and Z Axes -/0 0001" Stock 12 3 SERIAL NUMBER 4 NEW 5 GENERAL SPECIFICATIONS: (Cont.) Turret Bidirectional BDI30 Number of stations 12 Square Shank Tool size (Max.) 3/4" Round shank tool size (Max.) 1-1/4" Index Time (Adjacent Station) 0.73 second Tailstock 9Fully Programmable) Option: Positioning Hydraulic Morse Taper Center MT No.4 Travel of Tailstock Base 13.42" Part Length (Max.) 15.00" Part Length (Min.) 1.68" Feedrate (Max.) 216 IPM Thrust (Max.) 779 Lb Workpiece Dia. x Length (Max.) 2.05" x 4" Miscellaneous: Power Supply Requirement-Fanuc Control 220V/67 FLA/3Phase Coolant Tank Capacity 33 gallons Coolant pressure - standard 40 PSI Machine weight (approx) 5,940 lbs MOTOR SPECIFIATIONS: Wired 220 Volt Note: 3,334 Spindle Cutting Hours Motor Specifications Not Available Equipped With Fanuc Oi-TC CNC Control Collet Chuck for 5C Collets & Tool Setter 12 Position VDI Type Tooling Turret Misc. Turret Tool Holders Chip Conveyors & Coolant System Serial Number NA Year 2006 Location ON LOCATION
