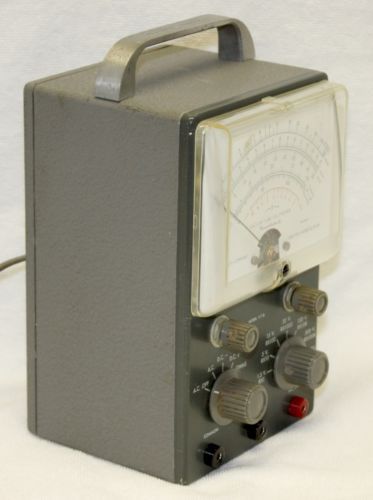

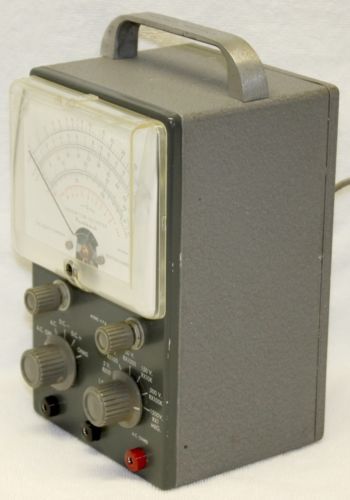

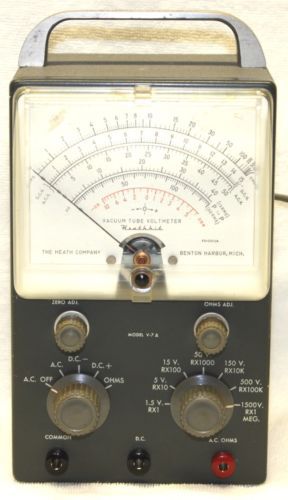

Heathkit V7-a Vacuum Tube Voltmeter (vtvm) Refurbished Calibrated And Guaranteed

US $160

Colorado Springs, Colorado, United States
Feb 15th

Open on mobile:
QR code

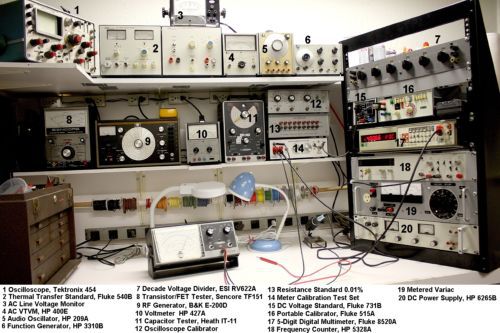

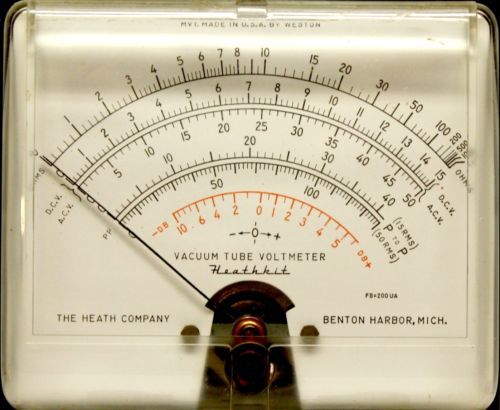

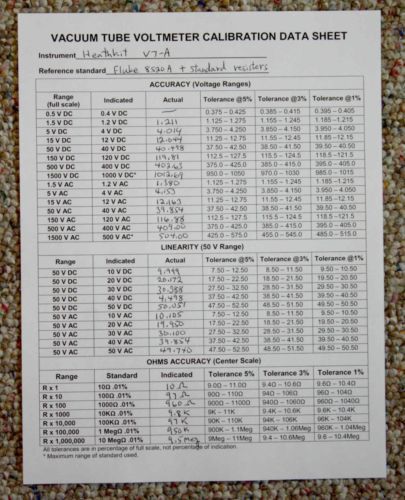

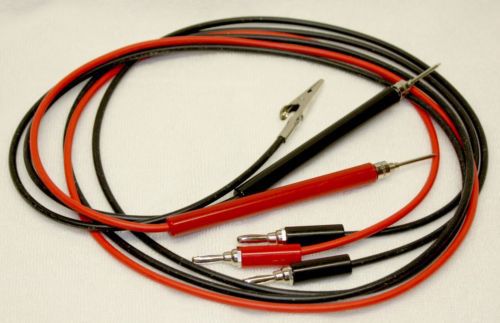

Heathkit V7-A Vacuum Tube Voltmeter (VTVM) Refurbished Calibrated and Guaranteed Perfect for the Ham, vintage radio hobbyist or anyone working on vacuum tube circuits This meter is fully calibrated and accuracy verified on all ranges. It is supplied with a calibration data sheet showing the accuracy on each range (similar to the photo shown). It is fully guaranteed to meet or exceed the original manufacturer’s specifications and is supplied with an all-new user’s manual (see photo). This Heathkit IM11 is in very good cosmetic condition. The instrument case did not need repainting. The plastic meter face has a small ding in the upper-right corner that doesn’t show in the photos. It does not interfere with reading the scales. Ever notice how most sellers of used VTVMs list their items? It’s almost always: 1) no probe(s) 2) no manual 3) no calibration 4) no guarantee and 5) no returns. What’s more, the seller often says, “I don’t know anything about this and have no way to test it.” In contrast, I am a retired electronics engineer with many years experience in design repair, maintenance and calibration of test equipment. I have also been refurbishing and selling VTVMs on ebay for years. Every VTVM I sell always 1) has probes, 2) has a manual, 3) is fully calibrated, 4) is guaranteed and 5) can be returned if buyer is not satisfied. That’s the way I think it ought to be. In addition, my refurbished VTVMs have had many improvements added. The last photo shows my electronics lab and the equipment I use to test and calibrate the meters I sell. A Heathkit IM-13 is shown being calibrated. VTVM calibrations are refrenced to the Fluke 515A, and the Fluke 8520A (items 16 and 17 in the picture). This VTVM has had the following improvements/modifications: The instrument case has been isolated from circuit common, making safe voltage measurement possible across components both ends of which are above ground. The selenium rectifier and electrolytic filter capacitor were replaced with a silicon diode and new capacitor. The ohms circuit was modified to eliminate the ohms battery (see photos). This improves accuracy, particularly on the low ranges, by eliminating the problem of poor contact between the ohms battery and its holder. It also eliminates one of the biggest problems with these instruments, internal damage caused by a leaking battery. The ac volts circuit was modified to eliminate the 6AL5 tube, replacing it with two 1000 volt silicon diodes (see photo). This eliminates the problem of zero drift on the low ac volts range caused by varying contact potential in the vacuum tube diode. All the input test leads/probes have been replaced with brand new ones. This instrument is fully tested and guaranteed to work properly, not like the “as is” condition of most VTVMs sold on e-bay. If not satisfied, return within 14 days for a full refund of the purchase price. Buyer must pay return shipping costs. See the accompanying photos. The accuracy specifications for this instrument are: Plus or minus 3% of full scale on dc volts and ohms Plus or minus 5% of full scale on ac volts (* except the 1.5 volt ac range) * Accuracy on the 1.5 volt ac range only may be off by as much as 15% or more due to non-linearity at the lowest ac voltage scale. These instruments should have had a separate meter scale for the lowest ac range (as many later models with larger meter movements do). HERE IS SOME FEEDBACK FROM BUYERS OF MY REFURBISHED VTVMs: (I have never received ANY negative feedback and the only complaint was because of instruments that were damaged in shipment. All were repaired and returned to happy customers.) Dear clark3185, I received the heathkit IM11 Voltmeter that I bought from you off EBAY and wanted to thank you for your attention to detail. Most sellers don't go to the lengths you do to offer quality instructions and a list of what you did as part of your equipment refurbishment. I'm new to tube radio renew but was a electronics tech in the 70's for the Navy - P3 Orions. I needed a good voltmeter and buying yours seemed like a good idea especially since it was apparent that you are good at what you do. I'm in the market for a good RF generator so will keep your seller ID in mind. Thanks again, T. M. Grants, NM Timely delivery..well packed..great documentation for a nicely refurbished unit. Nice meter - works perfectly - excellent condition. Item as described only better.Packaged very well; arrived in good condition. Great job, sweet meter. Good for old eyes, thanks! Very nice meter. This is a top of the line seller. I am completely satisfied with my purchase. Works great and is exactly as the seller described it. Reasonable shipping cost. Item works great. Nice restore and documentation. This VTVM works great. Arrived promptly. Great ebayer! Meter had a fault. Seller repaired it and re-imbursed shipping. Simply as stated with rapid delivery, great sale A+ all the way. Item was as described and works. Fast ship. Great Seller. Nicely restored meter. I am VERY happy with this purchase! Outstanding refurbished instrument and paperwork, thanks! Very satisfied. Quick delivery. Excellent documentation. Very good value. Item BETTER than described Excellent communications Prompt shipping. Documentation excellent, condition of merchandise excellent, highly recommend. Very nice restoration. Benchmarks as expected. Perfect for vintage repair! Excellent seller...courteous, fast shipment, item as described. Very professional restoration. Good packing, excellent seller. 10+++++Stars/Great Product/Good Price/Fast Well Packed Ship/Very Highly Recommend.

“See detailed description”
