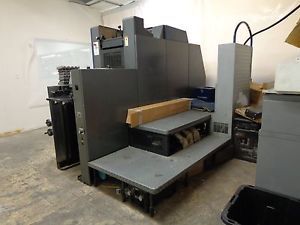

Heidelberg Press QuickMaster 46-4 DI, US $35000 – Picture 0

Heidelberg Press QuickMaster 46-4 DI, US $35000 – Picture 1

Heidelberg Press Quickmaster 46-4 Di

US $35000

San Ysidro, California, United States
Oct 20th

Open on mobile:
QR code

Litographic press with direct imaging function (laser imaged on the press from digital data). Requires no dampening system in the printing unit (Dry Offset). Allows 4-colour process printing in a single pass. Very flexible printing machine since it prints all available waterless offset inks and differents stocks (from a label paper to posters). Best-suited for short runs of between 200 and 5,000 copies, also handles longer runs. Top Speed of 10,000 iph. SPECIFICATIONS: Quickmaster DI 46-4 Max. sheet format: 18 1/8" x 13 3/8" (460 mm x 340 mm) Min. sheet format: 5 1/2" x 3 1/2" (140 mm x 89 mm) Largest printable area: 17 3/4" x 13" (450 x 330 mm) Gripper margin: 13/32" (10 mm) Stock thickness: 0.0016" to 0.012" (0.06 to 0.30 mm) Gripper margin: 13/32" (10 mm) Imaging resolutions: 1,270 dpi / 2,540 dpi Imaging times: < 4 min. at 1,270 dpi Laser diodes per printing unit: 16 Media Size Max : 100.3 inches (2550 mm), Min : 8.2 inches (210 mm) Plotting surface Roll holder: face OUT, Heavy-duty media holder: face IN/OUT Roll diameter Core inside: 3 inches, Roll outside: less than 9.8 inches (250 mm) Roll weight Less than 242 lbs (110 kg) Printing Plates Presstek PEARL dry, multilayer masters for thermal imaging on supply reel, polyester base material. No. of masters per reel: app. 35 No. of masters per reel: app. 35 21 7/8" x 13 1/4" (555 mm x 337 mm) Thickness: 0.077" (1.95 mm) Blanket cylinder undercut: 0.091" (2.3 mm) Max. production run speed: 10,000 iph Min. production run speed: 3,500 iph Crawl mode: 500 rpm No. rollers: 12 (incl. fountain roller) Form rollers: 3 Diameter of form rollers: 2 1/8"-1 3/4"-2" (54.7-45–50 mm) Power consumption (at 50/60 Hz): approx. 10.5kW Dimensions (length x width x height): 8' 1/2" x 8' 4 1/2" x 6'3 1/2" (245 x 255 x 190 cm) Weight: 8,378 lbs. (3,800 kg) Emission values: <80 dB (A) Raster Image Processor Hardware: High-performance IBM Intel workstation Software: Delta Technology (optional: Harlequin ScriptWorks)
