Hioki 3532-50 Lcr Meter(5mhz) Hitester With Test Fixtures

US $2,750.00

Seoul,Korea, Korea, South
Jun 9th

Open on mobile:
QR code

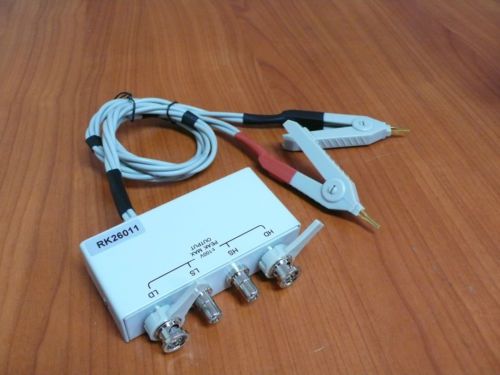

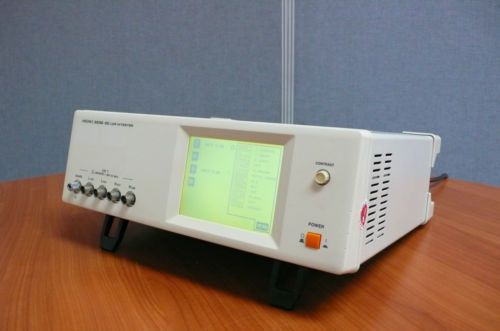

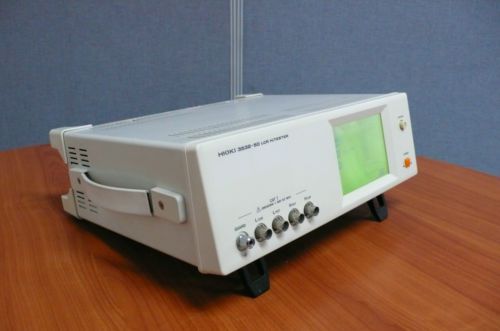

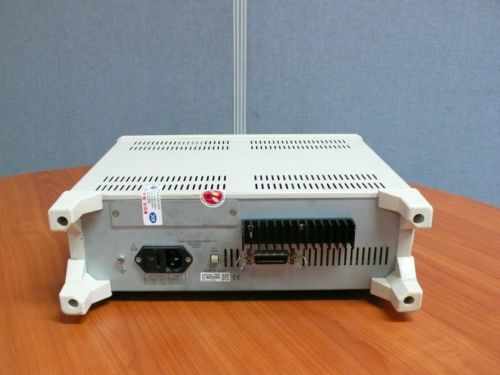

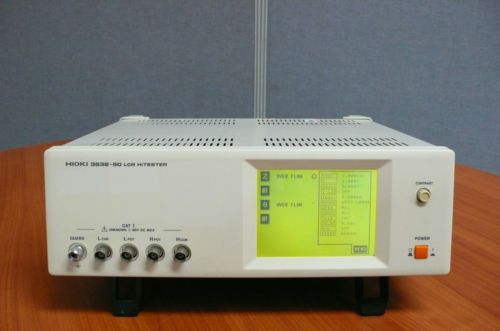

Hello everyone. This is the auction for HIOKI 3532-50 LCR HiTESTER(5MHz) LCR METER with test fixtures. This item is in good working condition(tested), relatively good on exterior also. Compatible Kenvin clips(new one) & compatible tweezers(used one) are included. (No other peripherals besides shown in the pictures) Impedance meter with a wide test frequency range Higher frequency range (42 Hz to 5 MHz) High speed measurement of 5 ms LCR meter Interactive touch panel operation Wide setting range for measurement voltage and current Measurement parameters |Z|, |Y|, phase angle, Rp, Rs(ESR), G, X, B, Cp, Cs, Lp, Ls, D (dissipation factor), and Q Measurement method Source: constant current 10 ?A to 100 mA (42 Hz to 1 MHz), 50 ?A to 20 mA (1 MHz to 5 MHz), or constant voltage 10 mV to 5 V (42 Hz to 1 MHz), 50 mV to 1 V (1 MHz to 5 MHz) Sense: voltage, AC Source frequency 42 Hz to 5 MHz Measurement ranges |Z|, R, X: 10.00 m-Ohm to 200.00 M-Ohm (depending on condition), phase angle: -180.00 to +180.00°, C: 0.3200 pF to 370.00 mF, L: 16.000 nH to 750.00 kH, D: 0.00001 to 9.99999, Q: 0.01 to 999.99, |Y|, G, B: 5.0000 nS to 99.999 S Basic accuracy |Z|: ±0.08 % rdg. , phase angle: ±0.05 ° Measurement times typical values for displaying |Z| Fast: 5 msec. to Slow2: 140 msec. Display 99999 full digits, LCD with backlight display Comparator functions Setting: Upper and lower limit, percentage, or absolute value, Output: 3 levels (Hi, In, Lo), Open-collector, Isolated External printer 9442 (use with the 9443-02 or -03/9446/9593-01) Power supply 100 to 240 V AC (selectable type), 50/60Hz Dimensions, mass 352 mm(13.86 in)W x 124 mm(4.88 in)H x 323 mm(12.72 in)D, 6.5 kg (229.3 oz) Accessories Power cord(1), Fuse(1) We sell this unit to worldwide ebayers with the fixed international shipment fee $113.00(USD). (Using international registered express air parcel, taking about 7~10 working days to get to you) Item location is Seoul Korea. Winner needs to give us receiver's phone number for prompt and exact shipment! (Delivery agency in Korea does not accept international air parcel without receiver's phone number.) If the unit is not the same as described, you can return the unit in 7 days. Then, we can refund full amount of your bid with round trip cost of delivery right after we get the unit. We can offer combined shipment for a little saving your delivery fee. Thank you for your interest.
