Hitachi S-2400 Sem/4pi Silicon Drift X-ray Detector/quorum Sc7620 Coater/chiller

US $62,999.25

Climax Springs, Missouri, United States
Jan 30th

Open on mobile:
QR code

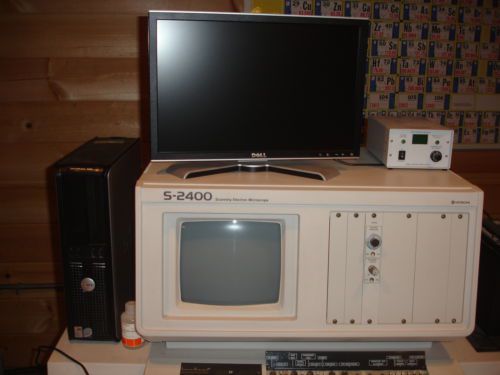

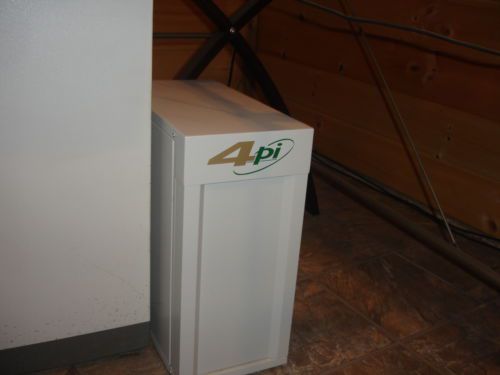

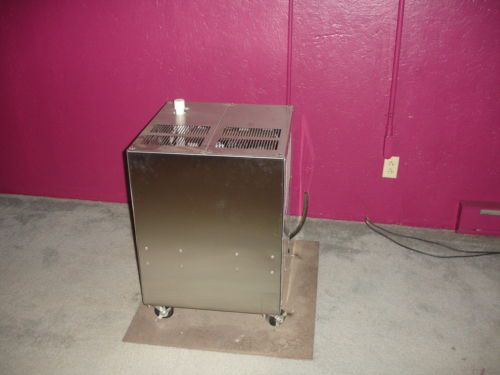

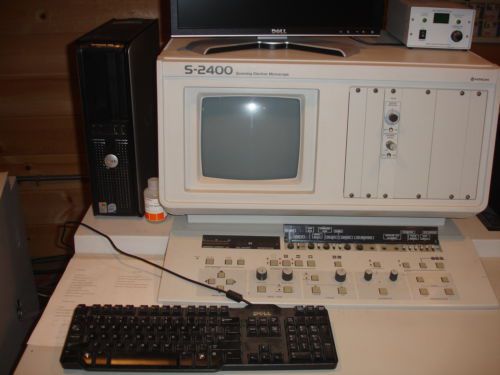

Hitachi S-2400 SEM/4pi Silicon Drift X-Ray Detector/Quorum SC7620 Sputter Coater/Dimplex JT500 Chiller Hitachi S-2400 was developed for high resolution scanning electron microscopy and elemental X-Ray microanalysis. It has a frame memory to allow flicker-free images at all scanning speeds from slow to rapid TV scan rates. Also built in is a super-conical lens that allows high resolution imaging even with tilted samples. Unit specifications Hitachi S-2400 Resolution: 4 nm Magnification: 20x (WD = 35 mm) to 300,000X Accelerating voltage: 0.3-3 (0.1kv steps), 4-8 (1kv steps), 10, 12, 15, 18, 20, 22, 25 kv Electronic FOV movement: +/- 20 microns (WD = 30 mm) Specimen Stage Specifications Range of Movement X: 0 – 80 mm Range of Movement Y: 0 – 40 mm Range of Movement T: -200 -900 Range of Movement R: 3600 continuous Range of Movement Z: 5 – 35 mm Maximum specimen size 150 mm Specimen Stubs: 15mm, 60mm, 125mm dia. Digital Imaging capability 4pi Silicon Drift X-ray detector State of the art drift technology LN2 free operation, Peltier cooled, no liquid coolant required Cool down time in less than 5 minutes Resolution better than 133ev, stable over wide range of input count rates Throughput rates exceeding 100,000 counts per second Light element detection down to boron with quantitation of carbon Sensor: 10 or 30mm2 active area Low-noise, high-rate preamplifier for high-count rate performance Tube diameter of less than 18 mm fits most EDS ports Quorum SC7620 Mini Sputter Coater Designed for routine applications, the Quorum SC7620 uses a basic magnetron sputter head with a simple to replace disc target (gold/palladium as standard, carbon optional). The head is hinged for easy operation and fitted with electrical safety interlocks. To prevent accidental damage the high voltage lead is shielded. The plasma current is variable adjustment of the vacuum level using an argon leak valve. For maximum sputtering efficiency the gas injector system ensures that argon gas enters the chamber close to the plasma discharge. Venting is to Argon. Includes required pump. Dimplex JT 500 Cooler Dimplex Thermal Solutions air-cooled condenser designed for indoor installation, with its vertical air discharge it is the industry’s best. The vertical air discharge configuration offers reduced floor space and minimizes worker discomfort of hot blowing air from the discharge of the chiller. Designed for 50-90 F ambient temperatures. Condensing unit utilizes reciprocating hermetically sealed compressor which offers efficient operation, quieter performance and higher reliability. The pump is a positive displacement vane style designed to deliver 4 GPM at 50 psi. Fluid type is water/ethylene (70/30). Electrical requirements NEMA 12/4 electrical box, 115V/1/60, Remote start stop capability, Eng. Spec control voltage. Condition This item is used regularly at our facility. It is currently in operation. It is available for inspection/demonstration by appointment only. Please call 636-394-1480 if you have questions. Sale Terms This item is to be sold as is where is. De-installation, shipping prep, shipping, transportation, import duties, taxes and any customs fees required are not included in the item price or shipping cost, and are they buyer’s responsibility. About Best Offers If you submit a BEST OFFER that is accepted, it automatically becomes a sale and cannot be retracted. Please be sure you are prepared to purchase the item for your offer price PLUS the De-installation, shipping prep, shipping, transportation, import duties, taxes and any custom fees required before submitting an offer.
