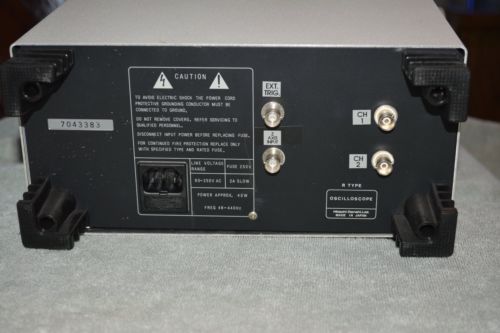

Hitachi V-1560 Analog Oscilloscope

US $150.00

Flemington, New Jersey, United States
Jan 29th

Open on mobile:
QR code

Sweep time autoranging, Trigger lock V-555:DC to 50MHz, 2 channels, Cursor measurement, CRT readout, DC offset, Alternate magnification V-552:DC to 50MHz, 2 channels, DC offset, Alternate magnificationV-252: DC to 20MHz, 2 channels Features New Basic Series RTO, Designed to Provide the Basics in Waveform Observation Easy Operation Direct readings of measured values are extremely simple and accurate (V-1585/1565/695/555). Sweep time autoranging automatically optimizes the sweep time (V-1585/1565/1560/695). Auto-trigger level automatically optimizes the trigger level variable range (V-1585/1565/1560/695). Lightweight portable design with large 6 inch CRT. Quality, Reliability and Performance Tested in ISO9002 factory. . Low failure rate, achieved by active application of past failure feedback data. Provides high performance with delayed sweep (V-1585/1565/1560/695), TV sync trigger, frequency counter (V-1585/1565/695), cursor readout (V-1585/1565/685/555), trigger lock (V-1585/1565/1560/695), auto trigger level (V-1585/1565/1560/695), DC offset (V-555/552), and alternate magnification (V-555/552). Main Specifications CRT: 6-inch Acceleration potential: V-1585: 17kV; V-1565/1560: 17kV; V-555/552: 12kV; V-695: 12kV V-252: 2kV Vertical sensitivity: 2mV to 5V/div, V-555/552/252: 5mV to 5V/div (1mV/div with 5) Input impedance: 1M//23pF; V-555/552/252: 1M//25pF Input withstand voltage: 400V(DC+AC peak at 1kHz); V-555/552/252: 300V(DC+ACpeak at 1kHz) Bandwidth limiter: V-1585: 20MHz; V-1565/1560: 20MHz; V-695: 10Mhz Others: Not provided Sweep time: Main: 50ns/div to 0.5s/div; V-555/552/252: 0.2s/div to 0.2s/div Delayed: 50ns/div to 50ms/div Max. sweep rate: 5ns/div 5ns/div; V-555/552: 20ns/div; V-252: 100ns/div Display mode: A, ALT, B; V-555/552/252: A only Power supply: 90 to 250V, 48 to 440Hz; V-555/552/252: 100/120/220/240V10%, 50/60Hz Power consumption: 35W to 42W Dimensions 310(W)x130(H)x370(D)mm, 12.2x5.1x14.5 ins.; V-1565/1560/695: 275(W)130(H)360(D)mm, 10.8x5.1x14.1 ins. Weight V-1585: 7kg, 15.4 lbs.; V-1565/1560/695: 6kg, 13.2 lbs.; V-555/552: 6.5kg, 14.3 lbs.; V-252: 6kg, 13.2 lbs.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Hitachi
Model	V-1560
Type	Analog
MPN	V-1560
Channels	2 Channel
Country/Region of Manufacture	Japan
Bandwidth	100 MHz
