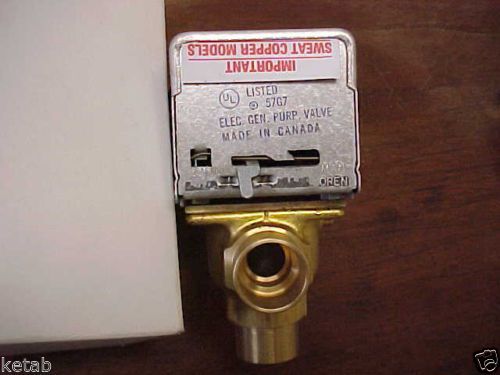

Honeywell V4044b1314 , Valve Motorized

US $69.97

Joliet, Illinois, United States
Feb 21st

Open on mobile:
QR code

YOU ARE BIDDING ON A MOTORIZED VALVE WITH THE FALLOWING SPECS : CONNECTION TYPE Sweat PIPE SIZE (INCH) 3/4 in. PIPE SIZE (DN) DN20 BODY PATTERN 3-Way, Diverting CAPACITY (CV) 7.0 Cv CAPACITY (KV) 6 Kv DE-ENERGIZED POSITION Port A Normally Closed MAXIMUM CLOSE-OFF PRESSURE (PSI) 10 psi MAXIMUM CLOSE-OFF PRESSURE (KPA) 69 kPa FLUID TEMPERATURE RANGE (F) 40 F to 200 F FLUID TEMPERATURE RANGE (C) 5 C to 93 C ELECTRICAL CONNECTIONS (IN.) 18 in. leads ELECTRICAL CONNECTIONS (MM) 457 mm leads POWER CONSUMPTION 9.6 VA NOMINAL TIMING (SEC, MIN) 30 sec VALVE ACTION Spring Return to port A MAXIMUM AMBIENT TEMPERATURE (F) 125 F MAXIMUM AMBIENT TEMPERATURE (C) 52 C DIMENSIONS (IN.) 4 13/16 in. high x 3 1/2 in. wide x 2 3/8 in. deep DIMENSIONS (MM) 122 mm high x 90 mm wide x 60 mm deep TYPE 2 position STATIC PRESSURE (PSI) 125 psi STATIC PRESSURE (KPA) 862 kPa MATERIALS (BODY) Brass MATERIALS (SEAT) Brass MATERIALS (STEM) Stainless Steel MATERIALS (BALL PLUG) Buna-N (NBR) Rubber Ball MATERIALS (PACKING O-RINGS) EPDM rubber VOLTAGE 120 VAC FREQUENCY 60 Hz 5 UNITS AVAILABLE MODEL # V4044B1314 MFR : HONEYWELL LOCATION : W1IL6LEFT9dg18MNJHFRE

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second, or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	HONEYWELL
Model	V4044B1314
