Honton Ht-r392 Bga Rework Station,220v/110v Optional.(re:110v No Vacuum Pump)

US $999.00

United States
Jan 31st

Open on mobile:
QR code

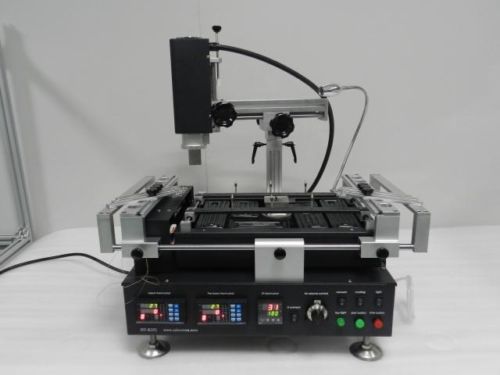

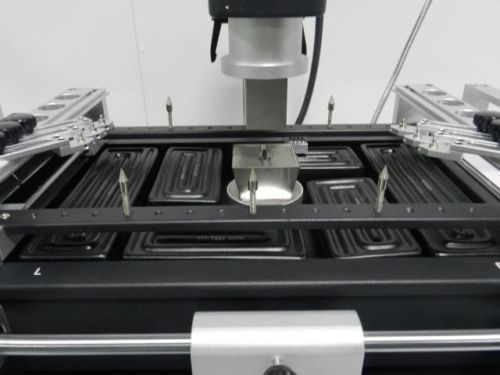

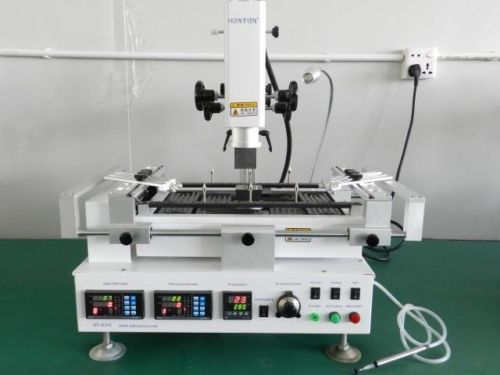

BGA Rework Station HT-R392 (220V/110V Optional.) RE: A.Please send in Ebay message need White or Black,if not we will send random color! B: 110V Model don't have builk-in vacuum pump,we will send manual vacuum pen instead of!! Introductions and Specifications: HT-R392 is the latest hot air BGA rework station made by HT, and it is the updatating version for HT-R390.bga rework statin The diffrences between HT-R392 and HT-R390 is as below: 1. HT-R392 is added one preheating function, you can brake out the humidity of the PCB before reworking them which can improve reworking success rate. 2. HT-R392 with movable PCB holder and is added a fixture which can be moved to right and left freely, which make BGA chip alignment is much more easy. But HT-R390 PCB holder is fixed to some extent, if you need to align the BGA chip needed rework to the hot air nozzle, you need to adjust the screw which takes much time. 3. Other functions are as the same as HT-R390 as below: It is made up of three temperature zones: two are hot air and one infrared The temperature controller, PLC and heater of the HT-R390 are made of high-precision material which can controll the reworking process precisely. HT-R392 is with three indepedently controlled temperature zones: The first and second temperature zone can be set 8 segment (up/ down) temperatre profiles and 8 constant temperature profile. And the bga rework station can save 10 different temperature profiles tolal. The third one is preheating zone to ensure the the PCB get full heat during reworking process. HT-R392 can be connected to computer with built-in PC RSS serial port and comes with the software CD The temperature profiles for top and bottom heating are going independently when the HT R392 is in working , and the cross-flow fan can help to cool the PCBA rapidly to protect the deformation of PCBA happen. High precision temperature thermocouple can feel the actual temperature precisely. HT R392 with alarm function to make you inform the finishing of the desoldering and soldering process, and it also with a vacuum suction pen to help to remove the chips. HT-R392 is designed with a V-groove with a flexible movable fixture to protect the deformation of the PCB. HT-R392 can be used to repair pcb with high temperature demand or lead free reworking The Hot air nozzles can be rotated 360 degrees, easy to replace.They have a variety of sizes, special requirements can be customized. HT-R392 bga rework station can repair motherboard for laptop, desktop motherboards, and other large circuit board repair, and mobile phones and other micro-chip board service. Belw is the technical details for HT-R392 Total Power: 3800W The upper part of heating power: 800W The bottom of the heating power: 800W, the bottom of the infrared heating power: 2200W Power supply: single phase 220V AC 50/60HZ 3KVA Size: the body parts of 500 * 420 * 550MM Temperature control: high-precision K-type thermocouple. Positioning: V shaped slot PCB positioning, the maximum size of 320 * 375MM meet PCB Package inside: 1set machine machine(honton ht-r392) 5pcs air nozzles (25*25 29*29 34*34 40*40 50*50mm ) 1set Flexible fixture 1pcs temperature thermocouple 1pcs Software CD 1pcs AC Adapter 1pcs USB cable 1pcs manual
