Hot Product At2816a High Frequency 50hz-200khz Digital Lcr Meter Tester, New

US $1,818.88

China, China
Jan 29th

Open on mobile:
QR code

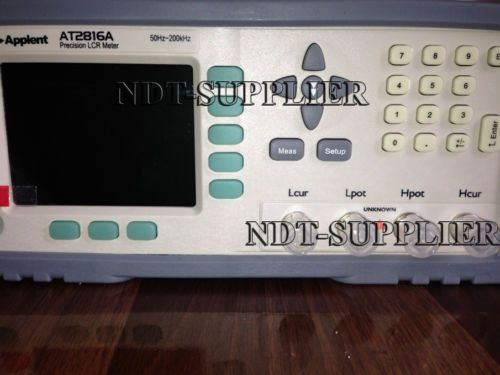

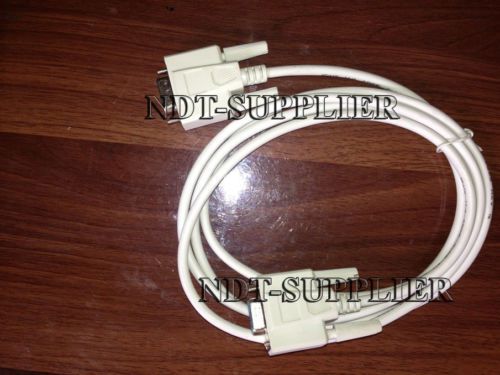

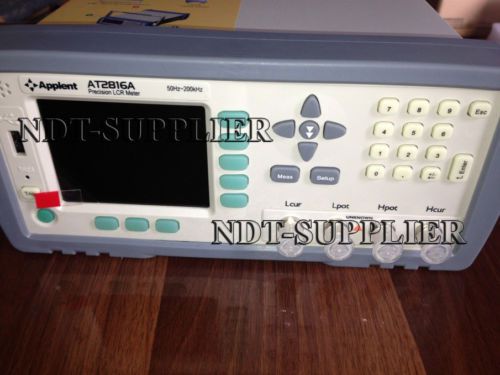

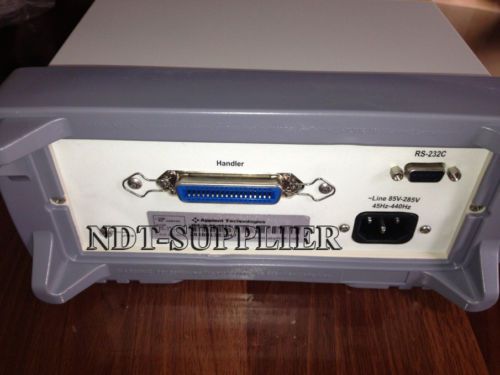

Hot Product AT2816A High Frequency 50Hz-200kHz Digital LCR Meter Tester, New General Introduction: l The AT2816A is the use of a high-performance processors and 3.5" TFT LCD screen smart LCR Meter. Since the SMD technology makes AT2816A portability. We rely on highly skilled technical, so that the instrument even more outstanding performance. l AT2816A offers wide frequency range (50Hz~200kHz 0.001Hz Step), programmable signal level (0.01V to 2.00V), auto range with 9 ranges, 30?/50?/100? constant output impedance and easy-to-use operation system. l Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analysis the test results. Features: TFT-LCD Display Correction: OPEN and SHORT Comparator Function: 10 files,14 bins: P1~P9,NG,AUX, HI, IN, LO Interface: RS232C and Handler Optional Interface: USB Optional Interface: USB Avarage rate: 1~200times Measurement Terminal: 5 terminals Key lock function Specifications: Parameters Cs-Rs, Cs-D, Cp-Rp, Cp-D,Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-?rad, Z-?deg Monitor Parameters Z, D, Q, ?r, ?d, R, X, G, B, Y, Vac, Iac, ?, ?% Accuracy 0.05% ±5 dgt Frequency 50Hz - 200kHz (continuous frequency with resolution of 0.001Hz) Display Range L: 0.00001?H-999999H C: 0.00001pF - 999999?F R,Z: 0.00001? - 99.9999M? D,Q: 0.00001 - 999999 ?(deg): -179.999 °-179.999 ° ?(rad): -3.14159 – 3.14159 ?%: -999999% - 999999% Source Resistance 30?, 50?, 100? Range 9 ranges, Automatic, Manual, Nominal Max Reading 6 dgt, principle parameter: 999999; sub parameter: 999999; monitor parameter: 999999 Signal Source 0.01V - 2.00V (10mV Step) Speed 30 times/second, 10 times/second, 6 times/second, 3 times/second 1 - 256 times average is available Comparator 14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG Count function: Max - 999999 List Scanning 10 groups frequency and level scanning test Adjustment Open/Short frequency reset, 3 point frequency and load correction Files 10 group files to save users' setting, 1 group to save system data real-time Interface RS232C, ExHandler Interface, standard USB disc interface (article 10000 data) Others LCR automatic select, keypad lock, SCPI instruction set, true-color TFT-LCD display GENERAL FEATURES Power Supply Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VA Dimension & Weight 264mm(Width)x107mm(Height)x350 mm(Depth); 4kg ORDERING INFORMATION Accessories ATL501: Test cable ATL607: Test Fixture ATL600: Short-circuit device ATL801: 232 Communication cable Optional Accessories ATL608 SMD patch clamp ATL508: SMD patch test clip ATS810A: Data acquisition software ATL508A: SMD patch test clip Standard Configuration: Name Specification Quantity Remark LCR Meter AT2816A 1 User’s Guide 1 Test Report 1 Warranty Paper 1 AC Power Lord 1 Fixture ATL607 1 Short Bar Included RS232 Communication Cable ATL108 1 1.8m Fixture ATL501A 1 0.8m Fixture ATL508A 1 0.8m Fuse 3 A SB 1 PAYMENT We accept paypal or other payment terms. If there is any import duties or taxes,it is the buyer's responsibility. Please make payment within 5 days after you place your order. Please DO NOT place your order if you are NOT intend to buy. SHIPPING & DELIVERY We will ship out the unit to you by EMS or FedEx or DHL. It will decided by seller according to your location.(EMS Service Only for Russian Customers) We will ship out the unit to the Express company first, it will take about 2-3 days, and then express company will deal with the package, so you can check the tracking number online after about 4 days. Please note this. CONTACT US Welcome!! Please read ALL POLICIES of us before your purchase. If you have additional questions or concerns about this item, please contact us via email. We will response the most E-mail within 24 hours. RETURN POLICY If the item is defective, please notify us within 7 days after the receipt of the item. The item shall be return in its original condition, in order to get it refunded or replaced.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	AT2816A
Country of Manufacture	China
