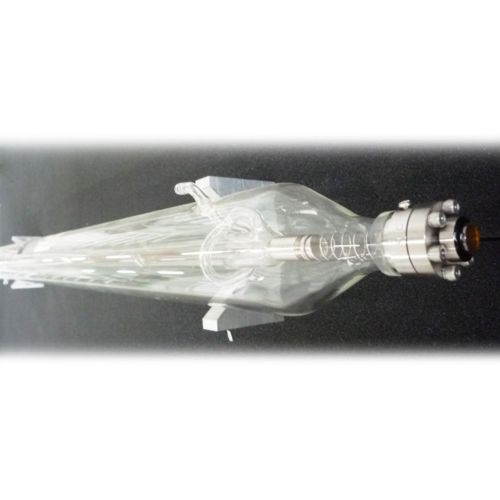

Hot RECI CO2 Engraving Laser Tube 180W Z8, Water Cooling for Laser Engraving Cut, US $2,699.90 – Picture 0

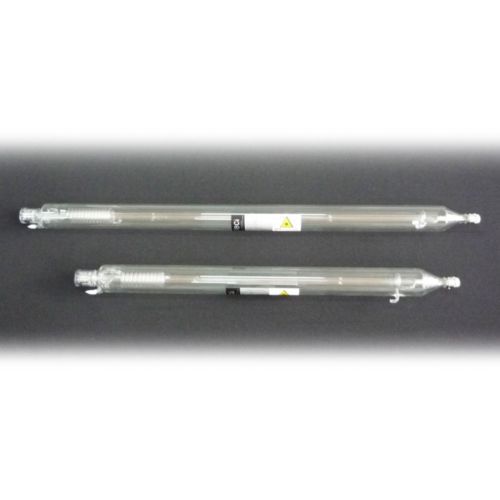

Hot RECI CO2 Engraving Laser Tube 180W Z8, Water Cooling for Laser Engraving Cut, US $2,699.90 – Picture 1

Hot RECI CO2 Engraving Laser Tube 180W Z8, Water Cooling for Laser Engraving Cut, US $2,699.90 – Picture 2

Hot Reci Co2 Engraving Laser Tube 180w Z8, Water Cooling For Laser Engraving Cut

US $2,699.90

??, ??, China
Jan 30th

Open on mobile:
QR code

180W CO2 Laser Tube Rated power 170w and Maximum power 195w Maximum10, 000 Hours Life Span Better Performance Higher efficiency Highlights: Output Power: Its output power can reach 180w. The production process of the tube is standardized, so the output power and output model are guaranteed. (For other laser tube manufacturers: can’t provide this product) Long lifespan: We have catalyst plating in the inner wall of the laser tube. Designing lifespan is 10,000 hours and the warranty is 10 months. (For other laser tube manufacturers: can’t provide this product) Appearance: The tube is sealed by metal material. It is industrial product. Tube frame: Not available High photoelectric conversion rate: The output power will decrease for less than 3w when the cooling water’s temperature is 42°C. Its heat productivity is lower than 100w tubes of other brands. (Other brands: The output power decrease rapidly when the cooling water’s temperature is 42°C) Auxiliary engraving function: It can compare with 80w laser tubes of other manufacturer. The tube can engrave with 5mA working current when there is still no laser beam in the laser tube. (Other brands: No engraving function) Warranty: 10 months, international warranty service, Reci charges the freight for exchanging the defect tube. (For others laser tube brands: warranty for 3 months, no international warranty service) High performance cost ratio: High output power, high efficiency, and high performance cost ratio. Operating Instruction 1. Installation Requirement 2. Make sure to follow the operation instructions of model Z8 as shown in the illustration. The dedicated power DY20 should be equipped. The positive pole is in high voltage (The ignition voltage is 30kv). It may cause the following consequence when it is failed to follow the instruction: Arcing; the inner tube will be punctured by electricity and may cause water leakage. 3. Operation conditions • Water cooling: using purified water; 3 to 5 liter/minute; water temperature: 10°C-40°C. • The operating environment: temperature 2-40°C, humidity 10-60%. • The working current: Test current is 29mA. Maximum working current is 32mA. The running current must be kept below 30mA. The life span can reach 10,000 hours if the current is kept below 28mA. The ammeter indicating current must be connected to the negative electrode of the laser tube. • When it is working under over-high current for long term, the negative pole will appear purple, and the life span will be reduced rapidly. • To protect dust from going into the insulation sheath, please wrap it with plastic film. 4. Working Performance • Cutting function. • Engraving function: Very good, when the working current is 4mA and the tube is in the state of preionization, the laser can be used for high-frequency impulse engraving. 5. Key Notes Do not clean the exterior surface of the output widow mirror with tools such as tampon; otherwise the output power will be seriously affected. The followings are the designated methods to clean up pollution in the exterior surface of window mirror: 1) When the mirror is polluted, do not turn on the laser. 2) Blow the mirror surface sideway with air blower. 3) Spray the pure alcohol on the mirror surface with sprayer. 4) Turn on the laser after the alcohol gets fully volatilized. 5) If the methods above don't work effectively, it is necessary to ask for the professional to use tampon with alcohol to clean the mirror surface from middle to edge. The best solution is to prevent the window from being polluted. Attention: It is forbidden to clean the mirror with acetone. The screw in the front and back ends of the laser tube is not allowed to be moved, otherwise the out power will be declined and even the tube may be scrapped. Put the acryl 300mm far away from output mirror, when testing the laser spot. 6. Safety The laser beam is invisible light. Please wear protective glasses when debugging the laser. The positive pole is in high voltage. Pay attention to the security marks. 7. Storage and Transportation Requirement Pour out cooling fluid in the event of storage and transportation, and cover the output terminal with a dust-proof plastic bag. The storage environment is 2-40°C, and the requested humidity is 10-60%. Pack the laser as in the original way. Important notes: It is requested to cement the sponge together with laser tube to prevent the tube vertically sliding during transportation. The sponge in the side of output mirror must be 70mm beyond it, and the sponge in the side of reflecting mirror must be 50mm wider. 8. Tubes operated in wrong way will not be guaranteed by us. Specifications for industrial CO2 laser tubes Model CS-LT-Z8 Length 72.8" (1850mm) Outer Diameter ?90mm (3.54") ± 2mm Ignition Voltage 30kv Operating Current Test current is 29mA. Maximum working current is 32mA. The running current must be kept below 30mA. The life span can reach 8,000 hours if the current is kept below 28mA. Power Output Rated power 170w and Maximum power 195w Power Stability

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	CS-LT-Z8
Country/Region of Manufacture	China
