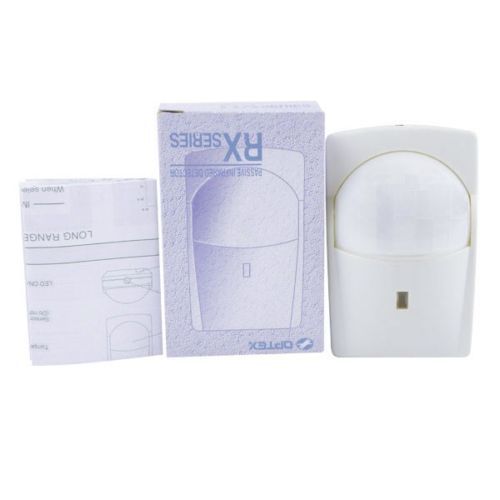

HOT RX-40QZ Infrared PIR Motion Detector Sensor Wired Security muti-focus lens, US $11.99 – Picture 0

HOT RX-40QZ Infrared PIR Motion Detector Sensor Wired Security muti-focus lens, US $11.99 – Picture 1

Hot Rx-40qz Infrared Pir Motion Detector Sensor Wired Security Muti-focus Lens

US $11.99

Shenzhen, China
Jan 30th

Open on mobile:
QR code

RX-40QZ Infrared PIR Motion Detector Sensor Wired Security Thank you for your bidding first! You are welcome to our store. All our items are at very low price with high quality! Description RX-40QZ adopted the technology "four partition logic", that based on the OPTEX "multiple focusing optics". It make detector high reliability even in poor environmental conditions. it suitable for the application of the residential area. MAX Wide Range: 40''x 40''/12mx12m Quad zone logic Patented muti-focus lens Improved sealed optics Temperature compensation logic Model type RX-40QZ wired Working temperature -20~50 degrees celsius Power input 9.5~16v DC 11mA @ 12V DC coverage Wide: 40x40ft (12mx12m) 85 ° angle Detector zones Wide:78 zone Sensitivity 3.6 ° F(2 ° C) 2ft/sec(0.6m/ec) Detection speed 1~5ft/sec (0.3~1.5m/sec) LED alarm indicater Switch-able on/off Alarm period Approx 2.5sec Alarm output NC, 28VDC 0.2A max Tamper switch NC, open when cover is removed Pulse count Approx. 20sec. 2 or 4 Warm up period Approx. 30sec RF interference NO Alarm 20V/m Appearance size 100x65x45mm Installation Notice: A correct installation position should be avoided in the following areas: outdoor, have a pet place near, air conditioning, heat source, near the sun point-blank place, rotating objects below. installation surface should be strong, and do not shake, detector should be installed in the invaders easily through the places. detector support should be fixed on the wall with screws detector should be hung up, turn on the power switch can work normally Package Includes 1 x RX-40QZ IR detector Terms and Conditions On Sep-04-14 at 18:49:22 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	RX-40QZ
Detector zones	Wide:78 zone
Type	Motion Detectors
Sensitivity	3.6 ° F(2 ° C) 2ft/sec(0.6m/ec)
Country of Manufacture	China
Detection speed	1~5ft/sec (0.3~1.5m/sec)
Model type	RX-40QZ wired
LED alarm indicater	Switch-able on/off
MAX Wide Range	40''x 40''/12mx12m
Alarm output	NC, 28VDC 0.2A max
Working temperature	-20~50 degrees celsius
Warm up period	Approx. 30sec
Power input	9.5~16v DC 11mA @ 12V DC
RF interference	NO Alarm 20V/m
coverage	Wide: 40x40ft (12mx12m) 85 ° angle
