Hot Siglent Sds1102cnl Digital Oscilloscope 100mhz 2ch 1gs/s Usb 7" Tft Lcd

US $1700

Canton, China
Jan 29th

Open on mobile:
QR code

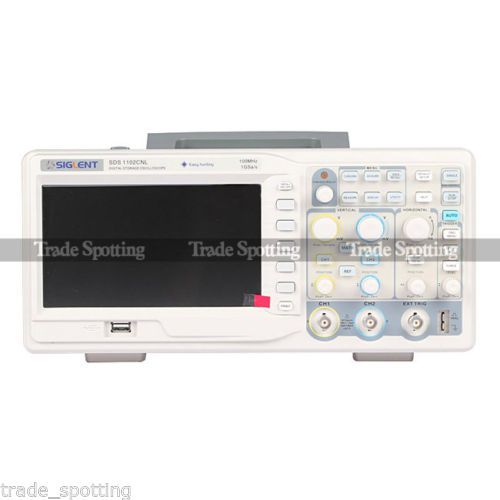

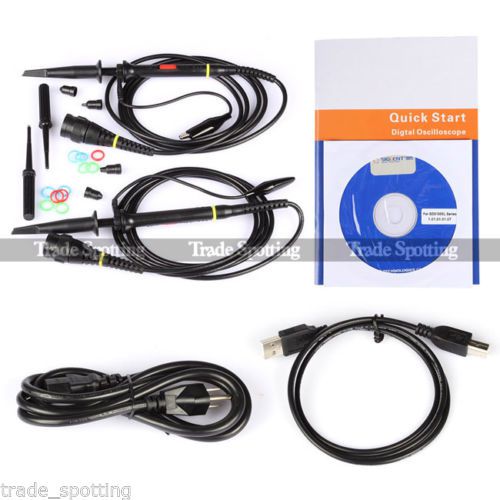

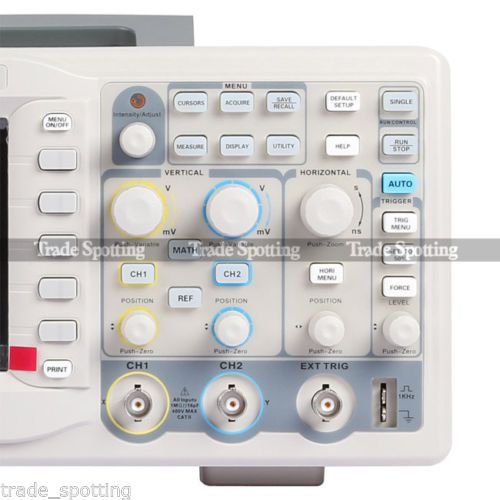

Trade_Spotting is a well-known online brand specialized on development board and professional test equipments. As a professional and reliable eBay seller, we source from SainSmart's manufactory directly before testing and packing. SIGLENT SDS1102CNL Digital Oscilloscope 100MHz 2Ch 1GS/s USB 7" TFT LCD Note:Expedited Shipping Via UPS,DHL,EMS..3-5 Biz days to USA Features and Benefits: Up to 100MHz Bandwidth 1GSa/s sample rate 7''TFT-LCD display, 8*18 grids Channels: 2CH+1EXT Memory Depth: 40Kpts, 5Kpts/CH (SDS1202CNL) 6 digits hardware frequency counter, real time counting display Support SCPI programming command control Interface: USB Device, USB Host, RS-232, Pass/Fail Unique digital filter and data recorder function Embedded 12 languages, online help, one key storing and one key printing Specification Model SDS1072CNL SDS1102CNL SDS1202CNL Bandwidth 70MHz 100MHz 200MHz Channels 2CH+1EXT Real time sampling rate 1GSa/s 1GSa/s (each channel) Equivalent sampling rate 50GSa/s Memory depth 40kpts 5kpts/CH Rise time < 5ns < 3.5ns < 1.7ns Input impedance 1M–17pF 1M–14pF, 50 Time base range 5.0ns/div-50s/div 2.5ns/div-50s/div Scan: 100ms-50s/div Vertical sensitivity 2mV-10V/div 2mV - 5V/div Vertical resolution 8bit Trigger source CH1, CH2, Ext, Ext/5, AC Line Trigger types Edge, Pulse, Video, Slope, Alternative Math Operation +, -, —, ·, FFT Digital filter High pass, Low pass, Band pass, Band Stop Max input voltage ±400V(DC+AC Pk-Pk), CAT I, CAT II Internal storage 2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms 2 groups of reference waveform, 20 groups of settings, 20 groups of waveforms External storage Bitmap save, CSV save, Waveform save, Setting save Language English, French, German, Russian, Spanish, Simplified Chinese, TraditionalChinese, Portuguese, Japanese, Korean, Italian, Arabic Interface USB Host, USB Device, RS-232, Pass/Fail out Display 7 inches(178mm) color TFT(480*234) LCD Power AC 100-240V, 45Hz-440Hz, 50VA Max PC software Can through the computer remote control oscilloscope, extraction waveform analysis data Remark With original source seamless connection, form signal collection, produce integration system Application 1. Electronic circuit design and debugging 2. Electrical circuit function test 3. Inspect instantaneous signal 4. Industrial control and measuring 5. Products quality control 6. Education and training 1,The oscilloscope cannot start? First, check the power cord and power strip, check the power switch to make sure it is open (SDS1000CFL series has a power switch and a power protection switch). To judge whether the machine is powered on through checking fan’s working status, if the fan works, the machine is powered on. If everything is normal but the oscilloscope still cannot start, please contact the after sale service. 2,The screen does not appear waveform during the signal acquisition? 1) Check the connection of the probes and signals. 2) Check the connection of the signal cable and BNC. 3) Check the connection of the probes and objects. 4) Check whether the object generates signals 5) Repeat the acquisition 6) Check the trigger status 3,Waveform is appeared but not stable 1) Check the trigger source channel panel is consistent with the actual signal path. 2) Manually adjust the LEVEL trigger knob to see whether the waveform is stable. 3) Use AUTO to adjust the waveform automatically to see whether the waveform is stable 4) Adjust time base, rule out false-wave interference 4,Amplitude is not exactly 1) Check the unit of source amplitude, the default unit is Vpp of aumo measurement which means difference between the highest and lowest value, the effective value. For example, commercial power we say is 220Vrms but the Vpp is over 600V 2) Oscilloscope is not an accurate measurement tool, according to chip digit the vertical axis will have quantization error. 5,Distortion is big when check high frenquency signal 1) Distortion is bigger when measuring signal near toplimit of oscilloscope bandwidth. Usually bandwidth should be greater than or equal to five times bandwidth of measuring signal, at that time the distortion will be very small. 2) Wrong probe will lead to distored waveform. At first bandwidth of probe should be greater than signal bandwidth, it would be best if it is greater than or euqal five times. And then, if probe is divided into 1X and 10X, 1X is usually 6MHz-10MHz, 10X is the maximum bandwidth of probe. 6,Waveform is interfered when measuring small signal 1) Siglent SDS1000 series can measure mV signal. It will turn on bandwidth limitation function at 2mV/div and filter high frequency clutter. 2) Contact clip to reference earth of signal which can reduce the distortion because of electric difference between oscilloscope and measuring signal. SDS Oscilloscopes SDS1052DL 50MHZ Bandwidth 500MSa/s Sampling 32K Memory Depth Color TFT(480*234)7" LCD SDS1102CNL 100MHz Bandwidth 1GSa/s Sample Rate 40Kpts Memory Depth Color TFT(480*234)7" LCD SDS1072CML 70MHz Bandwidth 1GSa/s Sample Rate 2Mpts Memory Depth Color TFT(480*234)7" LCD SDS1102CML 100MHz Bandwidth 1GSa/s Sample Rate 2Mpts Memory Depth Color TFT(480*234)7" LCD SDS1202CNL+ 200MHz Bandwidth 2GSa/s Sample Rate 18Kpts Memory Depth Color TFT(480*234)7" LCD SDS1074CFL 70MHz Bandwidth 2GSa/s Sample Rate 24Kpts Memory Depth 4 Channels + 1 EXT Trig SDS2072 70MHz Bandwidth 2GSa/s Sample Rate 28Mpts Memory Depth 2 Channels + 1 EXT Trig SDS2074 70MHz Bandwidth 2GSa/s Sample Rate 28Mpts Memory Depth 4 Channels + 1 EXT Trig SDG Signal Generator SDG810 10MHz Frequency Output 125MSa/s Sample Rate 16 Kpts Wave Length 4.3 Inch TFT LCD SDG1020 20MHz Frequency Output 125MSa/s Sample Rate 16 Kpts Wave Length 4.3 Inch TFT LCD SDG1025 25MHz Frequency Output 125MSa/s Sample Rate 16 Kpts Wave Length 4.3 Inch TFT LCD SDG1050 50MHz Frequency Output 125MSa/s Sample Rate 16 Kpts Wave Length 4.3 Inch TFT LCD Power Supply SPD-3303C 0-30V Voltage Range 0-3A Current Range 195W Output Power 3 Channels SPD-3303D 0-30V Voltage Range 0-3A Current Range 4 Digits Voltage Display 3 Digits Current Display Shipping Payment Return Feedback Communication 1.Item will be shipped within 1-2 working days after full payment is cleared. Tracking number will be sent to all customers upon package shipment. 2.Delivery time is different in accordance to shipping address and shipping methods. -Economy shipping from China: about 20-30 biz days. -ePacket delivery (EUB) from China to US: about 10-15 biz days. -Expedited shipping from China takes about 3-5 biz days via DHL/UPS and 9-15 biz days via EMS. -Standard shipping (Royal Mail Tracked) from UK warehouse to local customers: about 3-5 biz days. -Standard shipping from US warehouse: about 3-7 biz days. -Expedited shipping from US warehouse: about 3-5 biz days. 3.Delivery time depends on destination,logistics mode and other factors. If you have not received your shipment within 30 days from payment, please feel free to contact us. We will track the shipment and get back to you as soon as possible with a reply. Customer`s satisfaction is our goal. 1. We accept payment via PAYPAL ONLY which provides full-scale buyer protection policy up to $500. We only ship to confirmed PAYPAL addresses.Please makesure payment address in PayPal is correct. 2. All major credit cards are accepted through our secure payment processor PayPal. 3. Payment must be received within 7 business days of auction closing. 1.60 days money back return policy. If you are not satisfied when you?receive your item, please return it within 60 days for a replacement or money back. Please contact us for return address before you send it back. 2. If item defective, in 3 months we will send you a replacement without extra charge, or offer refund upon faulty received. after 3 months you are still welcomed to send it back to us for exchange. Buyer may responsible for all return shipping costs. 3.In case you receive wrong products due to shipping error, please contact us for exchange or refund. If it's damaged , please refuse to accept and contact us as soon as possible. Please email us before leaving any negative feedback or open any dispute on PayPal. We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately. We try our best to reply to your emails as soon as possible. If you do not receive any reply from us, please check your email ensuring your mailbox has not reached full size. You can contact us by Ebay messages are strongly recommended.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Siglent
Rise time	< 3.5ns
Model	SDS1102CNL
Input impedance	1M??17pF
Bandwidth	100MHz
Time base range	5.0ns/div-50s/div
Channels	2CH+1EXT
Vertical sensitivity	2mV-10V/div
Real time sampling rate	1GSa/s
Vertical resolution	8bit
Equivalent sampling rate	50GSa/s
Digital filter	High pass, Low pass, Band pass, Band Stop
Memory depth	40kpts
Display	7 inches(178mm) color TFT(480*234) LCD
