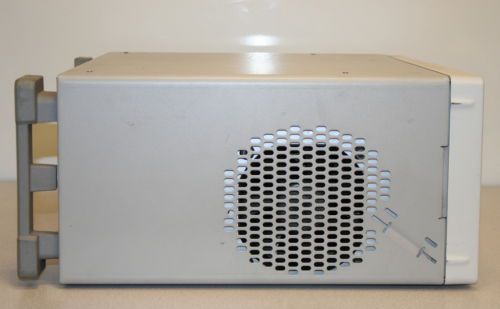

HP Agilent 54820A infinium oscilloscope 500 MHz 2GSA/s DSO digital, US $1,374.95 – Picture 0

HP Agilent 54820A infinium oscilloscope 500 MHz 2GSA/s DSO digital, US $1,374.95 – Picture 1

HP Agilent 54820A infinium oscilloscope 500 MHz 2GSA/s DSO digital, US $1,374.95 – Picture 2

HP Agilent 54820A infinium oscilloscope 500 MHz 2GSA/s DSO digital, US $1,374.95 – Picture 3

HP Agilent 54820A infinium oscilloscope 500 MHz 2GSA/s DSO digital, US $1,374.95 – Picture 4

Hp Agilent 54820a Infinium Oscilloscope 500 Mhz 2gsa/s Dso Digital

US $1,374.95

Irvine, California, United States
Jan 29th

Open on mobile:
QR code

Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge WE ARE OFFERING A $500 DISCOUNT ON THIS ITEM. YOU MUST CONTACT US TO DISCUSS THIS DISCOUNT PRIOR TO PURCHASE TO BE GRANTED THE DISCOUNT. NO EXCEPTIONS. 128 Mb Memory upgrade New hard disk The Agilent Infiniium family's 54820A oscilloscope 2 channel, 500 MHz, 2 GSa/s offers the versatility and performance you need for general purpose design and troubleshooting. 2 channels, 500 MHz bandwidth, and a sample rate of 2 GSa/s on both channels simultaneously ensures fast, accurate capture of your waveforms. Like the other Infiniium models, the Agilent 54820A's easy, familiar user interface makes it easy to take advantage of the performance inside. Acquisition: Maximum Effective Sample Rate Equivalent Time:100 GSa/s Memory Depth:32,768 points/channel Maximum Sample Rate Real Time:2 GSa/s on each channel Vertical: Dynamic Range:± 12 div from center screen Input Impedance:1 Mohm ± 1% (~8 pF), or 50 O ± 1% Number of Channels:2 (simultaneous acquisition) Analog Bandwidth (–3dB):500 MHz Real Time Bandwidth:500 MHz Rise Time:700 ps Sensitivity: 1 Mohm:1 mV/div to 5 V/div 50 ohm:1 mV/div to 5 V/div Maximum Input Voltage: 1 Mohm:± 250 V (dc + ac) [ac<10 kHz], CAT I 50 ohm:5 Vrms, CAT I Horizontal: Main Time Base Range:500 ps/div to 20 s/div Horizontal Position Range (pre-trigger):0 to -1 s or one full screen width, whichever is larger Horizontal Position Range (post-trigger):0 to 1 s or one full screen width, whichever is larger Delayed Sweep Range:1 ps/div to current main time base setting Delayed Sweep Delay Range:Within main time base acquisition record Resolution:10 ps Time Base Accuracy:50 ppm (0.005%) General Characteristics: Temperature: Operating:0°C to +50°C Non-operating:–40°C to +70°C Humidity: Operating: Up to 95% relative humidity (non-condensing) at +40°C Non-operating :Up to 90% relative humidity at +65°C Power:Voltage: 100-240 VAC, ± 10%, Cat II, 47 to 440 Hz; Max power dissipation: 390 W Weight Net:10.6 kg (23.4 lb), Dimensions (excluding handle):Height: 216 mm ( 8.50 in); Width: 437 mm (17.19 in); Depth: 440 mm (17.34 in) Note: In some cases if your country does not appear in the list of shipping options, or if a price is not calculated correctly, we still may be able to ship to you for a reasonable price. Please contact us prior to purchasing to get a more exact shipping quote. We often use Fedex Economy International, which is cheaper than UPS International. However, UPS is the only option available for calculating very large international packages on eBay. inkfrog terapeak i000000
