Hp Agilent Extender Board Kit For Model 4195a Spectrum Analyzer Substitute

US $5500

  • Tiverton, Rhode Island, United States
  • Feb 15th
Open on mobile:
QR code

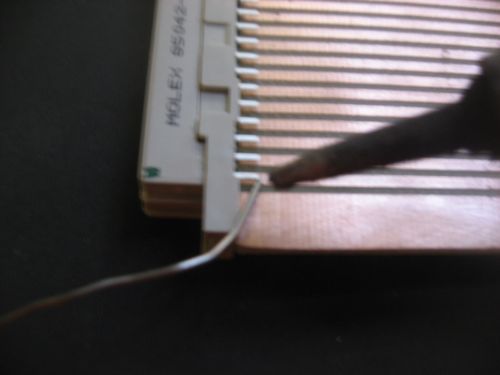

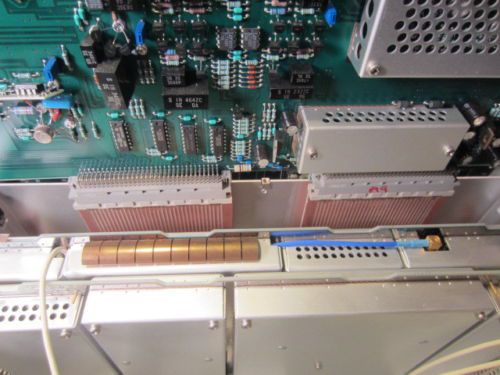

HP AGILENT EXTENDER BOARD KIT for Model 4195 Spectrum Analyzer substitute Kit consists of: Two double sided boards with 32 traces on each side. Two single sided boards with 32 traces on one side. Two 96 pin male connectors Two 96 socket female connector. The above parts is what is required to build the extender in the photo times two.  Two are needed to extend the larger boards of the HP 4195. Note that this is a KIT and involves making 384 solder connections.   I AM TAKING ORDERS AT THIS TIME.  TWO KITS HAVE BEEN PRODUCED, BUILT AND PUT INTO SERVICE AT THIS TIME.  BEFORE PURCHASING MORE PARTS I WOULD LIKE TO BE SURE THERE IS A DEMAND FOR THIS ITEM. If you are a winning bidder DO NOT pay at the end of the auction.  Instead I will order connectors and notify the buyer when the kit is ready to ship. I can also ship a pair of completed extender pair but because of the labor involved this approximately doubles the price.  Please write for a building fee quote. As always satisfaction assured.  If the end result is not up to expectation a full refund will be issued. I look forward to hearing from you with any suggestions regarding this offering. Thanks and best regards John WA1ESO
