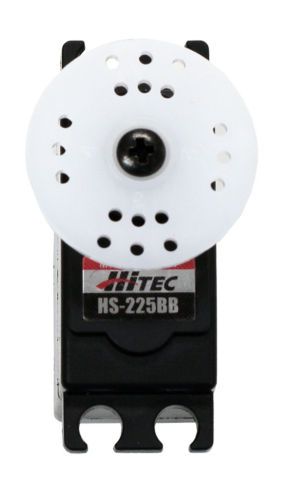

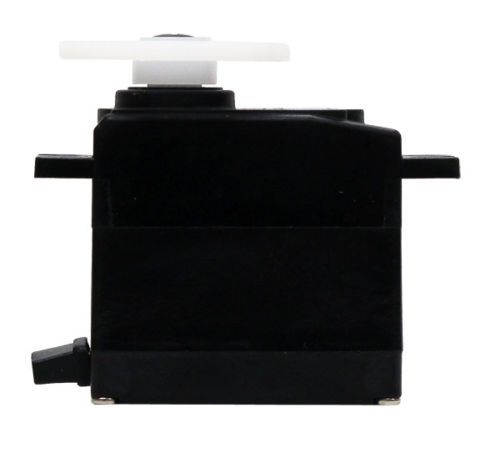

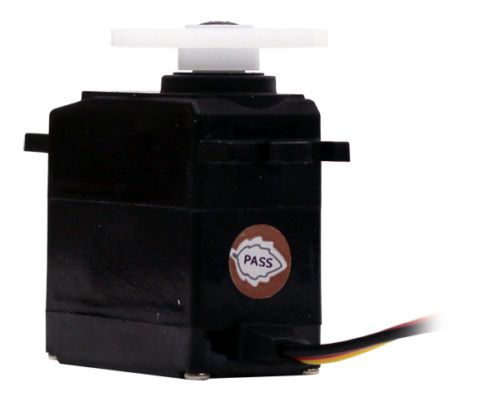

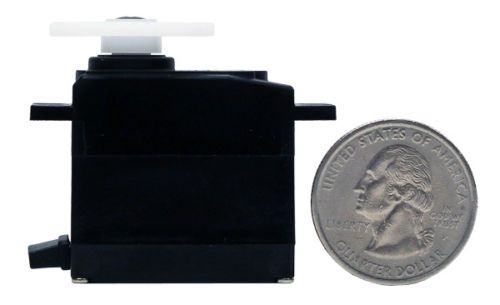

Hs-225bb Mighty Mini Servo (67 Oz-in @ 4.8 V) By Servocity # 31225s0

US $17.99

  • Winfield, Kansas, United States
  • May 8th
Open on mobile:
QR code

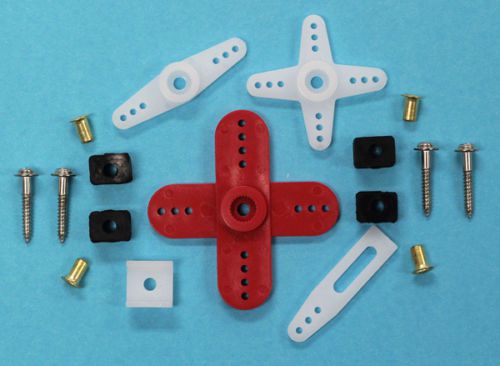

 67 oz-in.    0.11 sec/60° HS-225BB servos have been around for sometime now and for a good reason, performance and durability. This little servo offers the same and sometimes more power than standard size servos. The main gear rests on a single ball bearing on top and a bronze bearing on the bottom. The spline is standard Hitec 24 tooth so any standard Hitec horn or arms will fit perfectly.   Shown above with accessory hardware pack  Servo Specifications Control System: +Pulse Width Control 1500usec Neutral Required Pulse: 3-5 Volt Peak to Peak Square Wave Operating Voltage: 4.8-6.0 Volts Operating Temperature Range: -20 to +60 Degree C Operating Speed (4.8V): 0.14sec/60° at no load Operating Speed (6.0V): 0.11sec/60° at no load Stall Torque (4.8V): 54.15 oz/in. (3.9kg.cm) Stall Torque (6.0V): 66.65 oz/in. (4.8kg.cm) Operating Angle: 45 Deg. one side pulse traveling 400usec Continuous Rotation Modifiable: No Direction: Clockwise/Pulse Traveling 1500 to 1900usec Current Drain (4.8V): 8mA/idle and 300mA no load operating Current Drain (6.0V): 8.8mA/idle and 340mA no load operating Dead Band Width: 8usec Motor Type: 3 Pole Ferrite Potentiometer Drive: Indirect Drive Bearing Type: 1 Ball Bearing and 1 Oilite Bushing Gear Type: Nylon Connector Wire Length: 11.81" (300mm) Dimensions: 1.27" x 0.66"x 1.22" (32.4 x 16.8 x 31mm) Weight: 0.95oz (27g)    This servo can operate 180° when given a pulse signal ranging from 600usec to 2400usec.  Since most R/C controllers cannot generate this wide of signal range, you will need to use our servo stretcher for 180° operation A = .660” (16.77mm) B = .470” (11.95mm) C = 1.06” (26.94mm) D = .310” (7.87mm) E = .328” (8.35mm) F = .942” (23.94mm) G = .380” (9.66mm) H = .932” (23.69mm) J = 1.735” (44.07mm) K = .283” (7.20mm) L = .175” (4.45mm) M = 1.27” (32.53mm) X = .115” (2.93mm)
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand ServoCity
MPN 31225S0
Model HS-225BB
