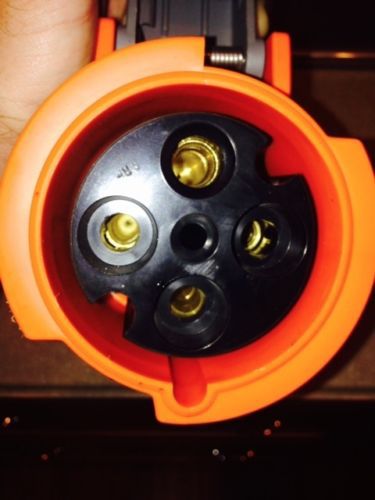

HUBBELL 4100C12W Generator Connector 100A 125V/250Volt 3P 4W NEW, US $175.00 – Picture 0

HUBBELL 4100C12W Generator Connector 100A 125V/250Volt 3P 4W NEW, US $175.00 – Picture 1

HUBBELL 4100C12W Generator Connector 100A 125V/250Volt 3P 4W NEW, US $175.00 – Picture 2

HUBBELL 4100C12W Generator Connector 100A 125V/250Volt 3P 4W NEW, US $175.00 – Picture 3

Hubbell 4100c12w Generator Connector 100a 125v/250volt 3p 4w New

US $175.00

Indialantic, Florida, United States
Jan 29th

Open on mobile:
QR code

This auction is for the above listed item. The item is new, but may show signs of handling wear. Product Type IEC Product Type Watertight Service Style Standard Device Connector Amperage 100A Voltage 125/250V Poles and Wires 3 Pole, 4 Wire Terminal Accommodations #3 To #1/0 AWG copper wire only Cord clamp range 1.065" To 1.940" Color Replacement Interior Number IN4100CF Housing Zytel 801 Nylon Contact Carrier High-Impact Thermoset Retainer High-Impact Thermoset Terminal Screws Stainless Steel (300 series) Assembly Screws Stainless Steel (300 series) Gaskets Solid Neoprene Cord Clamps Rynite SST35 Grommet/Glands Solid Neoprene Cover Arm Rynite SST35 Arm Spring Stainless Steel (17-1 Type) Cord Clamp Screws Stainless Steel (300 Series) Clamp Nut Nickel Plated Brass Cover Rynite SST35 Cover Screw/Rivet Nickel Plated Brass Rotating Sealing Disc Polycarbonate Ground/Phase Sleeve Brass Pin/Sleeve Spring Beryllium Copper multi-contact insert with silver plating. Certification UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets, LR285C for Receptacles, CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, IEC Dielectric Withstand Voltage Withstands 3,000V AC Min. Max Working Voltage 600V RMS (i.e.minimum creepage distance 10 mm minimum) Current Interrupting Certified for current interrupting at full rated current. Temperature Rise Max 30° C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%. Endurance 5,000 connect and disconnect cycles with load for 16A and 20A, 1,000 cycles with load and 1,000 cycles w/o load for 30A, 32A, 60A and 63A, and 250 cycles with load and 250 cycles w/o load for 100A and 125A. Impact Resistance Per CSA C22.2 No. 182.1 / UL1682. Cord Grip Retention Per CSA C22.2 No. 182.1 / UL1682. Cord Accommodation Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards. Terminal Identification Terminals identified in accordance with North American and IEC conventions. Product Identification Identification and ratings are a permanent part of the device housing. Moisture Resistance Watertight per IEC 60309-1 Ingress Protection IP 67 Suitability Flammability HB or Better per UL 94 or CSA C22.2 No. 0.17 Operating Temperatures Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact. Certifications UL Listed, UL Standard 498 CSA Certified to CSA Spec. C22.2 No. 182.2 UL Classified to IEC 309-1 and IEC 309-2. Device Description Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service. UPC Number 78358540397 Weight in LBs 4.85

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“The item is New, but it does not have its original packaging and shows some signs of wear from being in a drawer in the Lazarette.”
