Humboldt Cbr Mechanical Loading Press Concrete Samples Laboratory Testing Equip

US $1,295.00

Hollywood, Florida, United States
Mar 3rd

Open on mobile:

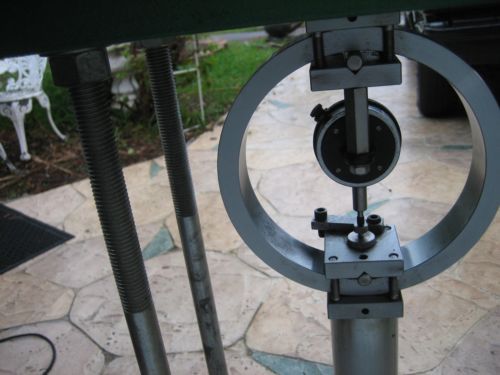

HUMBOLDT CBR MECHANICAL LOADING PRESS CONCRETE SAMPLES LABORATORY TESTING EQUIPMENT THIS PIECE OF EQUIPMENT RETAILS FOR A BASE PRICE OF $2220.00 PLUS SHIPPING. I HAVE A BUY IT NOW OF $ 1295.00 SHIPPED TO YOUR DOOR WITHIN THE UNITED STATES.... ********THATS A $ 1000.00 SAVINGS******* I'VE CHECKED MULTIPLE SITES AND NEVER AT ANY TIME HAS ONE OF THESE UNITS BEEN SOLD AS LOW AS THIS ONE. IF YOU ARE INTERESTED IN THIS TYPE OF MACHINERY I HAVE A FEW OTHERS I AM LISTING NOW... ESTATE FIND MANY OTHER ITEMS TO BE LISTED IMMEDIATELY! Introduction The Mechanical Compression Machine has been designed to provide a simple and reliable machine to cover a wide range of standard laboratory tests. The loading machine meets the apparatus requirements of ASTM D 1883 and AASHTO T193 allowing a steady rate of penetration load to be applied and load reading resolution of 10Ibf over a 10,000Ibf (44.5kN) range. The two-speed jack design of the press allows the following tests to be carried out: • California Bearing Ratio / Lime Bearing Ratio (CBR/LBR) • Unconfined Compression on 1.4" (38mm) diameter sample • Unconfined Compression on 2.8" (70mm) diameter sample • Soil–Cement • UU (Quick) Tri-axial on 1.4" (38mm) diameter sample • UU (Quick) Tri-axial on 2.8" (70mm) diameter sample • Marshall Stability and Flow Test General Information Inspection: Your Mechanical Loading Press compression machine was thoroughly inspected before it was shipped and should be ready to operate as soon as you have completed the set-up procedure. Notify Humboldt Mfg. Co. or your local agent and file a claim with any carriers involved if you find any damage to the machine. Physical Specification: Shipping weight: 120 Ibs. (54.4 kg) Overall height: 41 inches (1042mm) Base dimension: 13-1/4" x 8" x 2-1/4" (337 x 203 x 57mm) Initial Installation Remove the packing list and verify that all parts have been received. Normally you will receive one crate. Set the machine base up at the place it is to be used in the laboratory and then check that it is level by placing a spirit level on the platen. If it is not level adjust the resting surface under the machine. Assemble the jack handle to the appropriate shaft on the gearbox using the quick-release detent pin provided. Operation Speed Control: The input shafts extending from the front side of the gearbox drive the platen at the following rate(s) per turn of the crank: Right shaft: 0.0066 inch/revolution Left shaft: 0.0023 inch/revolutionnnmm Take readings of time versus travel at frequent enough intervals to control the rate of penetration or flow within the required test limits. Speed Selection: Test Type Speed in/min (mm/min) California Bearing Ratio/Lime Bearing Ratio (CBRlLBR) 0.050 (1.27) Unconfined Compression and UU Triaxial or plastic material on 1.4" (38mm) diameter sample 0.028 (0 .71) Unconfined Compression and UU Tri-axial for plastic material on 2.8" (70mm) diameter sample 0.056 (1.42) Soil - Cement 0.050 (1.27) UU (Quick) Tri-axial for brittle material on 1.4" (38mm) diameter sample 0.008 (0.22) UU (Quick) Tri-axial for brittle material on 2.8" (70mm) diameter sample 0.017 (0.43) Marshall Stability and Flow 2.000 (50.8) Direction of Travel: The direction of the platen is up for clockwise crank rotation and down for counterclockwise. Load Ring, Penetration Piston & Strain Gauge: The calibrated proving ring is attached directly to the cross-beam using the 3/4-16 x 7/8" long bolt and attached to the bottom of the ring is the penetration piston. A dial indicator holder is attached to the ring and a penetration dial is supplied attached with a bracket to the piston and is adjustable on it. Maximum Load: The Machine is rated at 10,000lbf (44kN). Accuracy Of Platen Speeds: The speeds used in the various test are in fact the closing gap speed, i.e., the distance between the cross-beam and the platen. These closing gap speeds will be dependent on the stiffness of the sample being tested and the compressibility of any load measuring device (such as the load ring). At high loads, some machine stretch may occur. The test speeds used should therefore, take into account these factors. Maintenance Both the jack unit and the gearbox are packed with grease and do not normally require further attention. The machine can generally be maintained by keeping it clean and lightly oiling the exposed threads. THIS PIECE OF EQUIPMENT RETAILS FOR A BASE PRICE OF $2220.00 PLUS SHIPPING. I HAVE A BUY IT NOW OF $ 1295.00 SHIPPED TO YOUR DOOR WITHIN THE UNITED STATES.... ********THATS A $ 1000.00 SAVINGS******* I'VE CHECKED MULTIPLE SITES AND NEVER AT ANY TIME HAS ONE OF THESE UNITS BEEN SOLD AS LOW AS THIS ONE. IF YOU ARE INTERESTED IN THIS TYPE OF MACHINERY I HAVE A FEW OTHERS I AM LISTING NOW... ESTATE FIND MANY OTHER ITEMS TO BE LISTED IMMEDIATELY! QUESTIONS ARE ENCOURAGED PLEASE ASK BEFORE YOU BID THANKS. SORRY NO INTERNATIONAL SHIPPING.. UNLESS WE DISCUSS PRICES VIA E-MAIL FIRST THANKS! I WILL COMBINE SHIPPING ON MULTIPLE ITEMS PURCHASED. I DO NOT SHIP OVER SEAS SORRY. DON'T FORGET TO CHECK OUT MY OTHER ESTATE FINDS. ADD ME TO YOUR FAVORITE SELLERS LIST. NEW ITEMS ADDED ALL THE TIME

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	HUMBOLDT CBR
MPN	H-4454A
Model	CBR H4454A
