Iko Lwl 12 4.5cm Travel Xy Stage With Theta And 22mm Z Actuator W/ Vacuum Tip

US $271.99

Leander, Texas, United States
Jan 29th

Open on mobile:
QR code

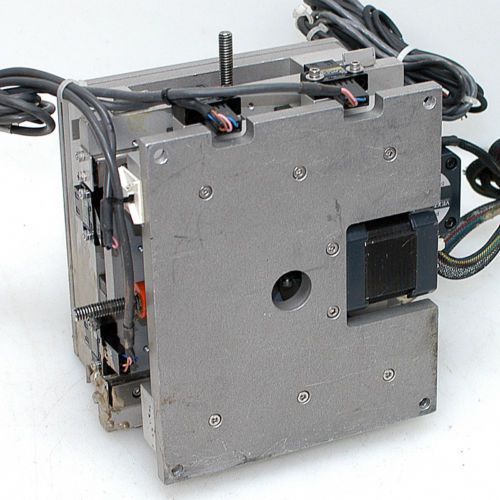

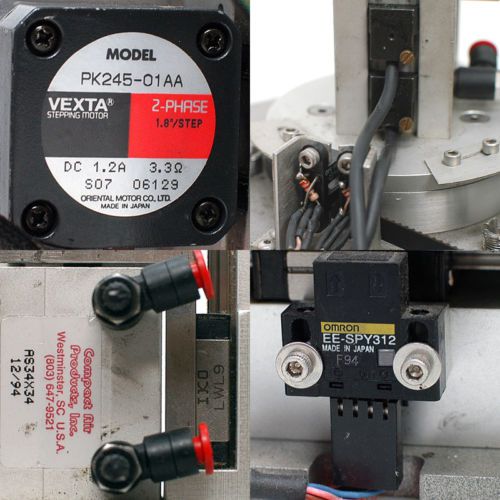

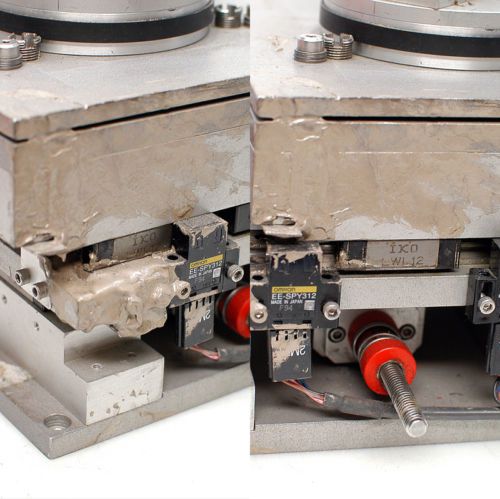

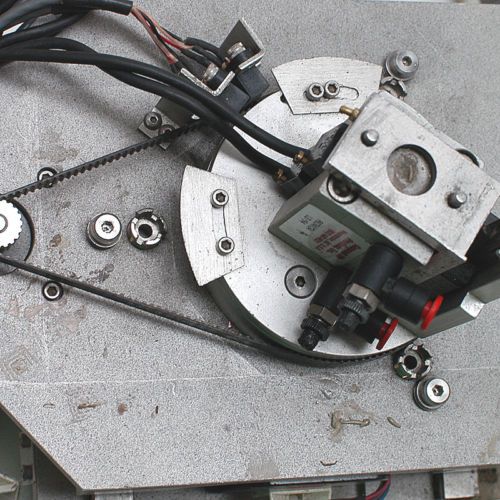

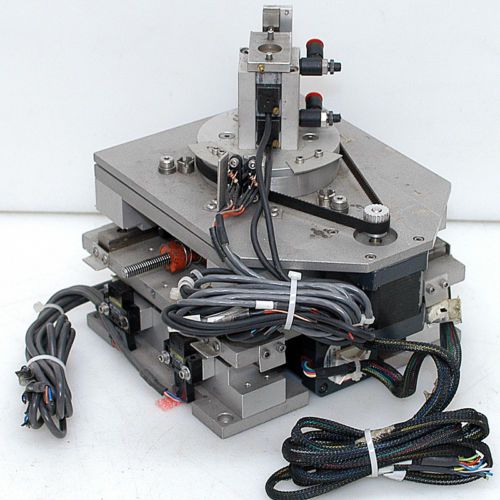

Home Contact About Questions? Call us: 1-877-328-9236 Technology Industrial Lab & Test Electrical Semiconductor IKO LWL 12 4.5cm Travel XY Stage with Theta and 22mm Z Actuator w/ Vacuum Tip Full Size Manufacturer: Unknown Model: Unknown Condition: Used The photos show the exact item(s) the buyer will receive. Manufacturer: Unknown Condition: Used. Comes in non-original packaging. This unit is in Good cosmetic condition aside from drips of something (epoxy?) hard and gray on one corner. There is also minor grease residue on the screws and linear ways, and other blemishes from prior use. Notes: This was removed from a decommissioned piece of equipment and not tested separately. The motors all rotate and move their actuators when moved by hand. The z axis moves easily also. No manuals, cords/cables, or additional items are included if not listed or shown. Included: (1) Custom Linear/rotary actuator/stage Specifications: Custom linear/rotary actuator Plate aluminum construction Footprint: 5-3/8" square X & Y axes Travel: approx. 4.5-5cm Linear rails: IKO LWL 12, total 4 rails & 8 bearing blocks Linear rail length: approx. 5-3/4" each Limit switches: Omron EE-SPY312 Motors: Vexta PK245A-01AA 2-phase stepping motor, 1.8º/step, DC 1.2A 3.3 ohms Z axis Air powered, up/down control only Travel: approx. 2cm Copmact Air AS34x34 cylinder Linear rail: IKO LWL 9 One small round vacuum chuck in top Theta axis Belt driven OPB series limit switches Adjustable limits (not sure of range) SKU: N16D009 For questions regarding this item, please reference the SKU to help us better serve you. Questions? Give us a call. (877) 328-9236 or (512) 933-0081 Monday to Friday 8:30 am - 5:30 pm CST. Se habla espanol! DougDeals is an ISO 14001 and OHSAS 18001 registered company. DougDeals Terms and Conditions DougDeals Terms of Use By bidding, purchasing via Buy-It-Now or submitting a Best Offer you agree to the DougDeals terms of use located at: http://stores.ebay.com/CDN-Systems-LLP/Terms-and-Conditions.html Payment Paypal Orders are shipped to the confirmed PayPal address. DougDeals accepts PayPal from select countries. Visa, Mastercard, Discover, American Express Orders are shipped to the card holder’s billing address. A signed Credit Card Authorization form is required for orders over $1,000. DougDeals directly accepts US and Canadian issued credit cards only. DougDeals accepts international cards via PayPal. Shipping Free Shipping is to the contiguous 48 states only. AK, HI, and territories will be charged actual shipping costs. Please contact us for a quote. Shipping to APO/FPO/PO Box may or may not be available. Please contact us before purchasing to confirm. DougDeals does not ship on buyer accounts or allow the buyer to arrange shipping. Shipment must be arranged through us and will be prepaid to us by the buyer. Local pick up is available for buyers and their direct employees. Warranty This item is guaranteed to be as described. The buyer must notify us within 14 days of receipt if there is an issue. Returns for any reason other than defects not described incur a 15% restocking fee. If an item is returned defective but tests functional the refund will be for the item price minus any actual shipping costs, minus a 15% restocking fee. See full terms here. Feedback Customer satisfaction and feedback are very important to us. If for any reason you feel we deserve less than a 5 star rating, please contact us to let us know how we can improve our service. Legal DougDeals reserves the right to refuse service to anyone that does not comply with the terms listed and linked here. The sole and exclusive venue for any lawsuit arising out of or relating to this agreement shall be the Travis County Civil Courts of Travis County, Texas.
