Incredible 5 Axis Gecko G540 +1 Control Box Ethernet Smooth Stepper (ess)

US $1,245.00

Bothell, Washington, United States
Jan 29th

Open on mobile:
QR code

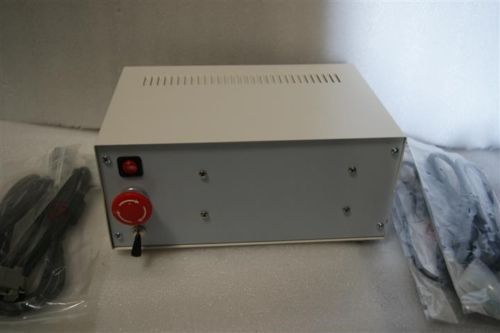

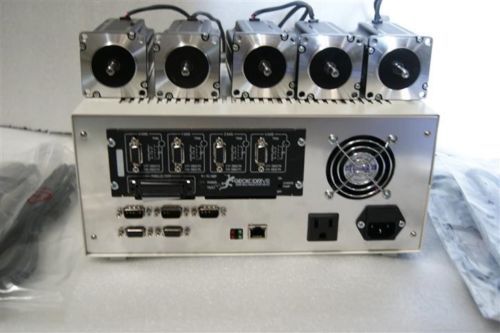

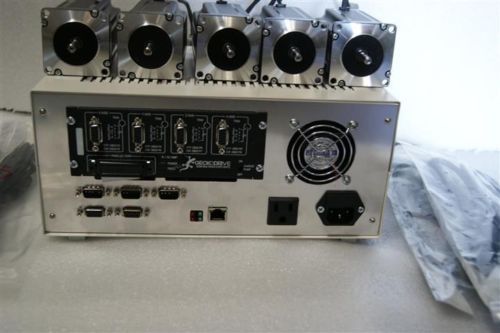

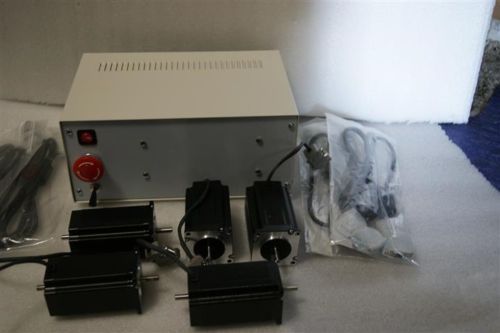

Camtronics Inc has been in the CNC business since July 1993. No other Ebay seller has been around that long!. Camtronics was the first Beta tester of the G540 and help Mariss at Gecko drive resolve some issues with the prototypes. Camtronics Can provide just about any G540 configuration you could want. Introducing the new Camtronics Inc Incredible 5 axis GeckoDrive G540+1 G251 control box using the Ethernet Smooth Stepper (ESS). This is the only 5 axis control box using the terrific Gecko Drive products. Camtronics has built many 2,3,4,5,6 and 8 axis systems in the past. With the ESS it is easy to run 5 axis or at addition expense we can add a 6th axis. Camtronics recently pick up a 4th and 5th axis stepper drive mechanism and decided to manufacture a control box for it using the G540 plus an additional 3.5A 10 micro step driver for the 5th axis. The steppers on the 4/5th axis are 3.5A motors. The ESS is easy to set up and will control the 5 axis and many inputs and output. http://www.youtube.com/watch?v=wD0zMushHRc https://www.youtube.com/watch?v=Knb95tYQ5zo&feature=youtu.be The control box is designed with db9 male and female connector. The female connector is for the 5th axis motor and the other female connector is for the 2 external relays ( not Included), a male connector for either a tool setter probe or a digitizing probe, another connector is for the XYZ home/limit switches and another for a VDF. The front panel have a lighted on off switch, and ESTOP switch and an output engage/disengage switch c\that allows the user to manually move any of the dual shaft motors.. The rear panel has a fused IEC power entry module, a 3 prong receptacle for loads up to 700 watts. The G540 and 5th axis db9 connector is set up with pins1 and 5 for I-set and pins 6-9 for the standard G540 motor pin out. The power supply is a a 48V 500W and can run 5 axis simultaneously. Runs great. Included is a ethenet cable, , a CD with a 5 axis mach3 screen set, 5 db9 connectors and housing and a mach3 config file. This control box can be used on machine tools sizes up to including most mill drills and CNC routers. Upon request I can provide a config file for slaving the 5th axis and another mach3 XML file for using the 5th axis as a spindle. If you have any questions you can call me at 4254821605 M-F 8Am-2PM Pacific time The motors are low inductance 3.5A dual shaft Nema 23 with a .250 diameter shafts. This system can be used with EMC but we don't have a config file for it. I can also provide any combination of stepper motors the buyer wants at additional cost. Here is what Marris owner of geckodrives said,"Posted by: "Mariss Freimanis" mariss92705 Sun Mar 1, 2009 6:12 pm (PST) Let me say that Dan is a gem in this community. Dan knows what he is doing and he does it right. How do I know? Simple; I never, ever get support calls from people using his stuff. His stuff just works because it's done right. Mariss" dmauch camtronics-cnc

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Camtronics Inc
Country of Manufacture	United States
Model	5axis
