Insulated Shaft Coupler Or Coupling 1/4"

US $5.95

Clyde, North Carolina, United States
Jan 29th

Open on mobile:
QR code

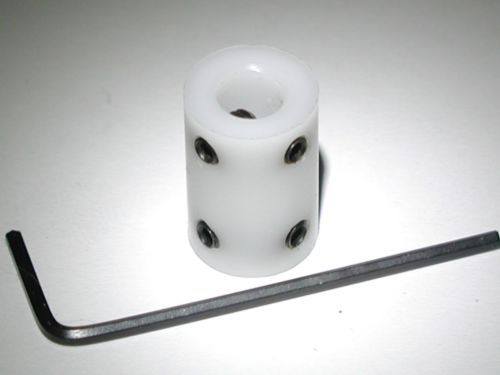

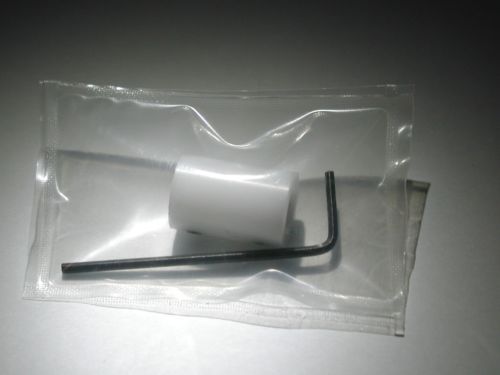

INSULATED 1/4" SHAFT COUPLER or COUPLING with 5kV BREAKDOWN VOLTAGE. This coupler is 3/4" long, 1/2" in diameter, has 4 setscrews and is made of ACETAL (DELRIN(R)). This material has a breakdown voltage of 450 Volts per thousandths of an inch, a surface resistance of over 1,000 MegOhms, a dielectric constant at 1MHz of 3.7 and an extremely low dissipation factor of 0.005. IT'S WELL SUITED FOR USE IN HIGH VOLTAGE OR HIIGH-RF ENVIRONMENTS. Great for applications where you need to isolate a shaft electrically. It has a breakdown rating of 5,000 volts minimum. Great for Ham Radio projects, HIPOT testers, anywhere that there is a voltage present on a shaft and it needs to be isolated from the front panel shaft. THE BORE DOES NOT EXTEND THROUGH THE COUPLER, WHICH GIVES IT A HIGH BREAKDOWN VOLTAGE. There is a minimum of 0.030" of insulation between the end of the two bores, which totally isolates any voltage on one shaft from the other. It has 2 long and 2 short setscrews, so if your shaft(s) have flats, use the long setscrews on the flat portion. It's a solid coupler, so it won't fix any shaft mis-alignment. These also work for motion control applications, like coupling motors to shafts, but one of our aluminum couplers (see our other listings) may be more appropriate for that application. These are perfect for ham radio projects, like joining two shafts together, or any other general purpose use where an insulation barrier is required, like high-voltage breakdown testers, etc. Made in the USA, and ships from North Carolina by First Class USPS Mail. If you have another application that requires an insulated coupler, send us an email. We're always interested in your application, and reasonably priced custom parts in small quantities are a specialty. Thank you for looking. We have a total money back satisfaction guarantee. If you are not happy, we'll do whatever is required to make it right. That is our pledge to you.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ESG
Length (in.)	3/4 INCH
Model	1/4ISC
Material	Delrin (acetal)
MPN	1/4ISC
Country/Region of Manufacture	United States
Quantity	1
