[iot-link] Ethernet To Serial Rs-232 Rs-485 Modbus Tcp Rtu For Automation & Iot

US $59.00

Zhongli City, default, Taiwan
Jan 29th

Open on mobile:
QR code

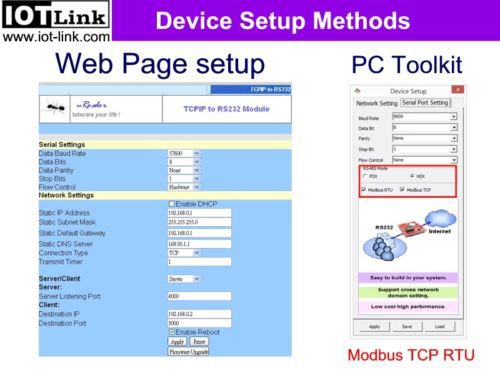

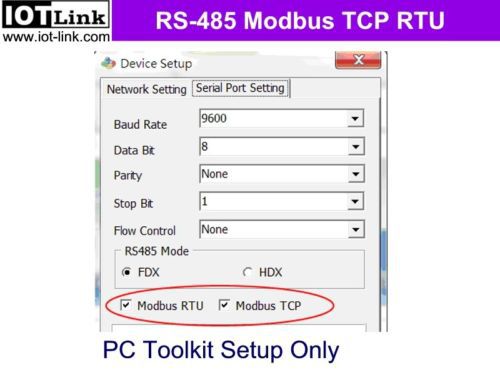

Ethernet to RS-232/485 Gateway Support Modbus TCP RTU (Mode: IP-S) Feature: 1. Operation voltage : DC 7V ~ 20V. 2. RS232 Interface - Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28 - Interface : ±12V levels compatibility. - Data rate : 1200 bps up to 921600 bps - Characters : 5, 6, 7, 8 - Parity : None, Even, Odd - Stop bits : 1, 2 - Control signals : TxD, RxD, GND 3. RS422/RS485 Interface - Meet the requirement of the EIA/TIA-485 - 2-wire signals (HDX mode) : RX+/D+,RX-/D-,GND - 4-wire signals (FDX mode) : TX+,TX-,RX+,RX-,GND - Support terminal resistor for TX and RX. - Up to connect 256 devices on the bus. - Maximum bit rate up to 115K bps. - Bus protection: ±30KV, IEC 61000-4-2, Contact/Air Discharge. ±30KV, IEC 61000-4-4, EFT(5/50ns). ±30KV, IEC 61000-4-5, Surge(8/20us). 4. Ethernet Interface - Built-in 1.5KV magnetic isolation. - Ethernet Interface : 10Base-T, 100Base-TX - Ethernet Speed/Duplex : Auto-negotiation 10/100Mbps, Full/Half duplex - Protocols Supported : ARP, IP, ICMP,UDP, TCP, DHCP, TFTP, HTTP. - Network Services : TCP Server, TCP Client, Web Control. - Auto-MDIX : Yes 5. Build-in web server setting page for parameter by user. 6. Maximum connection device in server mode : 8. 7. Support all operation system, don’t need any driver. 8. Cross domain parameter setting utility for windows XP/VISTA/windows 7~ 9. Support Virtual Serial Port (VSP) utility for simulate RS232 COM port. 10. Support modbus ASCII/RTU protocol. 11. Support modbus TCP ptotocol. 12. Support modbus RTU maximum baud rate : 19200. Function Description: 1. DB9 male : RS232 connector. 2. RJ45 : TCPIP Ethernet connector. 3. RS422/RS485 terminal resistor: Short is enabled, open is disabled (2.54mm). 4. RS232/RS485 mode switch. 5. RS422/RS485 2-wires(HDX)/4-wires(FDX) connector. VCC-GND : DC 7~20V input. HDX signals : RX+/D+,RX-/D-,GND. FDX signals : TX+,TX-,RX+,RX-,GND. The mode setting by DSM utility option. 6. DC power connector : DC 7~20V input (?2.0mm). 7. LED indicator : Red-Power, Orange-Ready, Green-Link. 8. Reset key : Reset module. Default setting: The module default IP address is 192.168.0.1, this module build-in a homepage for setting, so user can change internal parameter setting by browser. Quick start: 1. Connect RJ45 to Ethernet. 2. Select RS232 or RS422/RS485 mode. 3. Connect RS232 DB9 or RS422/RS485 2/4-wires bus. 4. Connect DC power input. 5. Check LED indicator. User can use browser and entry the URL(http://192.168.0.1/setting.htm) for setting. Parameter Setting: This module is divided into two parts parameter: - Serial Port setting - Network setting When you set is complete, simply press the "Apply" button, if the "Enable Reboot" are ticked, then this module will reboot, reboot time because flowers to 5 to 10 seconds, so you may see the screen can not display the error message. At this point you re-enter as long as the web site again and press "Enter" key, the screen will re-appear. Serial Port setting: Data Baud Rate : RS232 bit rate, the range from 1200?2400?4800?9600?19200?38400?57600?115200?921600? Data Bit : The number of data bits transmitted, the range from 5?6?7 and 8 bits? Data Parity : Transmission of the parity bit check method,the type are Odd?Even and None? Stop Bit : Number of stop bits,the type are 1?1.5 and 2 bits. Flow Control: Flow control method, the type are Xon/Xoff?Hardware and None. Network setting: Enable DHCP : Enable DHCP function. IP Address : Static IP address,use IPv4 define? Subnet Mask : Mask address,normal setting is ”255.255.255.0”? Gateway : Gateway address,normal setting is ”xxx.xxx.xxx.254”? DNS server : DNS address, Can point to any one DNS server, we are the factory default value is pointing to Taiwan Telecom's DNS server. Connection Type : TCP and UDP is divided into two types, their advantages and disadvantages are as follows: Protocol Advantages disadvantages TCP Reliable transmission, the program can be omitted and reliable mechanism Transmission speed slower. UDP Large transmission capacity, rapid Unreliable, the program may need to provide a reliable mechanism for self. Transmit Timer : Data packets sent between the serial interval. Server/Client : This machine type, the default value is Server. Listening Port : Multiple applications in the corresponding port will address, in which the range of 0 to 1023 is known to the general code used by the so-called (Well-Known Ports), for example: Port 21 is used for FTP, Port 80 is for Http used, as the dynamic port (Dynamic Ports) to users to decide on opening up, ranging from 1024 to 65535. Destination IP : When this module is set to Client, enter the IP address of the remote host server. Destination Port : When this module is set to Client, enter the remote host server port address. Enabled Reboot : Start Module reboot. Apply : Confirm the setup is complete. Reset : Reserved. Firmware Upgrade : Reserved. Modbus protocol: When your system is modbus protocol, you can setup this module entry modbus mode by DSM up utility. Modbus RTU/TCP RTU mode and maximum baud rate 19200. Modbus RTU vs General TCPIP RTU(Send)/TCPIP(Receive) RTU(Receive)/TCPIP(Send) Modbus RTU vs Modbus TCP RTU(Send without CRC)/TCPIP(Receive) RTU(Receive)/TCPIP(Send with CRC) Package Contents: 1. Ethernet Gateway x 1 2. Power Adapter x 1 3. CD-ROM x 1 4. Terminator Jumper x 1 ============================================================ Payment: 1. We only accept payment from PayPal in advance. 2. We ship to your PayPal primary address. If you would like to ship the item to an alternate address, you MUST specify the alternate address in the NOTE section when you complete payment in PayPal. 3. We reserve the right to cancel your order if the payment is not finished within 7 days or the non PayPal address. 4. Please add the phone no. on the note of Paypal, it will help to ship the package. Shipping: 1. Economy shipping: Registered air mail by default shipping way. Generally, it will take 1~3 weeks or more to shipping the package by different area. 2. Standard shipping: EMS (International Express Mail Service), Generally, it will take within 1 week or more to shipping the package by different areas. The cost will be more than the economy shipping. 3. We will ship the package immediately within 2-3 business days upon receiving your payment by the economy shipping way. All goods will be shipped from Taiwan in good packing condition. 4. We will offer the tracking number and you will track via Internet. We have noticed that there will be usually postal delays due to the local public holidays, custom clearance, labor strike or climate disaster. 5. Import duties, taxes and charges are not included in the item price or shipping charges. These charges will be paid by the buyers. Please check with your country's customs office to determine what these additional costs will be prior to bidding / buying. Generally, the value of the products is lower and will not be charged. Returns & Refund & Warranty & Repair: 1. Returns: If you receive the defective or damage products, we will replace or fix without any charge. The buyers have to reply to us within 5 working days and take the pictures and describe the status. The buyers are responsible for sending it back to us safely and we will pay for the postage of sending the good items to the buyer. 2. Refund: We accept the refund due to the compatibility with the computer; the buyers have to reply to us within 5 working days and describe the status. The buyers need to bear the shipping cost of returning. We will refund the bargained cost without freight via PayPal only after we receive the returned items. 3. Please keep the packing and accessories completely and well when return the products. 4. Warranty: 1 year since the shipping date. 5. Repair: After 1 year warranty. We will charge the cost of the postage, components and the man power. If the products or the components are phased out, we will provide the discount for the new models or discard the items. About Us and Customer Service: 1. The products are made in Taiwan, we are responsible for the products, please feel easy to buy. 2. Bulk purchase, Customized Brand, Customized Design, Products Design or Sourcing, please contact us. 3. Working hours: Monday to Friday, 9:00 AM ~ 5:00 PM (Taiwan, Taipei time: +8 GMT) 4. International customer service language: English 5. If you have any questions or need the user manual, please contact us. ============================================================

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	IOT-Link
Country/Region of Manufacture	Taiwan
Model	IP-S
