Johnson Cardkey S300 Xl

US $330

Albuquerque, New Mexico, United States
Jun 9th

Open on mobile:
QR code

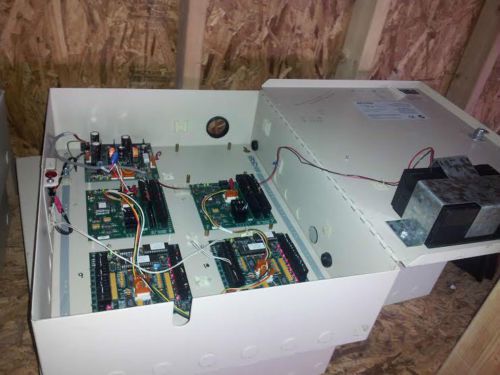

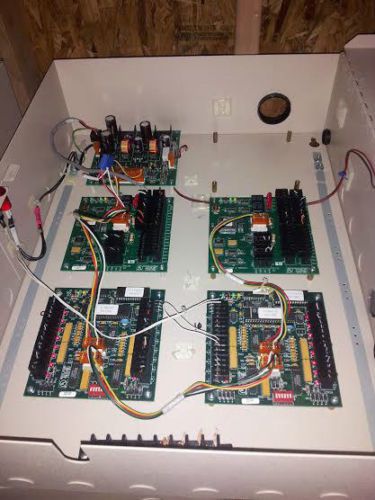

JOHNSON CARDKEY S 300 XL acess panel,panel was part of a system that was functioning when removed.I plugged in the battery cable and a few lights turned on,I have quite a few of these and at this moment I'm not to familar with these systems,I have seen what they go for on google and parts on Ebay, if you are intersted and need me to answer any question let me know I will try my best maybe you can guide me,I have a lot more of these panels I'm just guaging the market and trying to get a little more insight,thanks for looking and here's some info Introduction The S300 Series “add-on” reader and input/output (I/O) modules are designed to expand the quantity of portal and I/O devices controlled by CK721, CK720, or CK705 controllers. Portal devices typically consist of readers, Request to Exit (REX) devices, door contacts, and door strikes or magnetic locks. I/O devices typically consist of alarm input devices, such as sensors, and annunciation devices, such as a sounder or strobe light.Johnson Controls, Inc. offers the following reader and I/O modules:•S300-RDR2 – Reader module that controls two fully configured doors. See Figure 1.•S300-SI8 – Input module with eight supervised (4-state) inputs.•S300-SIO8 – Input/Output module with eight supervised (4-state) inputs and eight outputs.•S300-IO8 – Input/Output module with eight unsupervised (2-state) inputs and eight outputs.•S300-I16 – Input module with 16 unsupervised (2-state) inputs. Unsupervised vs. Supervised Inputs An unsupervised alarm input monitors two circuit conditions: alarm and secure. A supervised alarm input provides two additional states that indicate tampering to an external alarm device. Features and Benefits•Support of two fully configured portals using a single reader module•Supervised inputs provide 4-state monitoring•Single Pole Double Throw (SPDT) relay outputs•Supports RS-485 communications with controllers•Easy installation in S300-XL/XS/XXS secure enclosures. Also supports stack-mounting to conserve the number of required enclosures. Figure 1: S300-RDR2 Reader Module (Two Doors) S300 Series Module Comparison Chart REX Device(Motion Sensor)Door ContactReader Door StrikeREX Device(Motion Sensor)Door ContactReader Door Strike DOOR 1DOOR 2 RDR2 Module Table 1: S300 Series Module Comparison ChartSpecificationS300-SI8S300-SIO8S300-IO8S300-I16S300-RDR2 Number of Available Inputs88816-Number of Available Outputs-88--4-State Inputs (Supervised)YesYesNoNoNo2-State Inputs (Unsupervised)YesYesYesYesYesNumber of Supported Doors(Fully Configured)----2 Cardkey® S300 Series Modules Product Bulletin Code No. LIT-12011182 Issued April 1 8 , 2006
