Jye Dso 138 Diy Kit Open Source

US $3800

  • US, United States
  • Nov 2nd
Open on mobile:
QR code

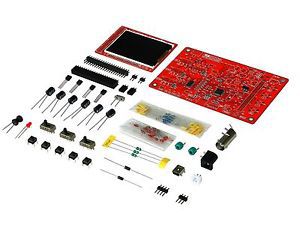

JYE DSO 138 DIY KIT Open Source Product Features Product Specifications Product Dimensions: 4 x 3 x 1 inches Shipping Weight: 2.4 ounces Why you Should Buy from Us? Trusted Seller, Great Feedback Quick Shipping and Tracking HUGE Discounts Excellent Returns Policy The BEST Customer Service Shipping & Returns We Ship Worldwide! 14 Day Money Back Return Policy Items Ship within 24-72 Hours Shipping process begins as soon as you order. We cannot cancel orders. Our goal is FAST delivery! Product Description DSO138 was designed as a training oscilloscope kit. It contains only the basical oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose DSO138 uses mostly through-hole parts. The heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays nice and clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematc. Source codes are also available to allow user to add their own features. This DSO138 kits has all SMD parts pre-soldered (PN: 13801K). The MCU has been pre-programmed and no re-programming required. DSO138 is partially open-sourced. This opens the possibility for users to add different features or develop new applications on the hardware. Major features of DSO138: Analog bandwidth: 0 - 200KHz Sampling rate: 1Msps max Sensitivity: 10mV/Div - 5V/Div Sensitivity error: < 5% Vertical resolution: 12-bit Timebase: 10us/Div - 500s/Div Record length: 1024 points Built-in 1KHz/3.3V test signal Waveform frozen (HOLD) function available NOTE: 9V DC power supply required. Not included. Thank You For Your Business!
