Lotos Ltp5000d Pilot Arc Dual Voltage 110v/220v 50amps Plasma Cutter

US $1100

Sunnyvale, California, United States
Feb 13th

Open on mobile:
QR code

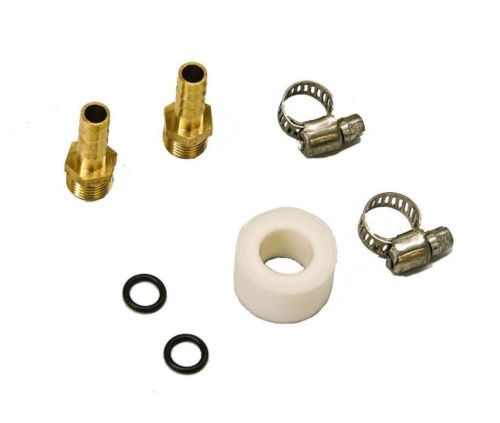

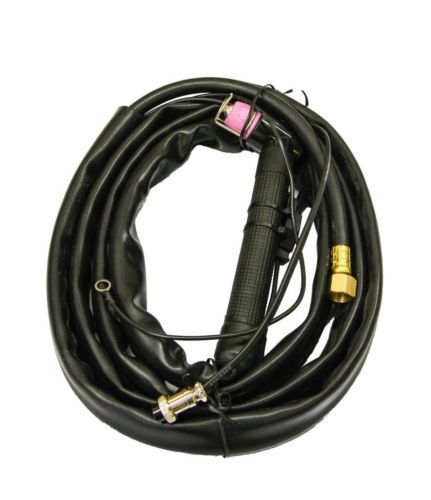

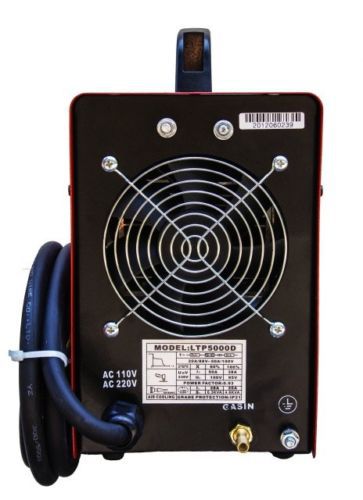

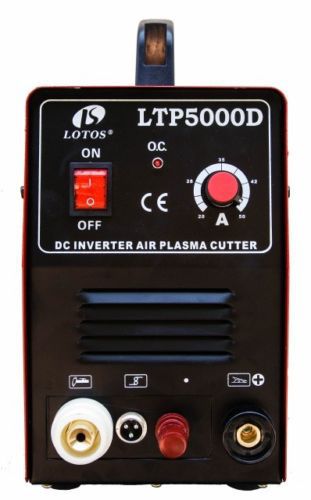

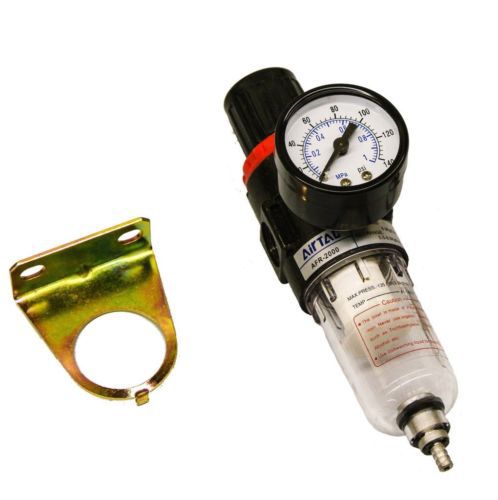

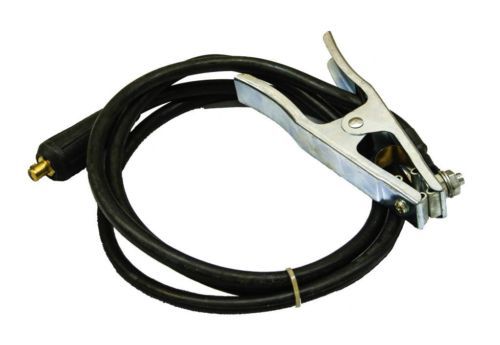

GENERAL OVERVIEW Make: LOTOS TECHNOLOGY Model: LTP5000D Type: 50 Amp Plasma Cutter with Pilot Arc Condition: BRAND NEW (In Sealed Factory Box) Status: IN STOCK (Ships in 1 Business Days) Features: 50 A plasma cutter with pilot arc Brand new yet double function tested and performance tuned prior to shipping PAPST cooling system from Germany Input Voltage: 110-220V, 1-PH Dual Frequency (50Hz/60Hz) Input Power Frequency: 50 hz / 60 hz (Better performance under 60 hz) Insulation Grade: B Housing Protection Grade: IP21 Size: 15’’ L x 6’’ W x 12’’ H Weight: 26 lbs (11.8 kg) Certification: CE, CCC, CSA and ISO-9001 certification Power factor: 0.93 Power efficiency: 85% Accessories: 50 Amp Pilot Arc Plasma Torch (9'5") Plasma Consumables (installed on the torch head) Air Filter/Regulator Ground Clamp & Cable Connections, (like Air Hose etc.) LTP5000D User Manual ABOUT LOTOS Since 2000 Lotos Technology introduced inverter technology in welding and cutting machines, Lotos' latest high frequency inverter technology utilizes V-MOSFETs along with PWM (Pulse Width Modulation) to deliver a far more constant, concentrated and precise current to the cutting surface. This technology has been substantially reduced in size and weight of Inverter Plasma Cutters. It helps you to easily achieve smooth, clean cuts of wide range of surfaces and material (e.g. stainless steel, alloy steel, brass, aluminum and other conductive material) with minimal heat input and without distortion of metal. Lotos plasma cutters are designed especially for those DIY (do-it-yourself) users, while fully accommodating the demands of professional operators. Specifications Input Voltages: 110-220V, 1-PH, 50/60 Hz Input Current: 110-220V, 1-PH, 20 A Output current: 10-50 A Duty cycle @ 40°C (104°F): 60% @ 50A, 110V, 60% @ 50A, 220V Gas supply: Clean, dry, oil-free air Recommended gas inletflow rate / pressure: 3.6 scfm @ 65 psi80L/min Max Rated Cutting Thickness: 1/2 inches (12.7mm) Unrivaled Quality The production process for Lotos products is among the most stringent in the world and meets or exceeds some of the industry's most rigid standards. Our studies show that it is in fact among one of the best in the industry and is unrivaled by other would-be competitors. The quality of each of the integrated components is constantly monitored during the course of production. Only components and materials that meet the highest industry standards for quality are permitted to be incorporated into LOTOS products. Finally, upon conclusion of production, each unit is put through a newly devised, far more rigorous 30 point testing and quality inspection routine. This process is critical to ensuring a product that is not only safe, but reliable in both performance and durability. Cut at 12 Times the Speed of Sound Plasma cutting is a process that is used to cut steel and other metals using a plasma torch. In this process, an inert gas (compressed air) is blown at high speed out of a nozzle; at the same time an electrical arc is formed through that gas from the nozzle to the surface that is being cut, turning some of that gas to plasma. The plasma is sufficiently hot to melt the metal being cut and moves sufficiently fast to blow molten metal away from the cut. The plasma, which is maintained between the work-piece and electrode, travels at over 9000 MILES PER HOUR (15,000 km/Handle). That’s over twelve times the speed of sound. Advantage of Plasma vs. Oxy-Fuel Torch Plasma does not use expensive, hazardous gases, only compressed air. It imparts much less heat into the piece being cut, eliminating warping. It does not require ignition. It leaves little to no slag to clean up or grind off. The cost per cutting hour can be less than oxy-fuel since there is no gas cost. It is also much quicker and easier. So, you cut better, faster and inexpensively. Payment We accept Paypal, Credit cards (Visa/Master/Discover/American Express), Money Order or Checks. Please contact us if you have any questions. International customers, please contact us for shipping fees. Shipping and Tracking FREE FedEx shipping with FREE tracking information to 48 states. WARRANTY AND RETURN Warranty and Return: We offer a 30-Day Satisfaction Guarantee for new machine purchases. For details of the return policy, please click HERE (http://www.uwelding.com/Articles.asp?ID=257). For details of warranties, click HERE (http://www.uwelding.com/Articles.asp?ID=260).

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	LOTOS
Country/Region of Manufacture	China
Model	LTP5000D
