Low Profile Cb55b4-y-925 Centrifugal Fan Blower 100 Vac 0.21a 18.5/17w Srx-101a

US $130

  • Gainesville, Florida, United States
  • Jun 9th

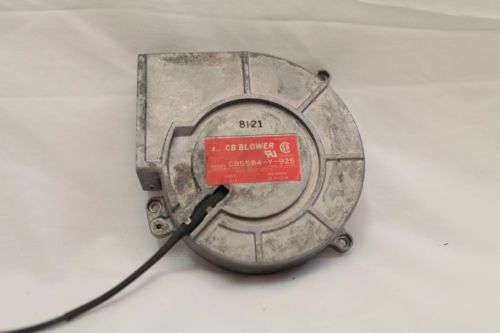

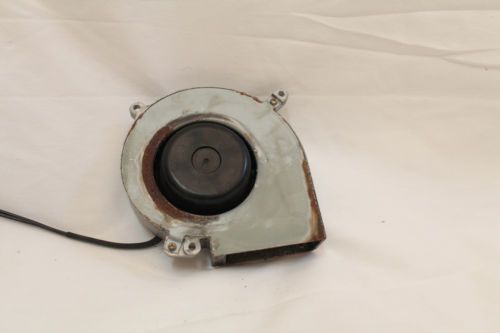

Japan Servo Co., CB55B4-Y-925 with wiring harness.  Removed from a Konica SRX-101 (SRX-101A) Medical Film Processor. Will be packaged carefully and shipped via USPS or FedEx - Free shipping to continental USA! Product Type AC Centrifugal Blower Series CB Material Bearing : Double - sided shielded ball bearing Housing : Aluminum alloy die casting Impeller : Polycarbonate resin Inlet cover : Aluminum board or Galvanized steel sheet Terminal : Brass, Tin plating Motor Protection type: Impedance protection Shaded pole induction motor Type Lead Wire Dimensions 125 x 126 x 41 mm 4.9 x 5.0 x 1.6 in Max. Airflow at 50 Hz. 0.65 m?/min 23 cfm Max. Airflow at 60 Hz. 0.70 m?/min 25 cfm Max. Static Pressure at 50 Hz. 88 Pa 0.35 inH2O Max. Static Pressure at 60 Hz. 127 Pa 0.51 inH2O Noise 53 dB 55 dB Speed 2600 (at 50 Hz) 2850 (at 60 Hz) Rated Voltage 100 V Frequency 50 Hz 60 Hz Input at 50 Hz 18.5 W Input at 60 Hz 17 W Current At 50 Hz : 220 mA At 60 Hz : 210 mA Lock Current at 50 Hz 300 mA Lock Current at 60 Hz 260 mA Standard Certification CSA LR49399 UL E48889 Operating Temperature -20 ~ +60 ?C
