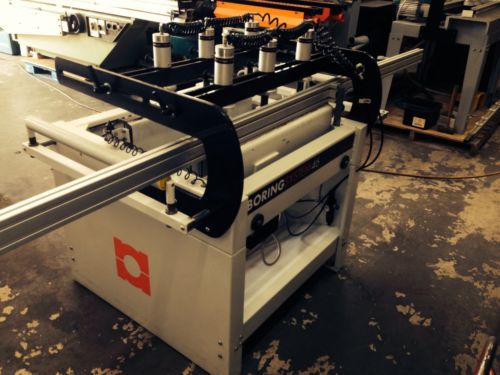

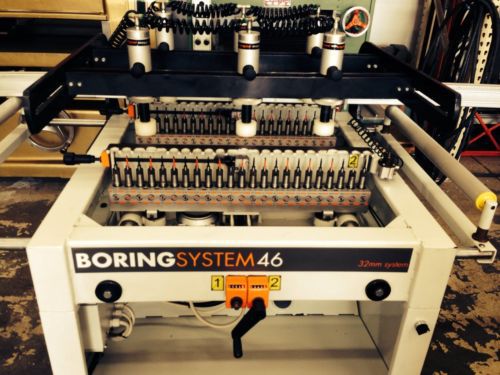

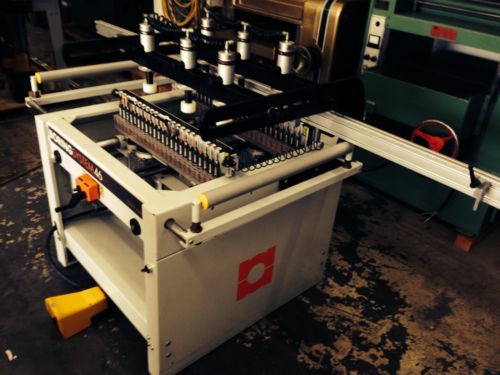

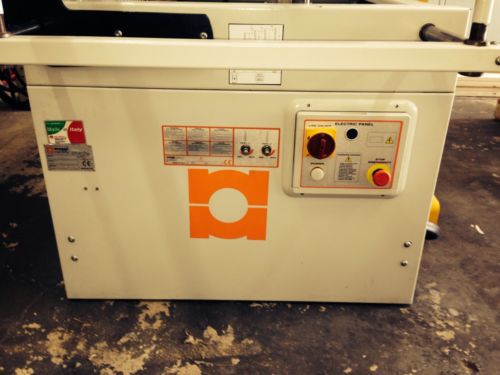

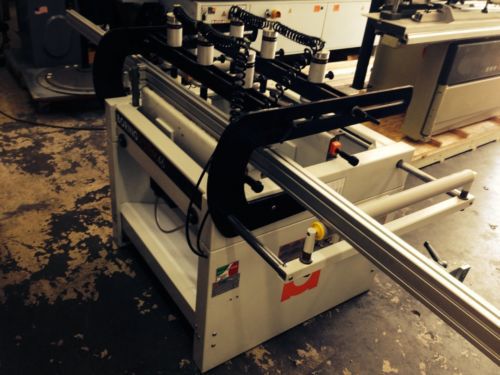

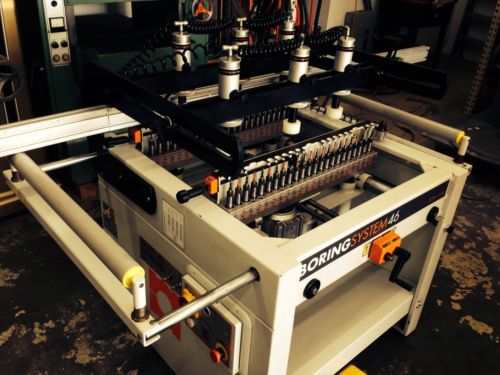

Maggi System 46 Line Drill Machine

US $6,500.00

  • Bonita Springs, Florida, United States
  • Jan 30th
Open on mobile:
QR code

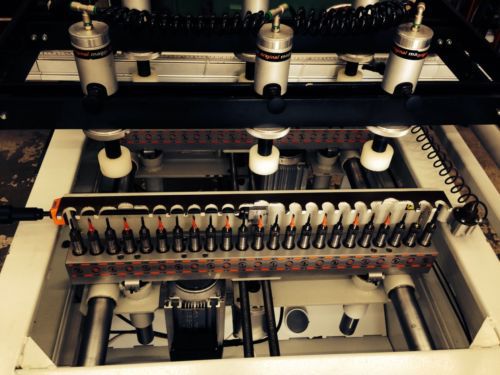

Maggi System 46 Line Drill Machine LIKE NEW CONDITION** LIST NEW: $15,200.00 Features: 46 double-head boring machine for vertical drilling Spiral system, programming and boring depth adjustment Safety clamps allows a prompt setting on panels without any adjustments Quick and precise setting-up High-quality end products Safety devices Extractable 400mm long support rollers on both sides Semi automatic boring machine equipped with 2 parallel vertical boring heads Designed to execute holes in a line and particularly suited for the bookcase and wardrobe-side processing Technical Information: No. of vertical heads 2 No. of spindles each head 23 Distance between each spindle 32 mm Distance between first and last spindles centre 704 mm Max. Drilling Depth 100 mm Max height of clamps from working table 80 mm Inside diameter of quick change bush 10 mm Minimum distance between the 2 heads 130 mm Max distance between the 2 heads 650 mm Max dimensions of working piece 700 x 3000 mm Height of working table 850 mm No. clamps 6 No. motors 2 Motor Power 2 HP Noise level (max allowed 90 DB) 82 dB Working air pressure 6-7 bar Standard air pressure consumption 20L/ciclo Motor Speed 2800 r.p.m. Weight 380 Kg Please Call our office at 239-947-0348 for any questions FOR ADDITIONAL PHOTOS OR OTHER USED MACHINES please call Posted with eBay Mobile
