Magnetic Base Plete Set With Base Upright Post Rod Attachment Two Snugs

US $217.72

United States
Jan 30th

Open on mobile:
QR code

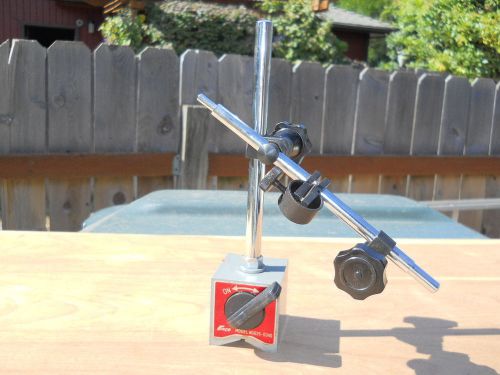

Starrett 657AA Magnetic Base Complete Set with Base, Upright Post, Rod, Attachment, and Two Snugs Fantastic Prices! 2-day Shipping! Easy Returns! Brand New Item! Number Of Items : 1 Compatible with Starrett test, back-plunger, dial, AGD, and miniature-dial indicators, as well as similar indicators from other manufacturers Includes magnetic base, upright base post, two snugs, rod, and indicator attachment Push-button on/off switch for one-handed operation Grips horizontally, vertically, and upside down for versatility Upright base post has overall length of 7-7/16" length, with an adjustable 6" long rod Product Description Starrett 657AA Magnetic Base indicator holder is an all-inclusive kit for use with all Starrett test, back-plunger, dial, AGD, and miniature-dial indicators, as well as similar indicators from other manufacturers. The set includes a Starrett 657P magnetic base, a 657G upright base post, a 657S snug, a 657X rod, a 657Y indicator attachment, and a PT18724 snug. The 657P magnetic base is 1-15/16” x 1-5/8” x 1-7/8” (50... CLICK TO READ MORE Starrett 657AA Magnetic Base indicator holder is an all-inclusive kit for use with all Starrett test, back-plunger, dial, AGD, and miniature-dial indicators, as well as similar indicators from other manufacturers. The set includes a Starrett 657P magnetic base, a 657G upright base post, a 657S snug, a 657X rod, a 657Y indicator attachment, and a PT18724 snug. The 657P magnetic base is 1-15/16” x 1-5/8” x 1-7/8” (50 x 40 x 48 mm) and has a push-button on/off switch for one-handed operation. The base has three precision-ground, magnetic contact points to grip horizontally, vertically, and upside-down. The V-step holds the base to arbors, shafts, and other cylindrical items. The base has an additional 1/4-20 tapped hole on one side for mounting the post. The magnetic base has a non-skid, black wrinkle finish on all non-working surfaces. The base post is 3/8” (9.5 mm) in diameter and 7-7/16” (190 mm) long. The Starrett 57S and 58S snugs may also be used with this post (sold separately). The 657S snug has two 1/4” (6.3-mm) diameter holes and adapts the 196, 650, and 651 series dial indicators and the 657Y indicator attachment to the 657X rod. The 657X rod is 1/4” (6.3 mm) in diameter and 6” (150 mm) long. It accommodates the Starrett 708, 709, 811, and 711F series dial test indicators. The 657Y indicator attachment has a 1/4” (6.3-mm) outer diameter hole on one end, while the other end is threaded to fit the backs of all AGD indicators (Starrett series 81, 25, 655, and 656) and series 80 miniature indicators. The PT18724 snug has a 3/8” (9.5 mm) diameter post hole and a 1/4” (6.3-mm) diameter gripping hole to accommodate the 657X rod. Magnetic bases are magnetic fixtures commonly used in metalworking to hold dial indicators, and are also used in other fields, such as optics. Magnetic bases can assist the user with setting up a workpiece in a milling machine, surface grinder, or other machine tool. The vertical post and rod in a magnetic base connect using swiveling connectors, or snugs. This allows free motion of the arm so that the dial indicator can be moved into position on the workpiece. Many magnetic bases have a V-step, which is a V-shaped notch in the base for holding the base to arbors, shafts, and other cylindrical items. The magnetic base has a circular hole through the center. A round permanent magnet is inserted into this hole, and a handle or button is attached to allow the user to rotate the magnet. Rotating the magnet turns the base on and off as this causes the position of the magnetic field to rotate as well. In the on position, the iron is acting as an extension of the magnet, while in the off position, the magnet is acting as a keeper, preventing the magnetic field from extending through the base. The L. S. Starrett Company was founded in 1880, originally manufacturing bench vises, squares, and other tools. They acquired other companies throughout the years, expanding their services into making precision measurement instruments and tools, such as calipers, micrometers, saw blades, and gauges. Starrett is headquartered in Athol, Massachusetts and has manufacturing facilities in Brazil, the United Kingdom, China, and other locations. What’s in the Box No. 657P Magnetic Base No. 657G Upright Base Post No. 657S Snug No. 657X Rod No. 657Y Indicator Attachment No. PT18724 Snug CLICK FOR LESS Product Dimensions Length: 10.27 inches Width: 2.86 inches Height: 2.19 inches Weight: 2.00 pounds Shipping Notes [International Shipments] Please direct all questions on international shipping fees to Ebay We do not offer combined shipping Buyer agrees that a complete refund is an adequate resolution for ANY issue We ship fast, so please make sure address is correct Buyer assumes full responsibility for providing correct address We are unable to process special shipping instructions Shipping charges are Non Refundable 'Colors May Vary' means we cannot select specific colors on request Unless otherwise stated all electronics are made for US voltages US Return Policy Please allow us to solve any issues before leaving feedback. We can solve any problem to your satisfaction! Returns require a valid RMA. Please message us and we will e-mail them to you Defective items require a detailed description of the defect Return shipment for defective items is paid for by us! Returns for non-defective items must be in NEW & UNUSED condition with all parts accounted for, in original packaging Items claimed as defective that are not defective, or items not in original packaging, are subject to a 15% restocking fee We do not stock parts. All replacements/exchanges require sending back the entire item or set International Shipments [Electrical Items] All electrics are US standard (120V) unless otherwise stated Please allow us to solve any issues before leaving feedback. We can solve any problem to your satisfaction! Buyer pays all return shipping costs [international shipments only] Item must be received within 14 days of purchase to be eligible for return [international shipments only] Returns require a valid RMA. Please message us and we will e-mail them to you Shipping Rates are set by Ebay's Global Shipping program and are not adjustable

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer	Starrett
EAN	0049659527438
Model	657AA
