Marconi Fm/am Modulation Meter Tf2300b - 30 Day Warranty

US $200.00

Sparks, Nevada, United States
Jan 29th

Open on mobile:
QR code

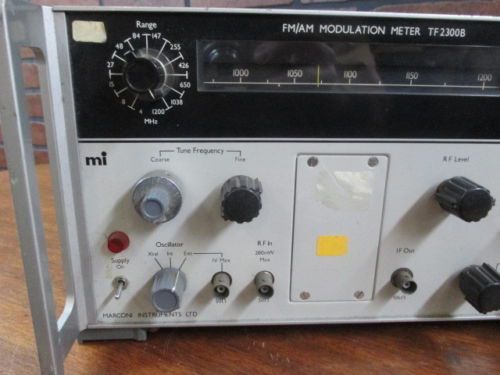

Up For Auction is this: Marconi FM/AM Modulation Meter TF2300B 30 Day Warranty 110v or 220v Free online info at: http://exodus.poly.edu/~kurt/manuals/manuals/Other/MARCONI%20TF2300B%20Instruction.pdf This excellent modulation meter measures amplitude modulation for carrier frequencies between 4 MHz and 400 MHz and frequency modulation for carrier frequencies between 4 MHz and 1.2 GHz. IF and demodulated outputs are available and external oscillators can be used in place of the internal one. Specifications FM Measurement Carrier Frequency Range 4 to 1000 MHz Deviation Range Five ranges with full-scale indications of 5, 15, 50, 150 and 500 kHz. Positive or negative deviation indication selected by a switch AM Measurement Carrier Frequency Range 4 to 350 MHz Mod. Depth Range Two ranges with full-scale indications of 30% and 100% (maximum usable reading: 95%). Peak and trough indications selected by a switch RF Input Sensitivity Less than 20 mV between 4 and 250 MHz Less than 50 mV between 250 and 500 MHz Less than 100 mV between 500 and 1000 MHz Maximum Input 3 VRMS (200 mW) Input Impedance Nominally 50 ohm Local Oscillator Variable Frequency Operation The internal oscillator covers two ranges: 5.5 to 11 MHz and 22 to 44 Mc/s, harmonics being used for other local oscillator frequencies. Provision is made for connecting an external oscillator with an output of approximately 20 mV IF Output Frequency 1.5 MHz Amplitude Between approximately 250 and 750mV e.m.f. LF Output Frequency Range 30 Hz to 150 kHz with switchable 15 kHz low-pass filter on f.m. 30 Hz to 50 kHz on a.m. De-emphasis Switchable to 0, 50 or 75µsec Level Nominally 0 dBm into 600 ohm when meter reads full-scale Comes as shown Satisfaction Guaranteed ! ------------------------------ My Promise to You: You are buying from a person that truly cares about your satisfaction. I stand by every sale, my word is my honor. I sleep good at night knowing I have treated everyone fairly and honestly. I enjoy bringing a smile to peoples faces. I make my living here and am grateful for your patronage. Thank you for enabling an old retired guy to make a living. Kent Payments should be received within 3 calendar days from the auction end date. If you need longer, contact me so I can note it, I am patient. I accept Visa/Mastercard and Paypal. Walk-ins are welcome and no shipping charged when done so. I keep a pot of coffee on for such. If you are not a "Verified" Paypal person (or use an eCheck), understand I will not receive money for about 3 days. I will not ship until Paypal says "cleared" on my end. "Verified" Paypal customers are credited instantly. I ACCEPT VISA / Master Card call me at 775-232-7288 for instant processing International bidders may incur local custom's fees that were not paid on this Ebay sale. Items shipped via FEDEX when possible Large items are shipped via palleted truck freight Please email me your phone number if it is not in your ebay form. This is needed by the shipper to prevent delivery problems. All rates are Ground rates unless specified otherwise Shipping rates are to the 48 contiguous United States Only. Military addresses and destinations outside the 48 states may incur higher shipping. I need a physical shipping address. Fedex will not ship to a PO Box. If you are buying multiples, dont pay until you are done purchasing. Then email me you are done. I will try to combine shipping and give you a cheaper total. Some things are delicate or large and cant be combined, but most can. If I see a single paid item I go into ship-mode and process quickly and I may not spot your other item without your telling me. Most are processed same day. Sometimes 2 (weekends and such). Let me know if it needs expedited and we will work something out on cost. Ebay charges me a fee, instantly, for every listing once sold. After 7 days, if I do not receive payment, a "non payer" alert is sent. This is done only in effort to reclaim the fee that was charged me. If you have won an item by accident, please contact me immediately and I can file a "mutually agree not to transact". This allows me to relist and get my fees back from Ebay. If you cant pay, I understand...contact me ! I will negate the ad at no cost! If you made a mistake on buying...its okay...contact me. The customer is responsible for return shipping. Once a refund is approved, your credit will be issued. The unit must be returned in the condition that it left my warehouse, including all parts and manuals included in the item Ad & any serial numbers must match with my records. Take care, I hope all your Ebay experiences are wonderful ! Hello, I am Kent and I operate West Tech. I am a retired country gent. I run this warehouse by myself. I procure, ascertain, test, list, inventory and ship all my items. My specialty is medical/technical (and of late collectibles). I can ship anything, any where in the world, but I do make mistakes. My biz requires an extreme amount of efficiency to find time. Out of 100 items, I promise, I WILL make a mistake. I may transpose a model number, I may say almond when I meant to say white, I may even have put up the wrong picture. But I am an old-school guy and run an honest business. I make things right. If you have any problems with your item, please contact me. I will resolve any reasonable issues. To my customers (and repeat customers), Thank You, I value your business. Help me to give you the BEST service you will find anywhere in the world! I sincerely thank you for your business! Kent West Tech Inc 775-232-7288 The following is for Ebays requirements. This item DOES NOT require any medical certification to buy: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." Thank You for bidding on this auction! Please remember to leave good feedback AND good DSR "Star" ratings and I will do so for you as well. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. On Jan-30-14 at 21:39:46 PST, seller added the following information:

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Marconi
Country/Region of Manufacture	United States
