Max232 Max3232 Rs232 To Ttl Converter Cable 3.3v-5v Ideal For Raspberry Pi

GBP 6.20

West Midlands, United Kingdom
Apr 26th

Open on mobile:
QR code

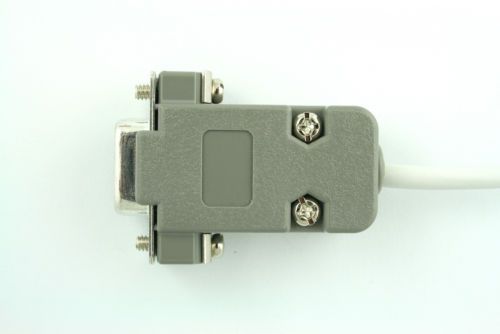

RS232 to TTL Converter Cable For use on 3.3v and 5v circuits +6 pin male/female headers Fully built and tested Ideal for the Raspberry Pi board as that is also a 3.3volt device Postage-- UK?0.95 EU/Europe ?3.50 Based on ST micro ST3232EC chip (genuine part) 3 to 5.5Volt supply Approx 30cm screened lead (screen connected to DB9 shell) for better signal integrity. Built into standard DB9 hood. Pcb size only 17mmX16mm Rx,Tx,RTS,CTS,Vcc, Gnd connections Rx-Yellow Tx-Blue RTS-Green CTS-White VCC-Red GND-Black You can use just the Rx ,Tx connections only or Rx,Tx,RTS,CTS. Some applications only require Rx,Tx NOTE:- Rx and Tx on this lead means the connection on the target board. Sometimes the target board may be labelled this way too. If it does not work one way then reverse the connections and try again. Please check diagram. You will need to supply 3volt to 5.5volt DC to the Red and Black wires, this can come from the Target board or some external source. You can also use a battery Also connect the Black wire GND to the Target board GND This lead will plug straight into the back of your PC or Laptop. This lead has a Female 9pin D-sub connector The 9pin D-sub connector on you PC/Laptop will be Male. This cable has also been successfully used by buyers to de-brick Seagate Hard drives. ? ESD protection for RS-232 I/O pins ? ±15 kV human body model ? ±8 kV IEC 1000-4-2 contact discharge ? 300 ?A supply current ? 250 kbps minimum guaranteed data rate ? 6 V/?s minimum guaranteed slew rate ? Meet EIA/TIA-232 specifications down to 3 V You can solder on the male or female header in the order you require. Male header is ideal for use on breadboard Cable is supplied with printed schematic Datasheet for ST3232EC-- http://www.st.com/st-web-ui/static/active/en/resource/technical/document/datasheet/CD00002950.pdf What you will get:- Fully built tested lead + 1x 6 pin male 1x 6pin female header-- as shown in main picture and printed schematic+instructions. Spare parts available for purchase just in case you should require any. I offer combined postage, after purchase do not pay but request 'Total' for updated invoice. I post monday to friday exept national holidays. Raspberry Pi is a trademark of the raspberry pi foundation, raspberrypi.org
