Mcln 20 X 125mm Left Hand Indexable External Turning Toolholder For Cnmg Insert

US $27.99

???, ???, China
Jan 30th

Open on mobile:
QR code

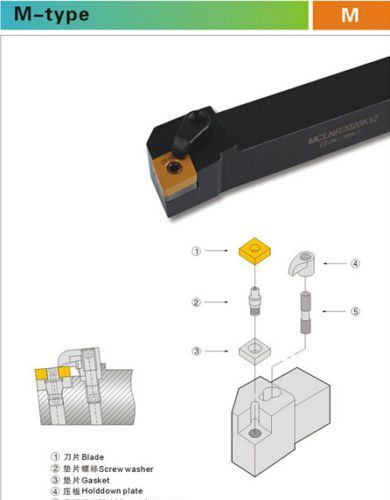

Model# MCLNR2020K12 Shank Size Square: 20mm Overall Length: 125m Direction:left hand Product application For Contouring, Turning & Facing Product features Negative rake Negative 5 degree cutting edge angle Accepts these square insert: CNMA, CNMG, CNMM, Package Content; 1 x MCLNL2020K12 Left hand Toolholder 2 x L Wrench We also have high performance carbide insert: Insert Description: Insert Grade: YBC251 Material: Carbide Coating: CVD Tin Al2O3 TICN Machining Parts Material: Steel Alloy Machining Process: semi-finish/mediu Insert I.C:12.7mm( 1/2"), T: 4.76mm(3/16") Radius:0.4mm (1/64") Product application Material Group Material Type Examples ISO Code Cutting Application Steels & Alloy alloy steels, tool and die steels, ferritic/martensitic steels 1020, 1050, 4140, 4340, 8620, P20 P10 - P35 semi-finish/Medium Stainless Steel Ferritic/Martensitic, Austenitic, Austenitic/Ferritic (duplex) 301, 303, 304, 304L, 316L M20 - M35 semi-finish Steel Alloy Optimal (Min - Max) Cutting Speed Vc (SFM) 1049 (853 - 1312) Feed Rate (inch/rev) 0.009 (0.004 - 0.019) Depth of Cut (inch) 0.078 (0.019 - 0.118) Stainless Steel Cutting Speed Vc (SFM) 590 (393 - 853) Feed Rate (inch/rev) 0.009 (0.004 - 0.019) Depth of Cut (inch) 0.078 (0.019 - 0.118) Product features YBC251 Coating Grade Tin Al2O3 TiCN Carbide Substrate Surface with Tin coating to reduce friction and easily identify worn out spot Special structure Al2O3 layer forming a thermal barrier to protect insert from Anti-plastic deformation during high speed try cutting TiCN layer has high wear resistance characteristic Carbide substrate form by special crystal structure to increase the rigidness of the core base and thermal stability at high temperature YBC251 consist of tenacious carbide substrate with strong cutting edge and optimal layers of MT-TiCN, thick layer of Al2O3, Tin Coating. It's suitable for general purpose on wide range of material: finishing, semi-finishing and light roughing of steel, cast steel and stainless steel. Notice: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand. Make sure you don't mind before you bid.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer	Hypo
Brand	hypo
Country/Region of Manufacture	China
Model	MCLNL 2020K12 20 x 125mm
