Mcln 20x200l 95° Internal Turning Tool Indexable Boring Bar For Cnmg Insert

US $29.90

???, ???, China
Jan 30th

Open on mobile:
QR code

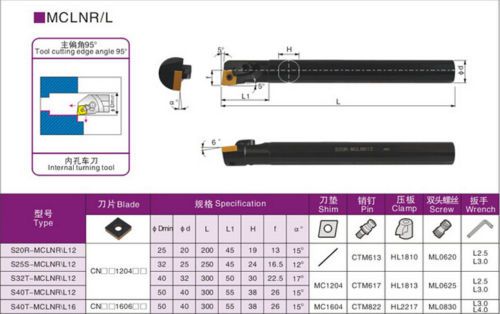

Product description Shank D: 20 (0.79") Shank L: 200mm (8") Direction:RH Lead angle:95° Insert: CNMG 1204 (431 432 433) INSERT NOT INCLUDED Product features Negative 5 degree end or side cutting edge angle for 80 degree CNMG insert We also offer high performance carbide inserts: Insert Grade: YBC251 Chip Breaker: PM Material: Carbide Coating: CVD Tin Al2O3 TICN Machining Parts Material: Steel Alloy Machining Process: semi-finish/medium Product application Material Group Material Type Examples ISO Code Cutting Application Steels & Alloy alloy steels, tool and die steels, ferritic/martensitic steels 1020, 1050, 4140, 4340, 8620, P20 P10 - P35 semi-finish/Medium Stainless Steel Ferritic/Martensitic, Austenitic, Austenitic/Ferritic (duplex) 301, 303, 304, 304L, 316L M20 - M35 semi-finish Steel Alloy Optimal (Min - Max) Cutting Speed Vc (SFM) 1049 (853 - 1312) Feed Rate (inch/rev) 0.009 (0.004 - 0.019) Depth of Cut (inch) 0.078 (0.019 - 0.118) Stainless Steel Cutting Speed Vc (SFM) 590 (393 - 853) Feed Rate (inch/rev) 0.009 (0.004 - 0.019) Depth of Cut (inch) 0.078 (0.019 - 0.118) Product features YBC251 Coating Grade Tin Al2O3 TiCN Carbide Substrate Surface with Tin coating to reduce friction and easily identify worn out spot Special structure Al2O3 layer forming a thermal barrier to protect insert from Anti-plastic deformation during high speed try cutting TiCN layer has high wear resistance characteristic Carbide substrate form by special crystal structure to increase the rigidness of the core base and thermal stability at high temperature YBC251 consist of tenacious carbide substrate with strong cutting edge and optimal layers of MT-TiCN, thick layer of Al2O3, Tin Coating. It's suitable for general purpose on wide range of material: finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer	hypo
Brand	hypo
Country/Region of Manufacture	China
Model	S20R-MNLNR12
