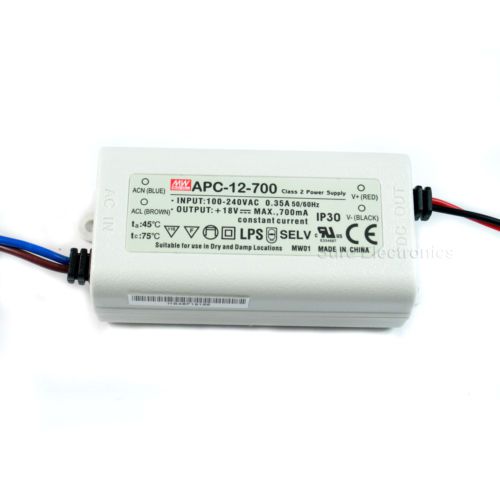

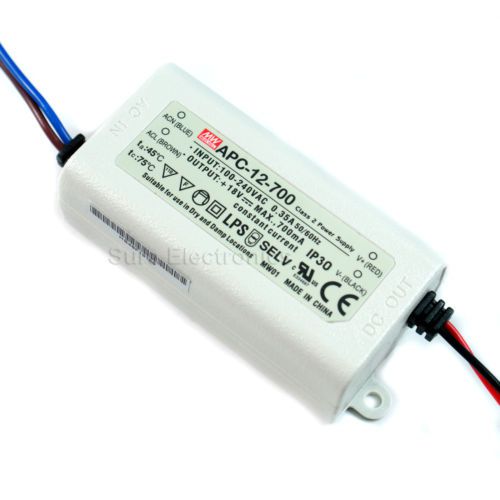

Mean Well Mw 9~18v 700ma 12w Ac/dc Led Driver Apc-12-700 Tuv Brand New

US $680

Hefei, ???, China
Jan 29th

Open on mobile:
QR code

[zipedit] Our-Store Home Page About Us Contact Us Add to Favourate Payment Shipping Return Payment Why Us Subscribe NewsLetter Add our store in to your favourites and recieve our exclusive emails about new items and special promotions Subscribe Product Overview Description 9~18V 700mA 12W AC/DC LED Driver(PS-SP11162) Note: The specs of MeanWell unit which you will receive is in line with the introduction. Pictures on the webpage are just for reference. Features: Net Weight:220g /7.8oz Constant current mode power supply Universal AC input / Full range Protections:Short circuit / Overload / Over voltage Fully isolated plastic case Small and compact size Cooling by free air convection Pass LPS 100% full load burn-in test Suitable for LED lighting and moving sign applications Low cost, high reliability 2 years warranty Specification: Specifications Value AC input voltage range 90~264VAC AC inrush current Cold start, 70A at 230VAC Overload protection ±5% rated output current Over voltage protection 110%~135% Withstand voltage I/P - O/P: 3KVAC Working temperature -30~+70oC (refer to output derating curve) Safety standards Design refer to TUV EN60950-1, EN61347-2-13, UL8750 EMC standards Compliance to EN55022 (CISPR22) Class B,EN55015,EN61547,EN61000-3-2 Class A,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level(surge 2KV), criteria A Connection Input :UL rated,18AWGx2C (15cm) Output:UL rated ,20AWGx2C (15cm) Dimension 77 x 40 x 29 mm Package content: LED Driver x 1 Documents: For EM certificate, click here. Note: The item might be a little different from what you've seen on webpage since the they might be from different batch. However, it won't affect your use. Sure Electronics assumes no liability for any ambiguity caused by the product photos. We also provide other Mean Well Power Supply/LED Driver, links are below: Model Custom Label Link LPH-18-12 PS-SP11333 MW Mean Well LPH-18-12 LED Driver 18W 12V IP67 Power Supply Water & Dust-proof LPH-18-24 PS-SP11334 MW Mean Well LPH-18-24 LED Driver 18W 24V IP67 Power Supply Water & Dust-proof LPH-18-36 PS-SP11335 MW Mean Well LPH-18-36 LED Driver 18W 36V IP67 Power Supply Water & Dust-proof LPV-20-5 PS-SP11336 MW Mean Well LPV-20-5 LED Driver 15W 5V IP67 Power Supply Waterproof LPV-20-12 PS-SP11337 MW Mean Well LPV-20-12 LED Driver 20W 12V IP67 Power Supply Waterproof LPV-20-15 PS-SP11338 MW Mean Well LPV-20-15 LED Driver 20W 15V IP67 Power Supply Waterproof LPV-20-24 PS-SP11339 MW Mean Well LPV-20-24 LED Driver 20.2W 24V IP67 Power Supply Waterproof LPV-35-5 PS-SP11341 MW Mean Well LPV-35-5 LED Driver 30W 5V IP67 Power Supply Waterproof LPV-35-12 PS-SP11342 MW Mean Well LPV-35-12 LED Driver 36W 12V IP67 Power Supply Waterproof LPV-35-15 PS-SP11343 MW Mean Well LPV-35-15 LED Driver 36W 15V IP67 Power Supply Waterproof LPV-35-24 PS-SP11344 MW Mean Well LPV-35-24 LED Driver 36W 24V IP67 Power Supply Waterproof LPV-35-36 PS-SP11345 MW Mean Well LPV-35-36 LED Driver 36W 36V IP67 Power Supply Waterproof LPV-60-5 PS-SP11346 MW Mean Well LPV-60-5 LED Driver 40W 5V IP67 Power Supply Waterproof LPV-100-12 PS-SP11347 MW Mean Well LPV-100-12 LED Driver 102W 12V IP67 Power Supply Waterproof LPV-100-24 PS-SP11348 MW Mean Well LPV-100-24 LED Driver 100.8W 24V IP67 Power Supply Waterproof CLG-100-12 PS-SP11349 MW Mean Well CLG-100-12 LED Driver 60W 12V IP67 Power Supply Waterproof CLG-100-36 PS-SP11351 MW Mean Well CLG-100-36 LED Driver 95.4W 36V IP67 Power Supply Waterproof CLG-150-12A PS-SP11352 MW Mean Well CLG-150-12A LED Driver 132W 12V IP67 Power Supply Waterproof CLG-150-48A PS-SP11353 MW Mean Well CLG-150-48A LED Driver 153.6W 48V IP67 Power Supply Waterproof Payment Shipping 100% Success Refund & Return Home Page About Us Contact Us Add to Favourate Payment Shipping Return Designed By XDiom Graphics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Mean Well
Model	APC-12-700
