Mega328 Transistor Tester Diode Triode Capacitance Esr Meter Mos/pnp/npn L/c/r

US $800

Shen Zhen, China
Jan 29th

Open on mobile:
QR code

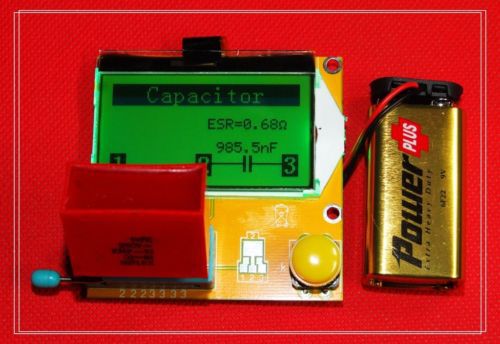

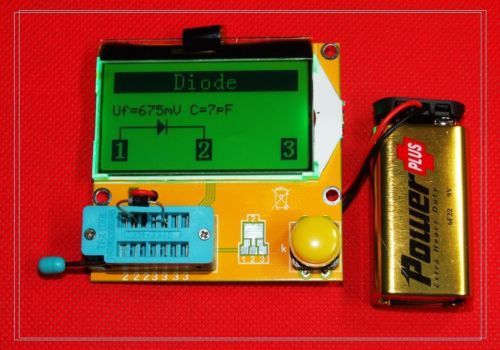

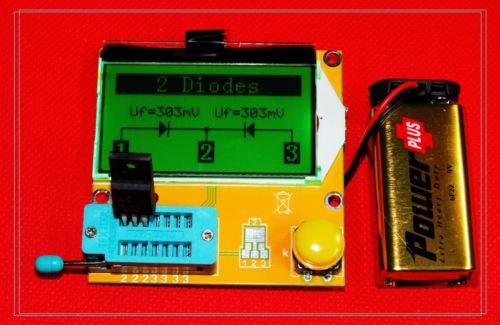

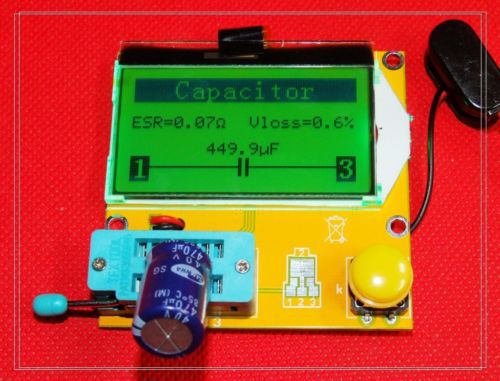

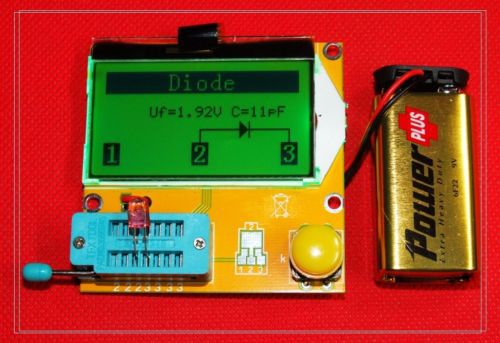

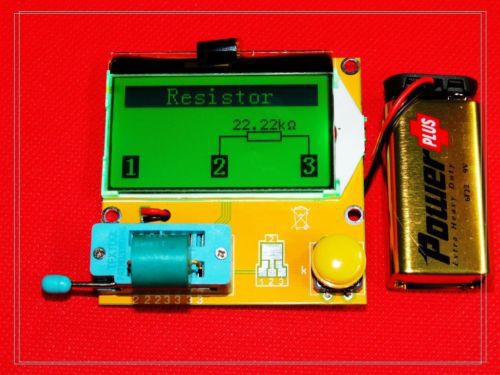

Mega328 Transistor Tester Diode Triode Capacitance ESR Meter MOS/PNP/NPN L/C/R Mega328 Transistor Tester Diode Triode Capacitance ESR Meter MOS/PNP/NPN L/C/R Product Description NEW 12864 LCD Transistor Tester Diode Triode Capacitance ESR resistance Meter MOS PNP NPN Description: 1,2013 latest M328 version of the software ,more functions.Chip: Atmega328 2.128*64 big Backlight LCD display,only 2mA when stand by. 3,Using 9V battery (Not inlcuded) Test ranges: Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR, Resistance,Adjustable potentiometer Resistance :0.1 ohm resolution, maximum 50M ohm Capacitor :25pf -100,000 uf Inductors : 0.01mh-20H NEW Function: 1:Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components 2: Automatic test the pin of a component, and display on the LCD 3:Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage 4: Measure the gate and gate capacitance of the MOSFET threshold voltage 5:Use 12864 liquid crystal display with green backlight Specifications: For you reference 1,One -button operation, automatic shutdown . 2,Only 20nA shutdown current. 3,Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor. 4,Automatic identification components pin arrangement . 5,Measuring bipolar transistor current amplification factor and base - emitter threshold voltage. 6,Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors. 7,Can detect bipolar transistors and MOS transistors protection diodes. 8,Measuring the gate MOS FET threshold voltage and the gate capacitance. 9,Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4 . Resistance symbol on both sides shows the pin number. So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin. 10,Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured . 11,Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF. 12.2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms. 13,Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage. 14.LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes. 15,Eeverse breakdown voltage is less than 4.5V Zener diode can be identified. 16,Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin , it can measure the collector or emitter junction reverse capacitance . 18 can be obtained with a single measurement rectifier bridge connection. Notice: Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter . Test pic Our Working Time is as below (GMT+8): 9:30AM -- 6:00PM (Monday to Friday) Please allow us at least 24 hours to reply you when in the office, thanks! Shipping If you intend to bid for more than 1 item, then we can ship them together. The total shipping fee will be the sum of individual shipping fees. There is no further discount. We only ship to ebay registered address. So please be assure your address in ebay is Correct and Valid. Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. Delivery time depends on destination and other factors, it may takes up to 30 business days. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding! We ship item promptly and please rate us 5 star on shipping time according to ebay rules. http://pages.ebay.com/help/feedback/detailed-seller-ratings.html Feedback The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding! If you are considering giving a neutral or negative or a low DSR(4 star or below), do write to us and give us an opportunity to address your concerns first. We are always stand-by to help for any questions or concerns. Positive feedback is automatically left for you after you left to us positive feedback. Return Returns: We stand behind every product we sell. If you're not pleased with your purchase, please kindly contact our customer service representatives via email or ebay "Contact seller" for an authorized RMA number. Your returned product(s) will not be processed without a RMA. Buyer is responsible for return costs. Payment PayPal payment only. Any VAT or TAX are not counted. If buyer required to cancel bid for their mistake or any other personal reasons, 5% of the total price is charged for relisting and restocking fee. We didn't ship to Africa, Italy, China,HongKong, Macau,Taiwan due to cross-border express delivery and customs issue ,pls understand and pay your attention to it before bidding or buying. inkfrog terapeak i000000 On Sep-21-14 at 18:19:19 PDT, seller added the following information:
