Mettler Electronics Sonicator 730 Ultrasound

US $975.00

La Mesa, California, United States
Jun 9th

Open on mobile:
QR code

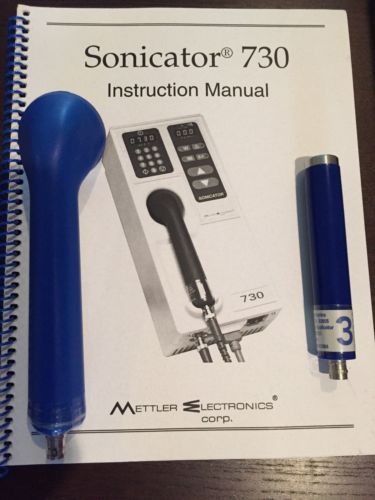

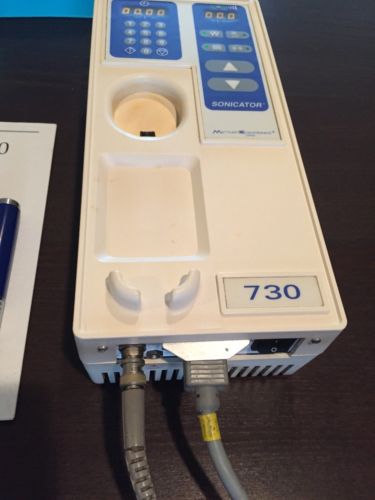

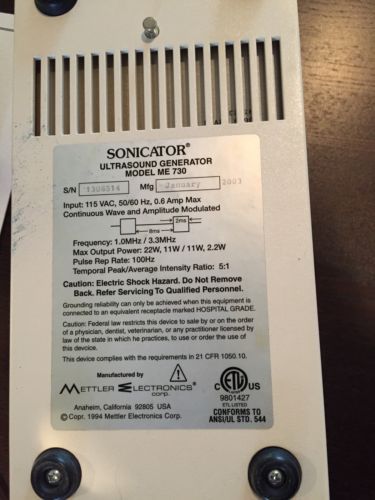

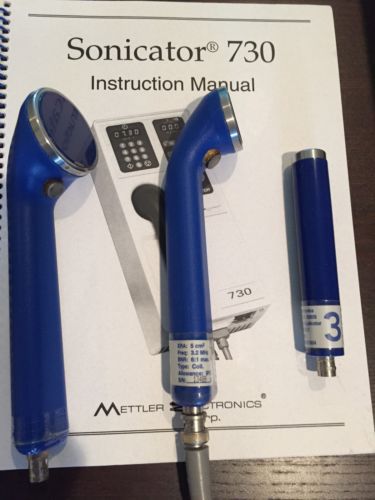

This unit was used by my late father in his chiropractic practice. Unit works perfectly. Comes with everything you see in the picture. Retail price is $2199 Here is some info I was able to find on this unit: Product Description The Sonicator 730 is a 1 and 3 MHz therapeutic ultrasound unit which comes with your choice of 3 applicators. It is light-weight and portable and features a universal applicator cable to make changing applicators quick and easy. You may choose from the following applicators, The Sonicator 730 is the one ultrasound that appeals to clinicians everywhere. With four interchangeable applicators in 1 and 3 MHz frequencies, it provides the flexibility to perform virtually any ultrasound therapy. What’s more, the 730 is built to meet all international safety standards, making it a true world class performer. The Sonicator 730 features self-tuning circuitry that automatically senses the correct transducer size, frequency, and characteristics. No user adjustment required. Just enter the treatment parameters and begin. Comes with 3 applicators. 1cm2/3.3 MHz, 5cm2/3.3 MHz and 10cm2/1 MHz, 5cm2/1 MHz also available. 2 year warranty on machine; 1 year on soundheads. ME 7310, 10cm2 /1 MHz; ME 7305, 5 cm2 /1 MHz; ME 7335, Scm2! 3.3 MHz; and ME 7331, 1 cm2 /3.3 MHz. Weight: 5.1 pounds (2.3kg.) Dimensions: 4.3 in (1-I) x 6 in (D) x 13.4 in (L) (11cm (H) x 15 cm (D) x 34 cm (L)) Sonicator® 730 Specifications 1.1 General Specifications: Input: 115 VAC (±10%), 50/60 Hz, 0.6 amperes maximum Certification: The Sonicator 730 complies with the ultrasoundperformance standards set forth in the Code of FederalRegulations, Title 21 (Food and Drugs), Part 1050.10 ETL and C-ETL Listed: Model ME 730 (9801427) U.S. Patent Numbers: 4,966,131 and 5,095,890 Treatment Timer Indicator: The digital timer indicates time set in minutes and seconds prior to the start of treatment and treatment time remaining during treatment or when treatment is temporarily suspended. Accuracy: ±0.5 minutes for times less than 5 minutes ±10% for times from 5 to 10 minutes ±1.0 minute for times greater that 10 minutes Maximum treatment time: 29 minutes Size: 4.3 in (H) x 6 in (D) x 13.4 in (L) Weight: 5.1 pounds Operating Temperature: +50°F to +131°F Humidity: Operating, 30% to 75% Relative Humidity at 104°F Nonoperating, up to 90% Relative Humidity at 149°F Storage Temperature: -40°F to 167°F 1.2 Ultrasonic Generator Specifications: Frequency: 1.0 MHz ±10% 3.3 MHz ±10% Modes: Continuous Pulsed—20% Duty cycle Pulse Repetition Rate: 100 Hz ±20% Pulse Duration: 2 msec ±20% Temporal Peak/ average intensity ratio: 5:1 ±20% Maximum output power: 22 W with a 10 cm? applicator, (ME 7310) 11 W at with either 5 cm? applicator, (ME 7305 and ME 7335) 2.2 W with a 1 cm? applicator (ME 7331) Maximum intensity: 2.2 W/cm? with all applicators Mettler Electronics Corp. 2 Indication accuracy: ±20% (for any level above 10% of maximum) Output description: The output waveform is continuous or pulsed as programmed by the membrane panel control. In the pulse mode the 1 or 3.3 MHz square wave pulses are modulated. The power level is adjusted by varying the pulse amplitude. The pulse waveform is shown below: Time Output 1 or 3.3 MHz Ultrasound Pulse Width 2 ms Pulse Space 10 ms Pulsed Waveform In the continuous mode, the power is on at least 95% of the time the timer is running. The continuous mode waveform is shown below: Time Output 1 or 3.3 MHz Ultrasound Continuous Waveform 1.3 Ultrasonic Applicator Specifications: Piezoelectric discs: The output transducer utilizes a barium titanate disc with a specially coated face. Individual Applicator Specifications: Applicator Part Number Frequency Effective Radiating Area ME 7305 1 MHz ±10% 5 cm? ±20% ME 7310 1 MHz ±10% 10 cm?±20% ME 7331 3.3 MHz ±10% 1 cm? ±20% ME 7335 3.3 MHz ±10% 5 cm? ±20% Maximum Beam Non–Uniformity Ratio: 6:1 Sonicator 730 Specifications 3 Spatial Pattern: The applicator produces a collimated (cylindrical) beam with an area of 1, 5 or 10 cm?, measured 5 mm from the ceramic disc surface when the radiation is emitted into the equivalent of an infinite medium of distilled, degassed water at 30° C, and with line voltage variations in the range of ±10% of the rated value. The beam of the applicator is circular in all planes parallel to the applicator face. A few inches from the face, it is a single smooth bell-shaped curve. Nearer the face the pattern varies more due to phase cancellations. Sample curves measured in the far field from the surface are shown in following figures. 10 cm? Applicator (1 MHz), ME 7310,—Three Dimensional Beam Pattern 5 cm? Applicator (1 MHz), ME 7305,—Three Dimensional Beam Pattern Mettler Electronics Corp. 4 5 cm? Applicator (3.3 MHz), ME 7335,—Three Dimensional Beam Pattern 1 cm? Applicator (3.3 MHz), ME 7331,—Three Dimensional Beam Pattern

“Used but in perfect working condition”

Brand

Mettler
