Micro Storage Board Mciro Sd Tf Card Memory Shield Spi For Arduino Module

US $1.35

???, ???, China
Jan 29th

Open on mobile:
QR code

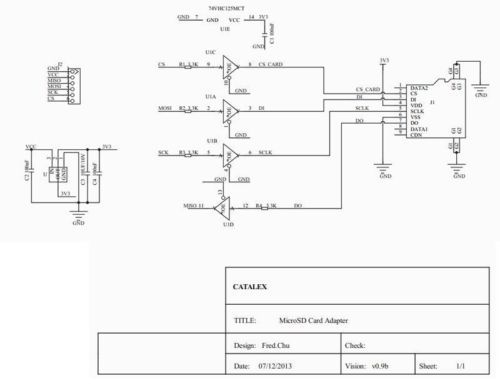

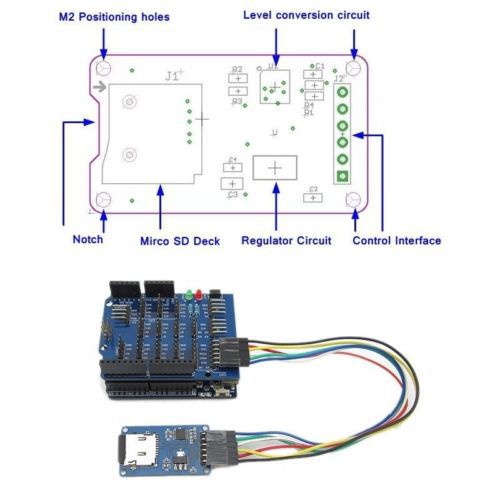

Micro SD Storage Board Mciro SD TF Card Memory Shield SPI For Arduino Module Description: 100% brand new and high quality The module (MicroSD Card Adapter) is a Micro SD card reader module, and the SPI interface via the file system driver, microcontroller system to complete the Micro SD card read and write files. Users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write Features: Support Micro SD Card, Micro SDHC card (high-speed card) The level conversion circuit board that can interface level is 5V or 3.3V Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board Communication interface is a standard SPI interface 4 M2 screw positioning holes for easy installation Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin; 3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal Micro SD card connector: yes since the bomb deck for easy card insertion and removal Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, the module is easy to install positioning, to achieve inter-module combination Mirco SD Card Interface Module :(the last picture show) -Control Interface : A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground , VCC is the power supply , MISO, MOSI, SCK is SPI bus , CS is the chip select signal pin 3.3V voltage regulator circuit : LDO regulator output is 3.3V level converter chip , Micro SD card supply Level conversion circuit : Micro SD card into the direction of the signal is converted to 3.3V, MicroSD card interfaces to control the direction of the MISO signal is also converted into 3.3V, general AVR microcontroller system can read the signal ; Micro SD card connector : a self- bomb deck , easy card insertion . Positioning holes : 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install , to achieve inter- module combination ; Download Package includes: Micor SD TF Card Shield Expansion Board for Arduino DIY x 1 Dear buyers: Welcome to our store,Thanks! We try our best to provide you high quality and good service.Your satisfy is our aim. If you are satisfy with us,pleae leave five star positive feeback,and welcome to our store again,we will supply the good items and service all the time. If you are not 100% satisfied,Please don't leave a neutral or negative but contact us First, we will do our best to solve for you. Best Regards Shipping: We Ship to Worldwide, but Italy, Nigeria, Brazil will take long delivery time . Before buying, Please make sure your address is correct. Or not, please correct it before payment Ship to worldwide from Hong Kong within 12-24 hours after payment completed received, and will give you the tracking number asap. sometimes we will send it by flat post air mail if just one low price order.Hope you understand. we advise shipping by DHL or EMS,and we have gave a discount for you,you can received it in 4-9 business days. it takes about 15-30days usually if shipping by CHina/Hong Kong post air mail Warranty and return: 12-months Warranty for defective items (excluding items damaged and/or misused after receipt). Refund or replacement request is available only the requests within 1 week after parcel received & returning the item as the same condition as received. Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials. Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable. Return shipping is to be paid by the Buyer. Contact us: We have much more products, if you need or have any question ,please contact us by leaving message or use Ali Trade manager .Welcome to wholesale. Thank you so much!
