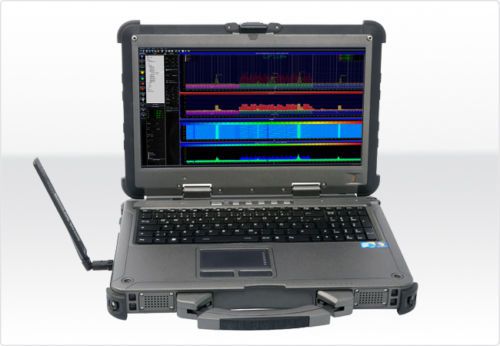

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 0

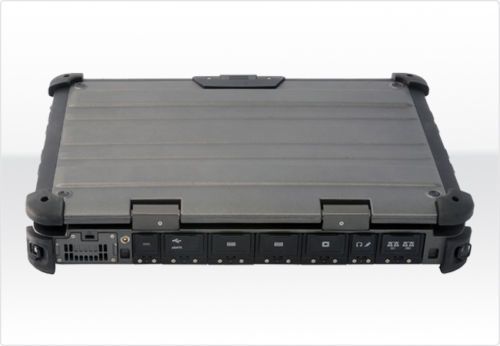

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 1

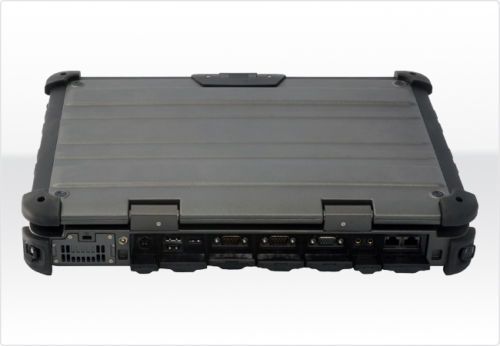

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 2

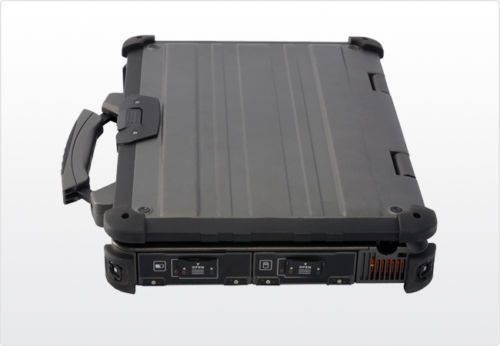

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 3

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 4

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 5

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 6

Military Outdoor RF Spectrum Analyzer 1MHz - 9.4GHz, US $19,998.00 – Picture 7

Military Outdoor Rf Spectrum Analyzer 1mhz - 9.4ghz

US $19,998.00

Auw, Germany
Jan 29th

Open on mobile:
QR code

Outdoor Spectrum Analyzer SPECTRAN HF XFR PRO 1MHz - 9,4GHz incl. Analyzer Software, LogPer and Omni Directional Antenna! Military Standard Spectrum Analyzer with extremely high sensitivity (DANL: -170dBm(1Hz)) Details see manufacturers website at aaronia.com Price includes worldwide EXPRESS shipping and 2 years warranty! Frequency range: 1MHz to 9,4GHz DANL: -170dBm(1Hz) Max. power: +20dBm (opt. +40dBm) Lowest sample time: 5mS Resolution (RBW): 200Hz to 50MHz EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz Units: dBm, dBµV, V/m, A/m, W/m? dBµV/m, W/cm? etc. Detectors: RMS, Min/Max Demodulator: AM, FM, PM, GSM Low noise Preamp: Integrated Input: 50 Ohm SMA RF-input (f) Accuracy: +/- 1dB (typ.) Dimensions (L/W/D): 257x353x56 mm Weight: 5kg Warranty: 2 years Highlights integrated Spectrum Analyzer: 14Bit Dual-ADC DDC Hardware-Filter 150 MIPS DSP (CPU) Vector (I/Q) measurement Real-time Peak Power Detector (option) Internal speaker Included HyperLOG 60100 EMC directional antenna Included OmniLOG 90200 radial isotropic antenna Highlights Outdoor Notebook: Ultra Rugged Outdoor Spectrum Analyzer (IP65, -20°C) with built-in notebook Extra-large 15.6 " widescreen display (Full HD, 1920x1080) with Multi-touch screen, sunlight readable (800 Nits QuadraClear) Processor: Intel i7- 620M (4M Cache, 2.66 GHz, 3.33 GHz max with Intel Turbo Boost Technology) with 8GB RAM Built-in GPS receiver0) Especially suitable for use even under the most difficult conditions HDD: 320GB SATA Certification robustness: MIL -STD- 810G, IP65, MIL -STD- 461F Temperature range: Operating -20 °C to +55 °C, Storage : -40 °C to +71 °C Included in delivery: HF-XFR PRO Outdoor Spectrum Analyzer MCS Spectrum Analysis Software (installed) HyperLOG 60100 EMC directional antenna (black) OmniLOG 90200 radial isotropic antenna Pistol grip with mini tripod function 1m SMA cable SMA tool Rechargeable battery (installed) Battery charger English manual (on CD) Aaronia AG, Gewerbegebiet Aaronia AG, DE-54597 Euscheid, Germany Tel. ++49(0)6556-93033, Fax ++49(0)6556-93034 Email:mail@aaronia.de URL:www.aaronia.com

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	SPECTRAN HF-XFR PRO
Manufacturer	Aaronia
Unit Type	Complete Systems & Mainframes
Brand	Spectran
Analyzer Type	Spectrum Analyzers
MPN	145-PRO
