Mlc500 Autoranging Lc Meter Up To 100h 100mf, 1% Accuracy + Smd Probes

US $58.99

default, default, Hong Kong
Jan 29th

Open on mobile:
QR code

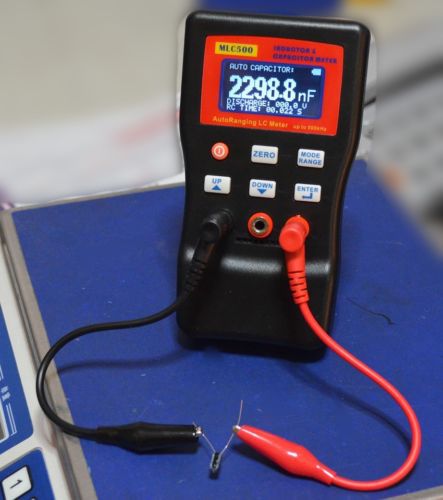

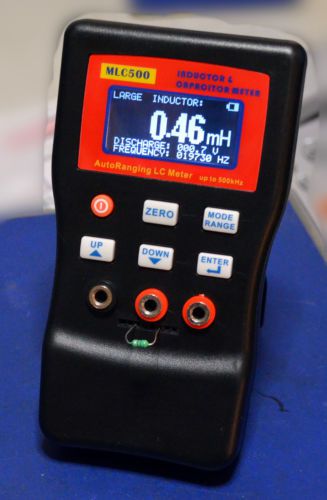

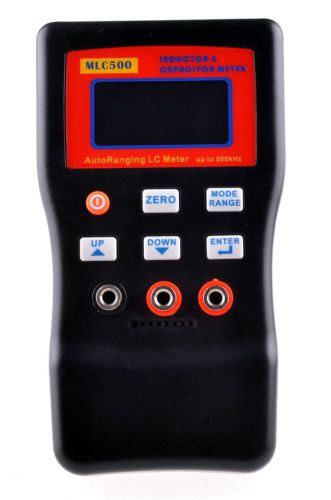

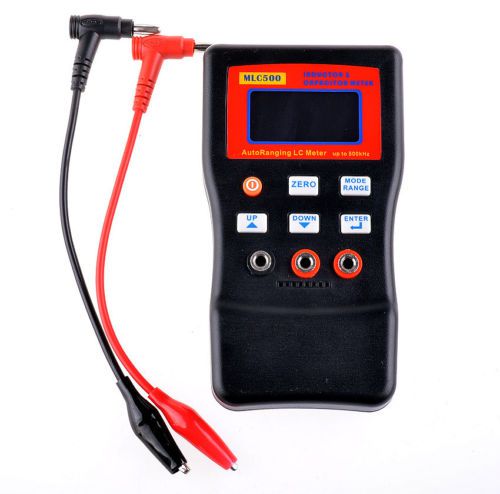

LCR MLC500 AutoRanging LCR Meter Up to 100H 100mF NEW RELEASE! MLC500 LC METER Download Manual: http://www.mib-tech.com/product_manual.html MLC500 LC METER Special Features: MLC500 LC meter is auto-ranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement. It provides very stable and high resolution measurement up to 5 digits. Meter can measure 0.00pF to 100.00mF capacitance and 0.000uH to 100.00H This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance. *Discharge Capacitor before Testing!! * Please don’t connect under testing device during power on, it will affect the initialization. Features: - Fully auto-ranging designed - High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH - High stability and measurement range for L/ C - Large LCD display with backlight - USB PC program, can take record and pass and fail component sorting function. - Capacitor discharge terminal and capacitor storage voltage display. Specification: Model: MLC500 LC Meter Series LCR Testing Parameter Main Parameter: L / C Testing frequency C: 10 to 500Khz L: 10 to 360Khz Testing Method Auto select LC and RC Oscillation Calibration Power on auto calibrate with internal reference capacitor Testing voltage ~1.5Vrms Best Tolerance L: 1% +1 Digit C: 1% +1 Digit LCD update or Testing time (* vary on component value) <3/s, (e.g. 100mF Capacitor <30s) Range Selection Automatically Zeroing Open / short circuit Terminal Mini-USB(Virtual Com Port) Display Range C 0.00pF ~100.000mF (pF/nF/uF/mF) L 0.000uH ~ 100.000H (uH/mH/H) Hz (LC Oscillation Frequency) 0 to 900000Hz (s) (RC Constant Time) 0.000 to 99.999 LCD Display 128X64 Dot Matrix, with backlight Fuse Protection No Battery 2XAA 1.5V battery Number of Testing Terminal Main 3, Secondary 2 Reading Display Max. 99999 Capacitor Scale Range Display Range Accuracy Testing Frequency/ RC Time Small 1000pF 0.00pF to 999.99pF 1%+1 500KHz to 360KHz 10nF 1000.0pF to 9999.9pF 1%+1 360Khz to 140KHz 100nF 10.000nF to 99.999nF 1%+1 140Khz to 50Khz <300nF Small 1000nF 100.00nF to 999.99nF 1%+1 30KHz / RC Time <0.2mS Large 10uF 1000.0nF to 9999.9nF 2%+1 RC Time <2mS 100uF 10.000uF to 99.999uF 2%+1 RC Time <0.02S 1000uF 100.00uF to 999.99uF 2%+1 RC Time <0.2S 10mF 1000.0uF to 9999.9uF 2%+1 RC Time <2s 100mF 10.000mF to 99.999mF 3%+1 RC Time <20s * Small Capacitor using LC oscillation mode * Large Capacitor using RC charging time constant measurement Inductor Scale Range Display Range Accuracy Testing Frequency/ RC Time Small 100uH 0.000uH to 99.999uH 1%+1 360KHz to 252KHz 1000uH 100.00uH to 999.99uH 1%+1 252KHz to 107KHz 10mH 1000.0uH to 9999.9uH 1%+1 107KHz to 35.4KHz 100mH 10.000mH to 99.999mH 1%+1 35.4KHz to 11.3KHz Large 1000mH 100.00mH to 999.99mH 2%+1 500Hz to 159Hz 10H 1000.0mH to 9999.99mH 2%+1 159Hz to 50Hz 100H 10.000H to 99.999H 3%+1 50Hz to 16Hz * Inductance reading is frequency dependence, especially large parasitic capacitor type inductor, and also different in Q meter or impedance meter INCLUDE: 1) 1 pcs MLC500 2) 1 set Manual 3) 1 pair 15cm alligator clip test leads (as photo) 4)1 pcs SMD probe (as photo) 5) Download labview software: http://www.mib-tech.com/product_manual.html Payment Shipping We accept Paypal, credit card through Paypal. Buyer may need to pay for import tax depend on your country's custom. You can ask us for more detail. We ship to most countries by general airmail Items are shipped within 5 business day after receive payment. or we will send email to confirm shipment arrangement. An additional USD2 for insurance Most item will arrive within 8-14 business days. It depend on your location. In some case, ship to some countries will take over 3 weeks, especially brazil, Italy and France . MIB-INSTRUMENTS On Aug-12-14 at 02:31:55 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	MiB Instruments
Country of Manufacture	HONG KONG
Model	MLC500
