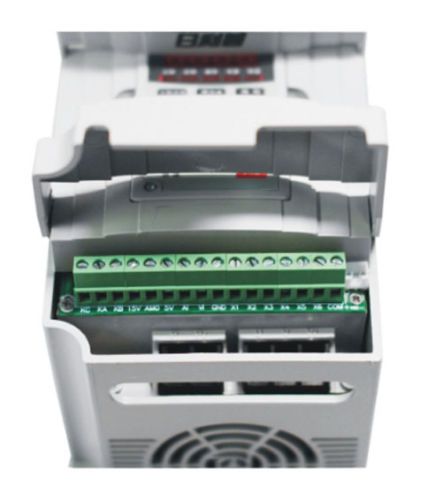

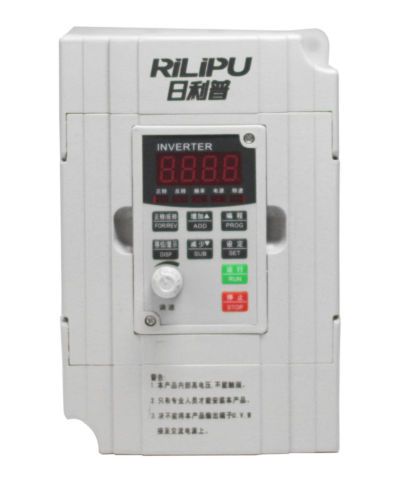

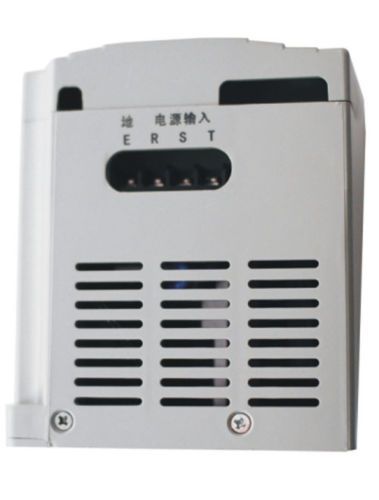

????? Multifunction Mini Inverter for Fan Water supply Engraving machine 1.5KW 380V Quick overview: This mini-series is a high performance drive, the power of 1.5KW, three-phase input 380V / 50HZ, output for the three-phase 380V / 0-400HZ, the output current is 4A. Input termination RST, the output UVW connected to motor, P Pr connect brake resistor (not necessarily to take a). This mini-series is widely used in: water pump to control the flow, Water Supply, engraving machine, printing machinery, packaging equipment, fan speed and other industries. Feature: 1, There are many-fold speed internal control can automatically control their own run at various speeds. 2, With PID control, but direct and remote pressure gauge, connection to constant pressure water supply, no other accessories. 3, With counter function can be counted after the automatic shutdown. 4, The keyboard and the machine can separate installation in control cabinets above, easy to use. 5, A strong input terminal, as needed, to achieve different control effects. 6, With 485, can and PLC, touch screen for communication, easy to control. 7, With automatic energy-saving operation function, compared with the common frequency control, run under the same frequency current is lower than general-purpose inverter control, and can automatically adjust voltage; when the grid voltage changes, can automatically maintain a constant output voltage. 8, Completely independent duct design, improve the anti-dust environment. 9, All plates with three anti-paint treatment process. 10, Complete protection. 11 .To large-scale control IC + IGBT as the core, high machine reliability. 12. With a variety of control methods to suit different occasions control requirements, maximum power up to 400KW. 13. The high torque, low speed can reach 150%. 14. The frequency resolution up 0.01HZ. 15. The adaptability of the line voltage fluctuations of up to ± 15%, especially for poor power quality national and regional communications make good interface, easy to compose centralized control system. 16. Built-in PID controller built-in simple PLC Parameter: Input Voltage/Frequency 380V/50HZ/60HZ Voltage range variation ±30% Output Frequency Range 0.10~400.00HZ Overload range 150% 1Min Frequency Control Control mode Space Vector Accuracy Digital: 0.01% Analog: 0.1% Setting resolution Digital: 0.01HZ; Analog: maximum operating frequency of 0.1% Output resolution 0.01HZ Frequency setting mode Keyboard,0~5V,0-10V,4-20mA,0-20MA Other features Frequency / low limit, start frequency, stop frequency, three skip frequencies can be set Control Feature Acceleration and deceleration control 4 segment deceleration time (0.1-6500 seconds) arbitrary choice V / F curve V / F curve can be set Torque Control You can set the torque increase, up to 10% up to 150% starting torque when 1.0HZ Multi-function input terminal 6 multifunctional inputs to achieve 8-speed control, the program runs, four segments back-speed switching, UP, DOWN function, counter, external emergency stop and other functions Multi-function output terminal There are five multi-function output terminals, to achieve operation, zero speed, counter, external abnormalities, such as the program is running and alarm indication Energy-saving control Automatic speed according to the load output voltage, the highest efficiency motors Ultra-quiet Carrier frequency up to 20KHZ PID Built-in PID function Simple PLC Controls can be composed of eight-speed running, running time, running arbitrary manner Communication port Standard RS485 interface Other features Automatic voltage regulator (AVR), deceleration stop, Coasting Stop, DC brake, automatic reset restart, frequency tracking, PLC program control, traverse control, the carrier is adjustable up to 20KHZ, drawing and other functions Monitoring functions Four digital display, display frequency, current, speed, DC high voltage, output voltage, the count value, temperature, reversing status, fault display Vibration 0.5G below Operating temperature -10-40°C Humidity Within the range of 0-95%, and non-condensing Protection Function Overload Relay protecting electronic motor drive (constant torque 150% / 1 minute, fan type 120% / 1 minute) fuse protection FUSE blown motor stops Overvoltage 220V class: DC voltage> 400V; 380V class: DC voltage> 800V Insufficient voltage 220V class: DC voltage <120V; 380V class: DC voltage <300V Instantaneous power failure restart You can stop the instantaneous frequency tracking mode after restart Stall prevention Acceleration / deceleration stall prevention operation Output short circuit Electronic Circuit Protection Other features Fin overheat protection, reverse limit, error recovery, parameter lock etc. Package Included: 1 x 1.5KW 380V Mini Inverter Contact Us: 1. We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback. 2. Please contact us by "Ask a question". Shipping Policy: 1. We Will ship your orders within 1-2 business days after the payment received. 2. Item shipped via Singapore Post or HongKong Post , It takes about 7-14 business days (USA,CA,AU,UK).others country 10-20 business days(Brzil,India,RU),Exact delivery time depends on postal process. 3. If you do not receive your item by 30 business days,Please feel free to contact us via ebay mail system , we will try our very best to resolve any problems with you Payment Method: 1.All payments must be prepaid. 2.We only accept payment via Paypal.Please kindly check if you can do the payment via paypal before placing an order. Returns&Warranty: 1. We offer 30 days money back guarantee return policy . 2. Our warranty does not extended to any products that are physically damaged or that are not under normal operating conditions as a result of misuse or improper installation on the buyer/user's part. 3. For all returned products, buyers MUST contact us for the returning address. 4. In all cases, buyers pay shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item.
